Weighing Room
Product overview
The weighing room, also known as negative pressure room, dispensing booth, sampling room, is a dedicated local decontamination unit that conforms to the latest version of GMP for the production of sterile formulation, widely used in pharmaceutical, biological research and scientific experiment etc.
Reasonable air distribution
It provides a vertical one-way air flow, 80%-90% of clean air is circulated in the work area, 10%-20 % discharge to generate negative pressure in the work area, prevent dust from overflowing, and prevent cross-contamination, which is used to ensure a high cleanliness environment in the work area.
Flexible air supply
Uniform air flow supply clean vertical unidirectional airflow, creat a virtuous circle of air recirculation, automatically controlled by the intelligent PLC system, constent keeping 0.45m/s air flow.
Good sealing
Weighing room provides a self-circulating negative pressure clean microenvironment and a negative pressure operating area without leakage. Effectively remove harmful dust or infectious virus from production or biological operations.
Advantages
Using PLC and touch screen control, intelligent and fast human computer interaction interface.
| Item | Weighting room / Negative pressure room / Dispensing room / Sampling room | |
|---|---|---|
| Model | WR-1 | WR-2 |
| Module size (W*L*Hmm) | 1300*1400*2500 | 2400*1900*2500 |
| Module size (W*L*Hmm) | 1200x800x2000 | 2300x1300x2000 |
| Air flow (m³/h) | 1550 | 4850 |
| Power (W) | 910 | 1820 |
| Average air velocity (m/s) | 0.45±20% | |
| Clean Class | Class A, ISO5 (Class 100) | |
| Noise dB (1m below HEPA filter) | <65 | |
| Illumination | ≥300 Lux | |
| HEPA Filter | G4+F8+H14 | |
| Control Method | PLC+HMI | |
| DP gauge | 3sets, for each filter | |
| DOP test ports | 1set for filter integrity test | |
| Accessories | Wind speed sensor, LED light, water proof sockets | |
| Power Supply | AC 380V | |
⚙️Optional Configuration
- Laminar flow membrane
- Temperature and humidity induction
- Alarm buzzer (for pressure difference,
- Operating table
- Solid wall door
- DP gauge for exhaust filter
- FAT / IQ / OQ / DQ

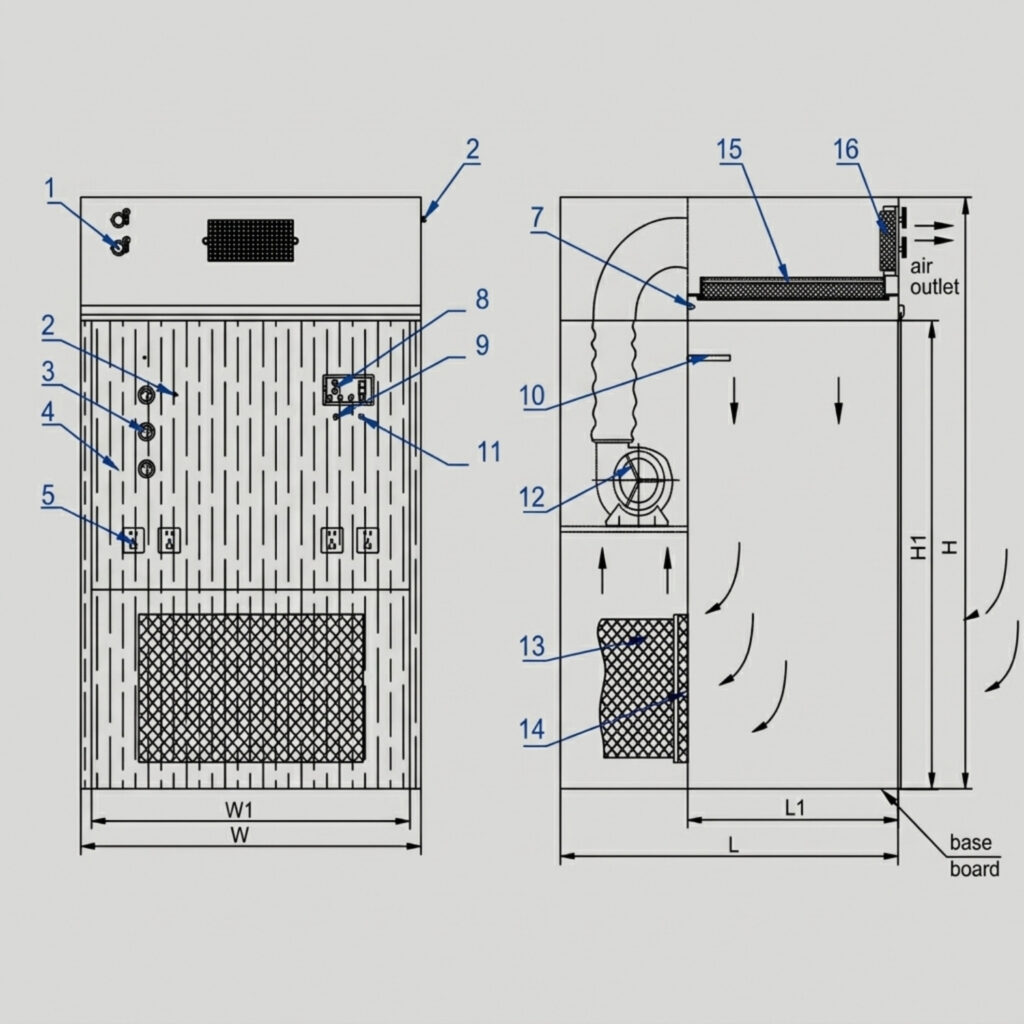

⚙️Parameter
- 1. PAO test port
- 2. Alarm buzzer
- 3. Differential pressure gauge
- 4. PVC strip curtain
- 5. Water proof socket
- 6. Power connector
- 7. LED lamp
- 8. PLC Touch screen control panel
- 9. Emergency stop switch
- 10. Wind speed sensor
- 11. LED lamp on/off switch
- 12. Blower
- 13. Medium efficiency filter
- 14. Washable Pre filter
- 15. Air supply HEPA filter
- 16. Air exhaust HEPA filter
