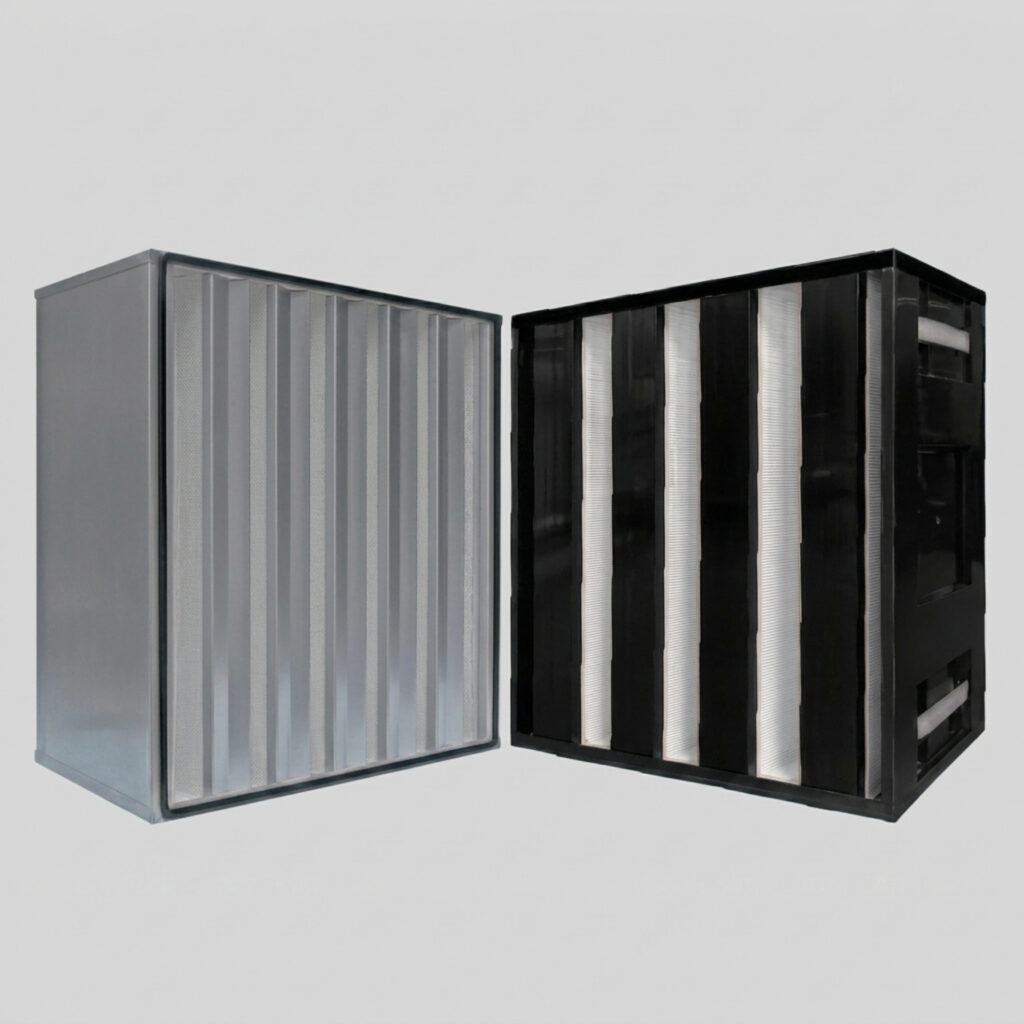

V-bank Filter

Adaptive Efficiency: E10, E11, E12, H13, H14, U15, U16, U17

Product Features

+44 7479 496191

Call

info@filtravo.com

Aviation, electronic, semiconductor, wafer, biological pharmaceutical, hospital, food processing, etc.

Media	Micro glass fiber
Frame	Sheet aluminum / Galvanized / Stainless steel / Plastic
Sealant	Two-component polyurethane glue
Gasket	PU foam gasket / EVA / EPDM
Separator	Hot melt bead
Optional aluminum frame thickness (mm)	220 292 305 440
Max. Temperature	70°C
Max. Humidity	100%

610*610*292-5V

* Customized design is available

Model	Size(inch) (WxHxD)	Size(mm) (HxWxD)	Air flow (m³/h)	Initial Pressure (≤Pa)	Media area (m²)	Velocity (m/s)	Filter grade (ISO16890)	Pack no.
KV-A-001	12×12×12	305×305×292	600	125	5.34	1.79	E10	2
KV-A-002	24×12×12	610×305×292	1200	125	10.68	1.79	E10	4
KV-A-003	24×20×12	610×508×292	2000	125	17.79	1.79	E10	4
KV-A-004	24×24×12	610×610×292	2400	125	21.36	1.79	E10	4
KV-A-005	24×24×12	610×610×292	2800	125	26.71	2.09	E10	5
KV-A-006	24×24×12	610×610×292	3200	125	29.48	2.39	E10	6
KV-A-007	12×12×12	305×305×292	800	300	7.37	2.39	H13	3
KV-A-008	24×12×12	610×305×292	1200	300	10.68	1.79	H13	4
KV-A-009	24×20×12	610×508×292	2000	300	17.79	1.79	H13	4
KV-A-010	24×24×12	610×610×292	1800	300	16.71	1.34	H13	3
KV-A-011	24×24×12	610×610×292	2400	300	21.36	1.79	H13	4
KV-A-012	24×24×12	610×610×292	2800	300	26.71	2.09	H13	5
KV-A-013	24×24×12	610×610×292	3200	300	29.48	2.39	H13	6
KV-A-014	12×12×12	305×305×292	800	330	7.37	2.39	H14	3
KV-A-015	24×12×12	610×305×292	1200	330	10.68	1.79	H14	4
KV-A-016	24×20×12	610×508×292	2000	330	17.79	1.79	H14	4
KV-A-017	24×24×12	610×610×292	1800	330	16.71	1.34	H14	3
KV-A-018	24×24×12	610×610×292	2400	330	21.36	1.79	H14	4
KV-A-019	24×24×12	610×610×292	2800	330	26.71	2.09	H14	5
KV-A-020	24×24×12	610×610×292	3200	330	29.48	2.39	H14	6
