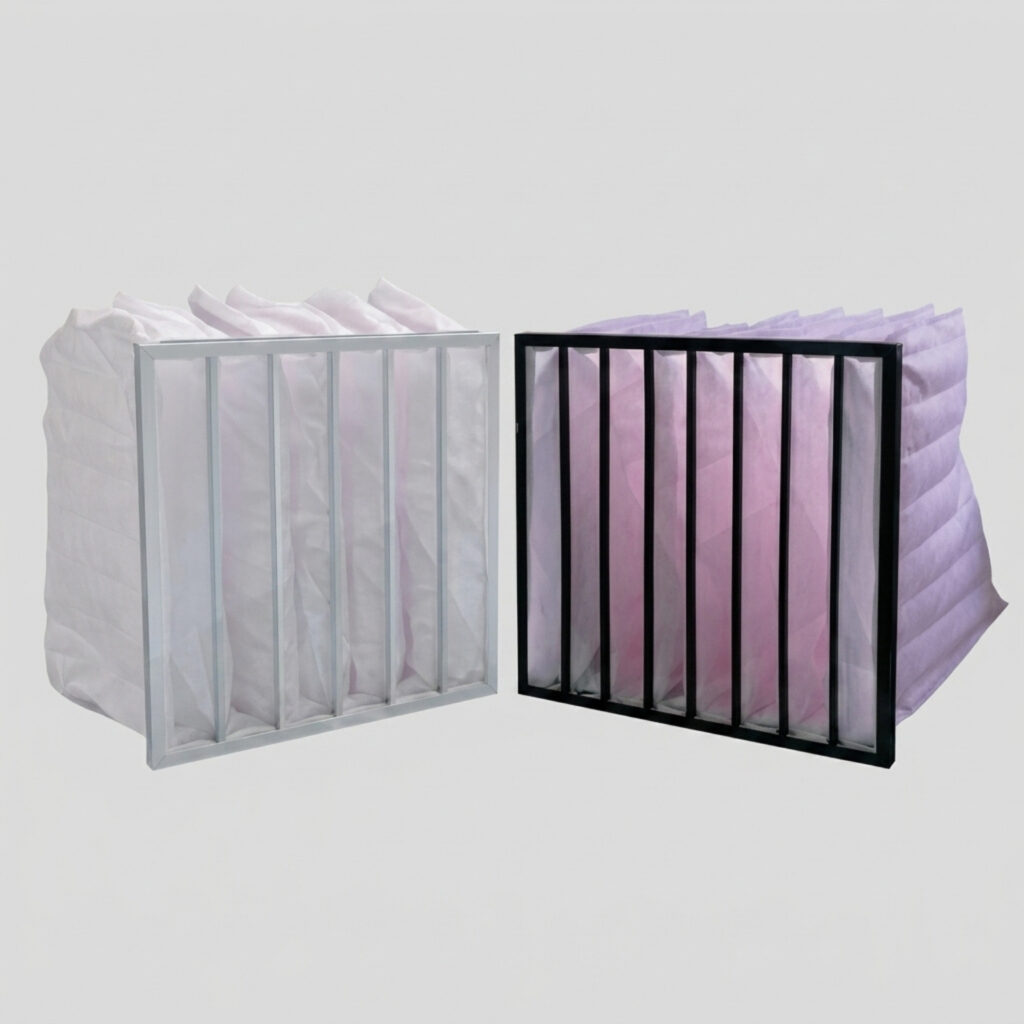

Synthetic Fiber Pocket Filter
Adaptive Efficiency: M5, M6, F7, F8, F9
Product Features
- Large dust holding capacity and stable performance
- big air flow, low resistance, high efficiency
- 100% factory inspection
- "V" -type filter bag structure, affordable, cost-effective
- Washable (Limited)
- Long life-span of media
+44 7479 496191
Call
info@filtravo.com
Application
idely used in ventilation, air conditioning systems, precision instruments manufacturing plant, electronics factory, pharmaceutical workshop and other places.
Material and Operation Conditions
| Media | Synthetic fiber / Non-woven fabrics |
| Pocket type | Sewing bag / Ultrasonic bag |
| Frame | Extruded aluminum / Galvanized / Plastic(ABS) |
| Optional frame thickness(mm) | Aluminum: 21, 25, 46 Plastic: 25 |
| Max. Temperature | 50°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
594*594*660-10P
Technology Parameters
* Customized design is available| Model | Nominal size(inch) (WxHxD) |
Actual size(mm) (WxHxD) |
Air flow (m³/h) |
Initial Pressure (≤Pa) |
Media area (m²) |
Velocity (m/s) |
Filter grade (EN779) |
Filter grade (ISO16890) |
Pocket no. |
|---|---|---|---|---|---|---|---|---|---|
| KP8-001 | 24×24×22 | 594×594×560 | 3000 | 50 | 4.55 | 2.36 | M5 | ePM10 55% | 6 |
| KP8-002 | 24×24×26 | 594×594×660 | 4500 | 50 | 6.89 | 3.54 | M5 | ePM10 55% | 8 |
| KP8-003 | 24×24×26 | 594×594×660 | 5000 | 50 | 8.42 | 3.94 | M5 | ePM10 55% | 10 |
| KP8-004 | 24×24×22 | 594×594×560 | 3000 | 65 | 4.55 | 2.36 | M6 | ePM10 60% | 6 |
| KP8-005 | 24×24×22 | 594×594×560 | 3800 | 65 | 5.85 | 2.99 | M6 | ePM10 60% | 8 |
| KP8-006 | 24×24×26 | 594×594×660 | 4500 | 65 | 6.89 | 3.54 | M6 | ePM10 60% | 8 |
| KP8-007 | 24×24×26 | 594×594×660 | 5000 | 65 | 8.42 | 3.94 | M6 | ePM10 60% | 10 |
| KP8-008 | 24×24×22 | 594×594×560 | 3000 | 80 | 4.55 | 2.36 | F7 | ePM10 70% | 6 |
| KP8-009 | 24×24×22 | 594×594×560 | 3800 | 80 | 5.85 | 2.99 | F7 | ePM10 70% | 8 |
| KP8-010 | 24×24×26 | 594×594×660 | 4500 | 80 | 6.89 | 3.54 | F7 | ePM10 70% | 8 |
| KP8-011 | 24×24×26 | 594×594×660 | 5000 | 80 | 8.42 | 3.94 | F7 | ePM10 70% | 10 |
| KP8-012 | 24×24×22 | 594×594×560 | 3000 | 105 | 4.55 | 2.36 | F8 | ePM10 80% | 6 |
| KP8-013 | 24×24×22 | 594×594×560 | 3800 | 105 | 5.85 | 2.99 | F8 | ePM10 80% | 8 |
| KP8-014 | 24×24×26 | 594×594×660 | 4500 | 105 | 6.89 | 3.54 | F8 | ePM10 80% | 8 |
| KP8-015 | 24×24×26 | 594×594×660 | 5000 | 105 | 8.42 | 3.94 | F8 | ePM10 80% | 10 |
| KP8-016 | 24×24×22 | 594×594×560 | 3000 | 120 | 4.55 | 2.36 | F9 | ePM10 85% | 6 |
| KP8-017 | 24×24×22 | 594×594×560 | 3800 | 120 | 5.85 | 2.99 | F9 | ePM10 85% | 8 |
| KP8-018 | 24×24×26 | 594×594×660 | 4500 | 120 | 6.89 | 3.54 | F9 | ePM10 85% | 8 |
| KP8-019 | 24×24×26 | 594×594×660 | 5000 | 120 | 8.42 | 3.94 | F9 | ePM10 85% | 10 |
| KP8-020 | 24×24×26 | 594×594×660 | 5500 | 120 | 9.95 | 4.33 | F9 | ePM10 85% | 12 |
