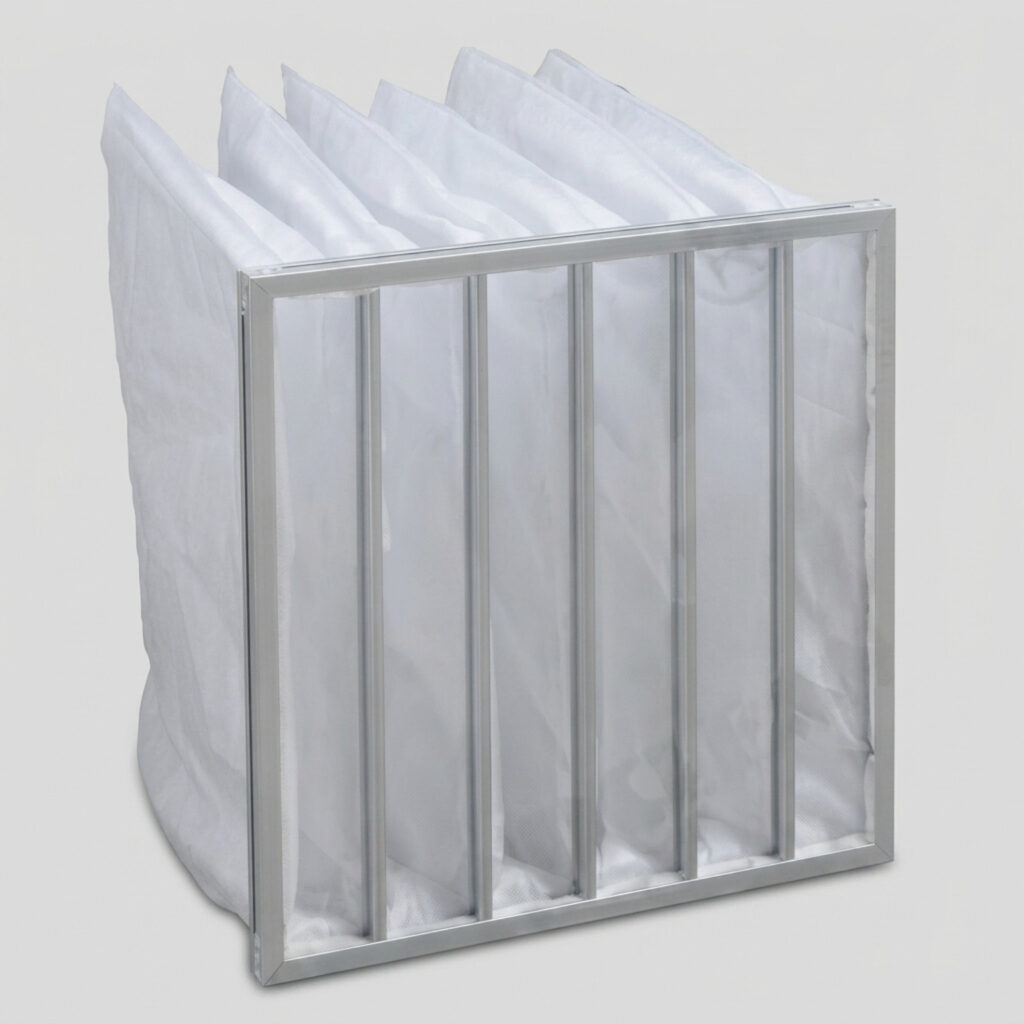

Synthetic Fiber Pocket Filter Bag-SG
Adaptive Efficiency: G3, G4
Product Features
- Large media area and dust holding capacity
- Big air flow, low resistance, high efficiency
- Third party authority certification
- Relative humidity up to 100%
- Synthetic fiber material
+44 7479 496191
Call
info@filtravo.com
Application
Pre-filtration of central air-conditioning, HVAC system, large air compressor.
Material and Operation Conditions
| Media | Synthetic fiber / Polyester fiber |
| Filter pocket type | Sewing bag / Ultrasonic bag |
| Frame | Extruded aluminum / Galvanized / Plastic(ABS) |
| Optional frame thickness(mm) |
Aluminum: 21, 25, 46 Plastic: 25 |
| Max. Temperature | 50°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
Technology Parameters
* Customized design is available
| Model | Nominal size(inch)(WxHxD) |
Actual size(mm)(WxHxD) |
Air flow(m³/h) | Initial Pressure(⩽Pa) |
Media area(m²) | Velocity(m/s) | Filter grade(EN779) | Filter grade(ISO16890) | Pocket no. |
|---|---|---|---|---|---|---|---|---|---|
| KP7-001 | 12×24×15 | 287×594×381 | 1000 | 40 | 1.54 | 1.63 | G3 | Coarse 45% | 3 |
| KP7-002 | 24×24×15 | 594×594×381 | 2800 | 40 | 3.09 | 2.20 | G3 | Coarse 45% | 6 |
| KP7-003 | 24×24×22 | 594×594×560 | 4000 | 40 | 4.55 | 3.15 | G3 | Coarse 45% | 6 |
| KP7-004 | 24×24×22 | 594×594×560 | 5000 | 40 | 5.85 | 3.94 | G3 | Coarse 45% | 8 |
| KP7-005 | 24×24×26 | 594×594×660 | 6000 | 40 | 6.89 | 4.72 | G3 | Coarse 45% | 8 |
| KP7-006 | 24×24×26 | 594×594×660 | 7000 | 40 | 8.42 | 5.51 | G3 | Coarse 45% | 10 |
| KP7-007 | 12×24×15 | 287×594×381 | 1400 | 55 | 1.54 | 2.28 | G4 | Coarse 65% | 3 |
| KP7-008 | 24×24×15 | 594×594×381 | 2800 | 55 | 3.09 | 2.20 | G4 | Coarse 65% | 6 |
| KP7-009 | 24×24×22 | 594×594×560 | 4200 | 55 | 4.55 | 3.31 | G4 | Coarse 65% | 6 |
| KP7-010 | 24×24×22 | 594×594×560 | 5000 | 55 | 5.85 | 3.94 | G4 | Coarse 65% | 8 |
| KP7-011 | 24×24×26 | 594×594×660 | 6200 | 55 | 6.89 | 4.88 | G4 | Coarse 65% | 8 |
| KP7-012 | 24×24×26 | 594×594×660 | 7200 | 55 | 8.42 | 5.67 | G4 | Coarse 65% | 10 |
