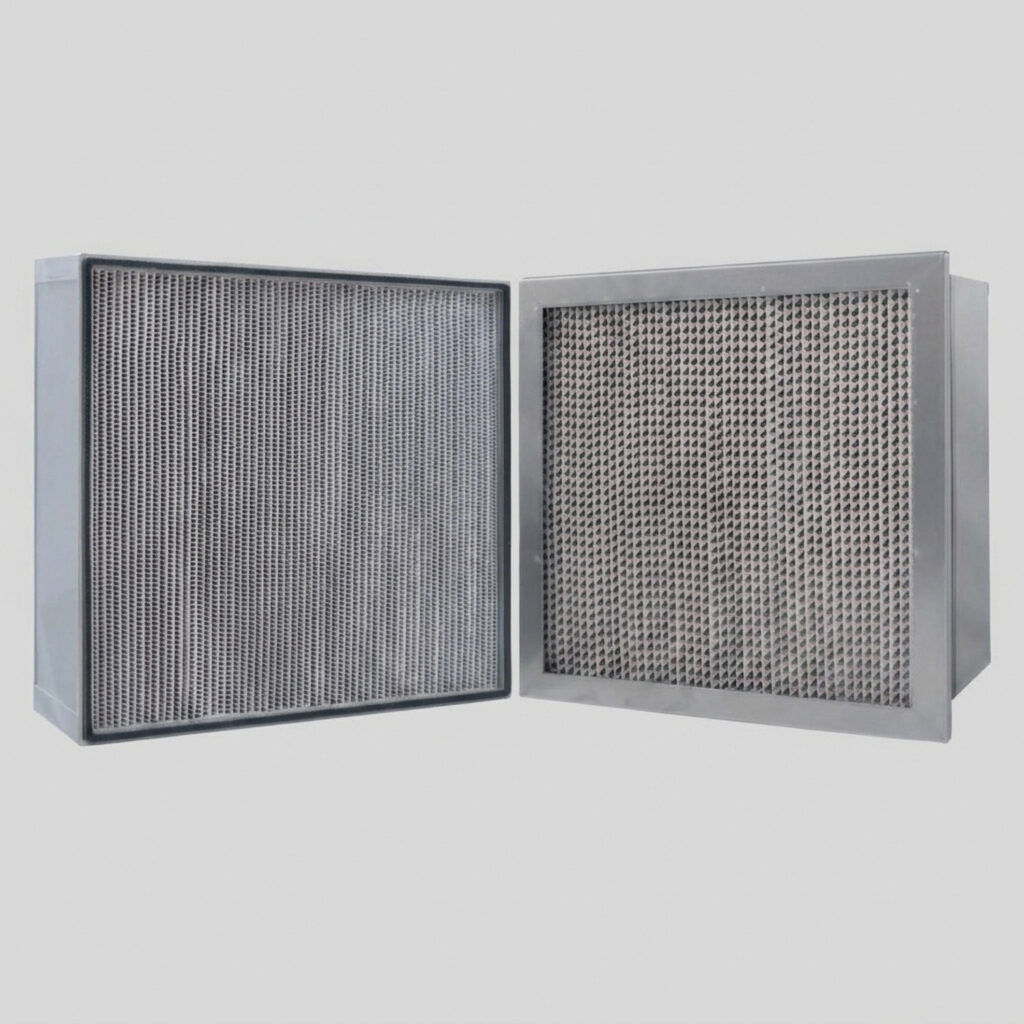

Separator Filter

Adaptive Efficiency: E10, E11, E12, H13, H14

Product Features

+44 7479 496191

Call

info@filtravo.com

herminal filtration of purifying air conditioning system and local purification equipment, available to environment with changing air flow.

Media	Micro glass fiber
Frame	Extruded aluminum / Sheet aluminum Galvanized / Stainless steel / MDF
Sealant	Two-component polyurethane glue
Gasket	PU foam gasket / EVA / EPDM
Separator	Aluminum foil
Optional frame thickness(mm)	80 96 120 150 220 292 305
Max. Temperature	100°C
Max. Humidity	100%

610*610*292

* Customized design is available

Model	Size(inch) (WxHxD)	Size(mm) (WxHxD)	Air flow (m³/h)	Initial pressure (≤Pa)	Media area (m²)	Velocity (m/s)	Filter grade (EN1822)
K56-A-001	24×12×6	610×305×150	500	100	4.41	0.75	E10
K56-A-002	24×24×6	610×610×150	1000	100	9.3	0.75	E10
K56-A-003	24×12×12	610×305×292	1000	100	9.67	1.49	E10
K56-A-004	24×24×12	610×610×292	2150	100	20.41	1.61	E10
K56-A-005	36×24×12	915×610×292	3200	100	30.61	1.59	E10
K56-A-006	48×24×12	1220×610×292	4250	100	40.81	1.59	E10
K56-A-007	24×12×6	610×305×150	500	200	4.41	0.75	H13
K56-A-008	24×24×6	610×610×150	1000	200	9.3	0.75	H13
K56-A-009	36×24×6	915×610×150	1500	200	13.95	0.75	H13
K56-A-010	24×12×12	610×305×292	1000	200	9.67	1.49	H13
K56-A-011	24×24×12	610×610×292	2150	200	20.41	1.61	H13
K56-A-012	36×24×12	915×610×292	3200	200	30.61	1.59	H13
K56-A-013	48×24×12	1220×610×292	4250	200	40.81	1.59	H13
K56-A-014	24×12×6	610×305×150	500	220	4.41	0.75	H14
K56-A-015	24×24×6	610×610×150	1000	220	9.3	0.75	H14
K56-A-016	36×24×6	915×610×150	1500	220	13.95	0.75	H14
K56-A-017	24×12×12	610×305×292	1000	220	9.67	1.49	H14
K56-A-018	24×24×12	610×610×292	2150	220	20.41	1.61	H14
K56-A-019	36×24×12	915×610×292	3200	220	30.61	1.59	H14
K56-A-020	48×24×12	1220×610×292	4250	220	40.81	1.59	H14
