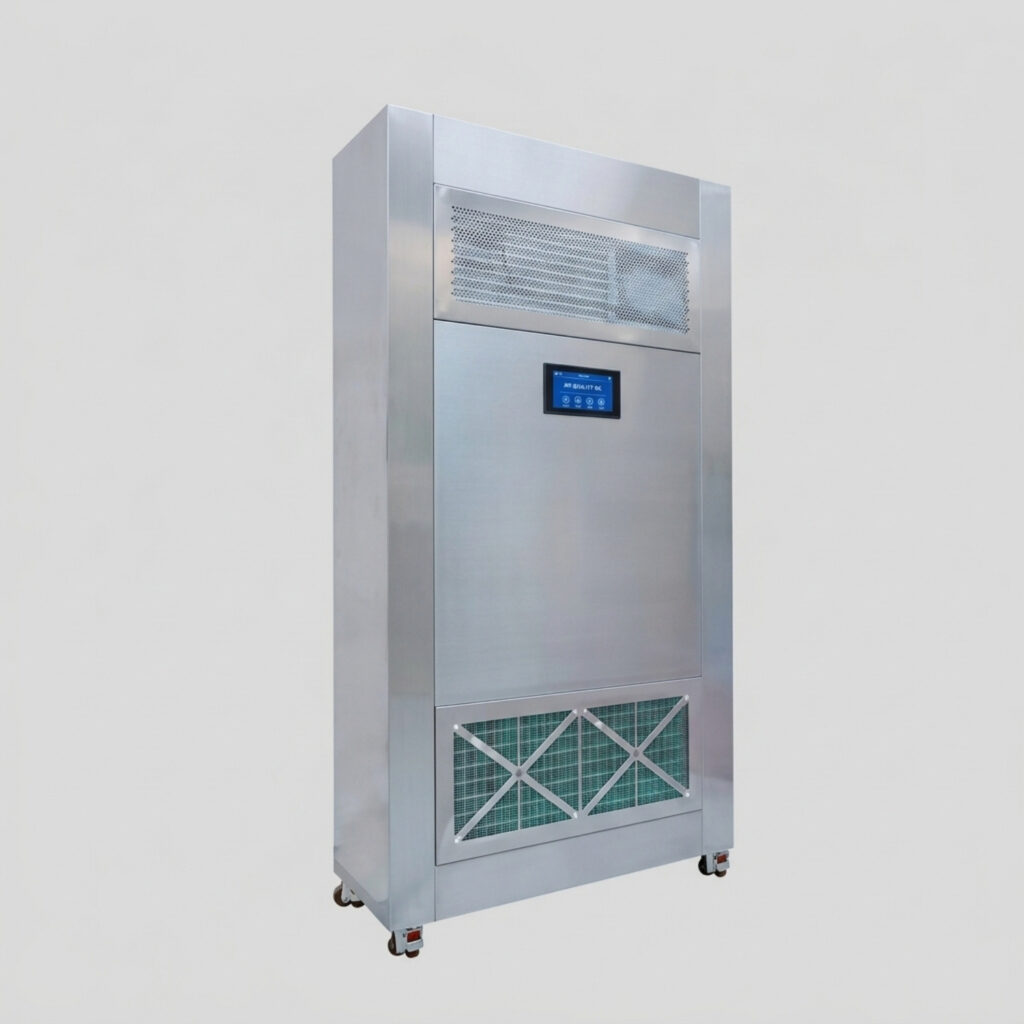

Self-clean Device
Product overview
Industrial mobile self-clean device also know as air purification unit, with large air flow for bigger filtration area, which widely applies to creat a clean air environment of the local indoor area.
Energy saving
Energy-Efficient, electrical capacity can be operated with a household power supply.
Durable cabinet
The cabinet adopts full welding structure, made of high-quality 1.0mm thick powder coated steel, or stainless steel for corrosive option.
High quality HEPA filter
Built-in high-performance filter (HEPA filter), removes over 99.995% of particles as small as 0.3 microns, dust, mold spores, bacteria, viruses, smoke. The HEPA filter strictly follows EN1822 standard, passes the PAO scanning test of laser particles before leaving the factory, and a unique and traceable performance test report is issued.
UVC germicidal lamp
18W large sterilization rate UVC germicidal lamp, strong antibacterial air purification - includes commercial grade antimicrobial bacteria and viruses in air and on surfaces.
| Item | Industrial Self-clean Device | |||
|---|---|---|---|---|
| Model | SC-1000 | SC-1500 | SC-2000 | SC-2500 |
| Material | Powder coated steel / Stainless steel | |||
| Cabinet size (W*L*Hmm) | 700x500x1480 | 700x550x1480 | 800x550x1480 | 800x550x1480 |
| Filter Efficiency | 99.99%@0.3um | |||
| Air flow (m³/h) | 1000 | 1500 | 2000 | 2500 |
| Power supply (V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 |
| Power rating (Kw) | 250 | 320 | 550 | 550 |
| Noise dBA | ≤65 | ≤65 | ≤75 | ≤75 |
| UV lamp | 23W | 23W | 23W | 23W |
⚙️Optional Configuration
- Household power supply (220V/110V)
- Intelligent touch screen
- Rotary speed controller
- UV lamp timer
- HEPA filter pressure garuge
- Filter exchange alarm
- Air exhaust system
- Activated carbon filter
- 99.995%~99.99995% HEPA / ULPA filter
- Remote control

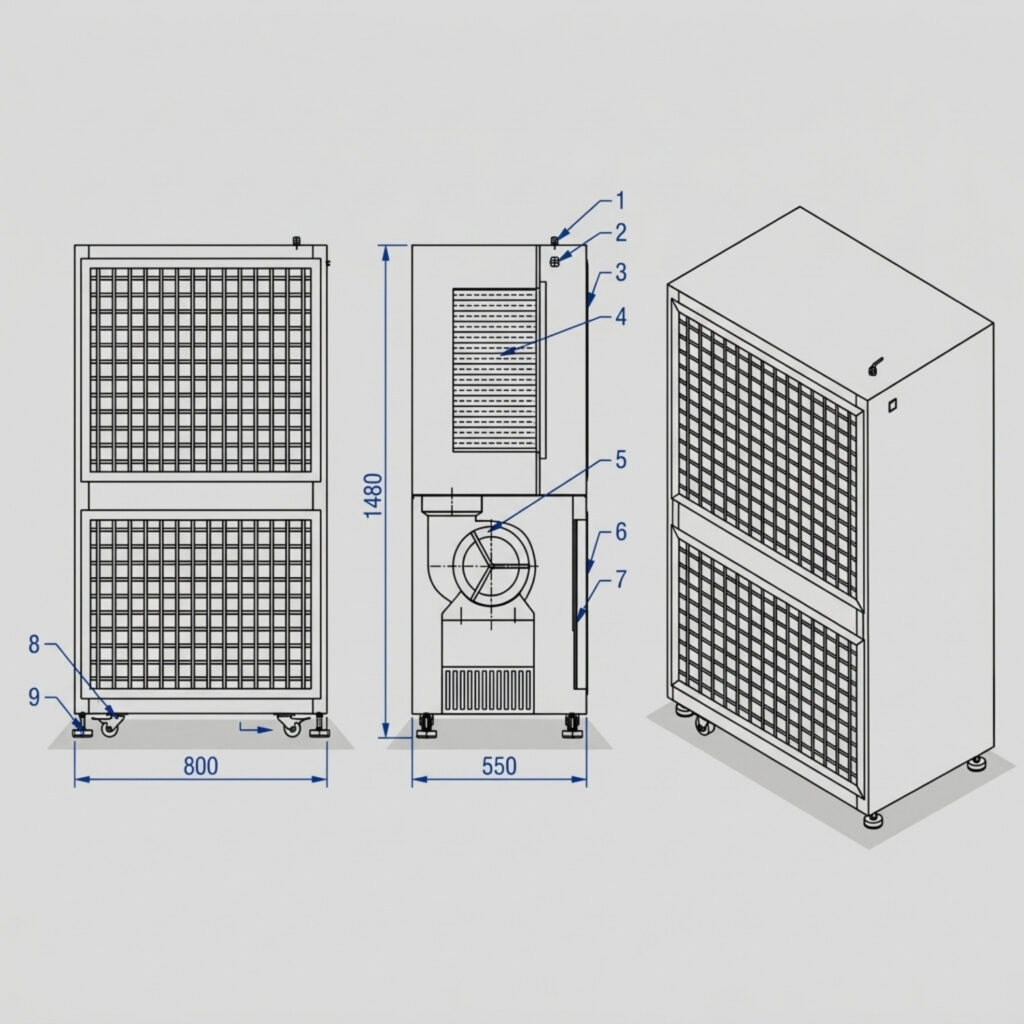

⚙️Parameter
- 1. Power plug
- 2. Fan on/off
- 3. Air outlet adjustable louver
- 4. HEPA filter
- 5. Fan motor
- 6. Air inlet adjustable louver
- 7. Washable pre-filter
- 8. Wheels
- 9. Foot margin
