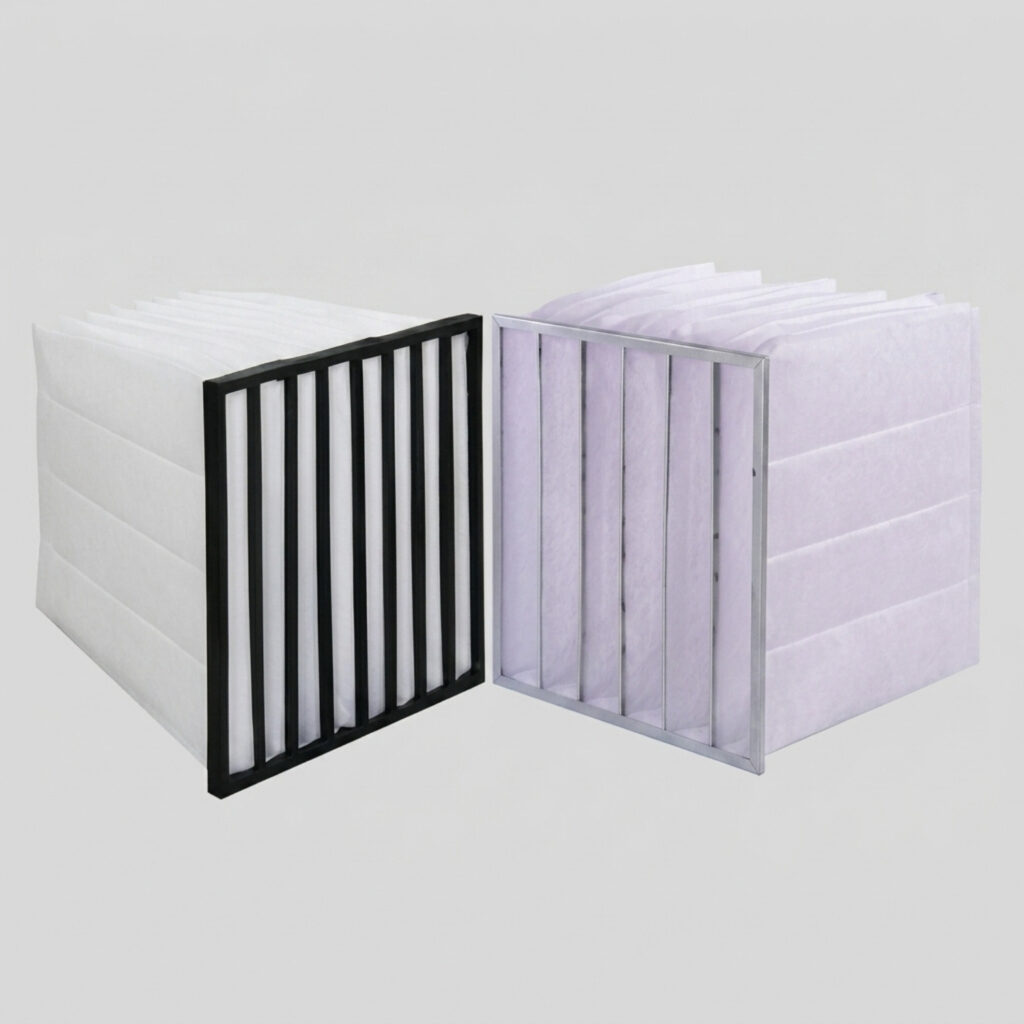

Rigid Bag Filter Bag-Rg
Adaptive Effificiency: M5, M6, F7, F8, F9
Product Features
- Using thermally bonded technology
- High dust-holding capacity
- The media are progressively structured, long service life.
- Rhombic and small pockets inside, reduce power consumption, and make full use of the filter media.
+44 7479 496191
Call
info@filtravo.com
Application
specialized design of gas turbine, or for indoor climate control systems such
as airports, hospitals, museums, laboratories, pharmacies, commercail
buildings, etc.
Material and Operation Conditions
| Media | Micro glass fiber |
| Pocket type | Ultrasonic bag |
| Frame | Extruded aluminum / Galvanized / Plastic |
| Optional aluminum thickness(mm) | 21 25 |
| Max. Temperature | 70°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
592*592*600
Technology Parameters
* Customized design is available| Model | Nominal size(inch) (WxHxD) |
Actual size(mm) (WxHxD) |
Air flow (m³/h) |
Initial pressure (≤Pa) |
Media area (m²) |
Filter grade (EN779) |
Filter grade (ISO16890) |
Pocket no. |
|---|---|---|---|---|---|---|---|---|
| KP8-R-001 | 24×24×25.4 | 592×592×600 | 4250 | 52 | 4.4 | M5 | ePM10 50% | 6 |
| KP8-R-002 | 12×24×25.4 | 287×592×600 | 2200 | 52 | 2.2 | M5 | ePM10 50% | 3 |
| KP8-R-003 | 24×24×25.4 | 592×592×600 | 4250 | 69 | 5.8 | M5 | ePM10 55% | 6 |
| KP8-R-004 | 12×24×25.4 | 287×592×600 | 2200 | 83 | 5.8 | M5 | ePM10 55% | 3 |
| KP8-R-005 | 12×24×25.4 | 287×592×600 | 2100 | 83 | 2.9 | M6 | ePM10 65% | 3 |
| KP8-R-006 | 12×24×25.4 | 287×592×600 | 3400 | 75 | 5.8 | M6 | ePM10 65% | 3 |
| KP8-R-007 | 12×24×25.4 | 287×592×600 | 1700 | 75 | 2.9 | M6 | ePM10 65% | 6 |
| KP8-R-009 | 12×24×25.4 | 592×592×600 | 3400 | 90 | 5.8 | F7 | ePM10 85% | 6 |
| KP8-R-010 | 12×24×25.4 | 287×592×600 | 1700 | 90 | 2.9 | F7 | ePM10 85% | 3 |
| KP8-R-011 | 12×24×25.4 | 592×592×600 | 3400 | 115 | 5.8 | F8 | ePM10 65% | 3 |
| KP8-R-012 | 12×24×25.4 | 287×592×600 | 1700 | 115 | 2.9 | F8 | ePM1 65% | 3 |
| KP8-R-013 | 12×24×25.4 | 592×592×600 | 3400 | 125 | 5.8 | F9 | ePM1 70% | 6 |
| KP8-R-014 | 12×24×25.4 | 287×592×600 | 1700 | 125 | 2.9 | F9 | ePM1 70% | 3 |
| KP8-R-015 | 24×24×25.4 | 592×592×600 | 1700 | 80 |
