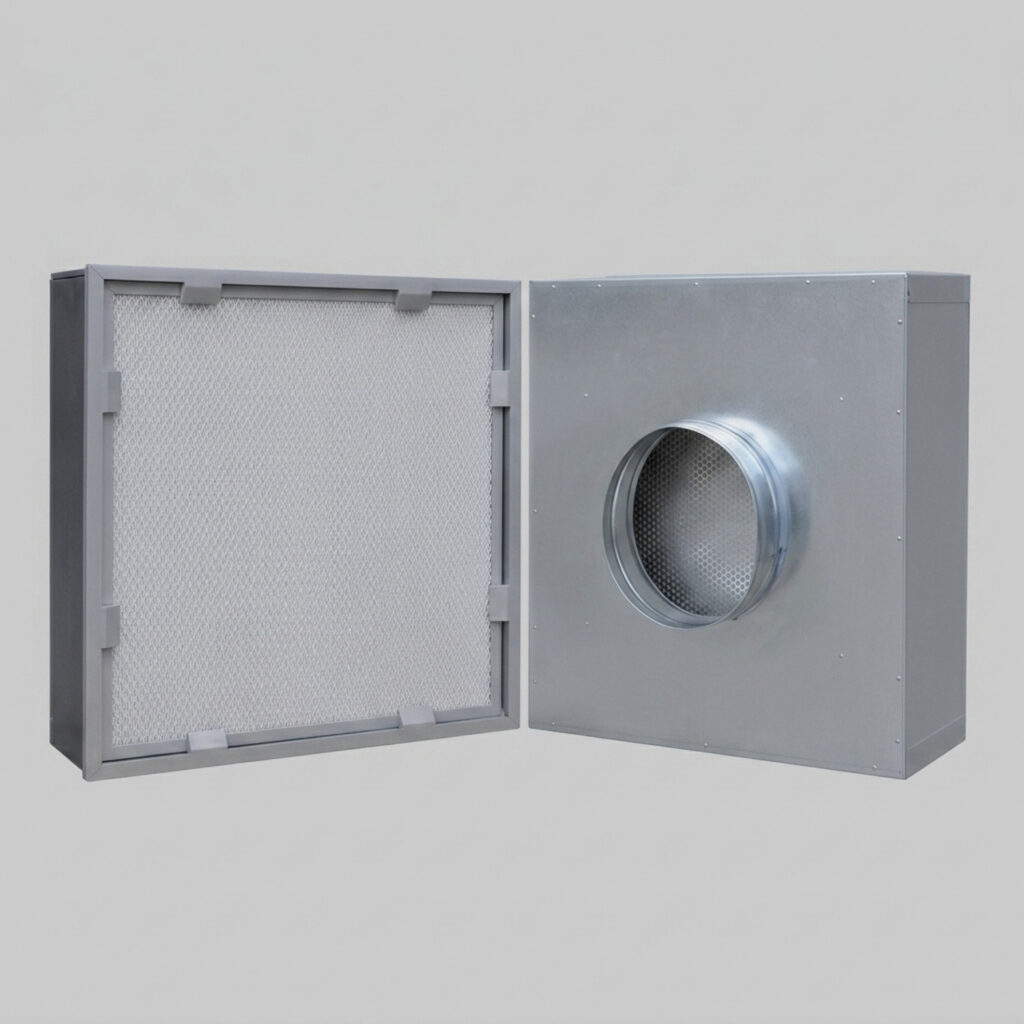

Replaceable Hooded Terminal Filter
Adaptive Efficiency: E10, E11, E12, H13, H14, U15, U16, U17
Product Features
- Light weight and thin thickness
- 100% factory inspection
- Convenient installation and simple maintenance to save investment
- High efficiency
- Good ventilation performance
+44 7479 496191
Call
info@filtravo.com
Application
Places with high requirement of cleanliness, such as surgery, lab, pharmacy, micro-electronic, fiber optic equipment and food processing factories, etc.
Material and Operation Conditions
| Media | Micro glass fiber |
| Housing | 150mm extruded aluminum |
| Rear cover | Sheet aluminum / Galvanized |
| Filter Frame | 69mm extruded aluminum |
| Sealant | Two-component polyurethane glue |
| Gasket | PU foam gasket / EVA / EPDM |
| Separator | Hot melt bead |
| Max. Temperature | 70°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
644*644*150
Technology Parameters
* Customized design is available| Model | Size(inch) (WxHxD) |
Size(mm) (WxHxD) |
Air flow (m³/h) |
Initial pressure (≤Pa) |
Media area (m²) |
Velocity (m/s) |
Filter grade (EN1822) |
|---|---|---|---|---|---|---|---|
| K58-001 | 14×14×6 | 354×354×150 | 250 | 170 | 2.71 | 0.68 | H13 |
| K58-002 | 20.4×20.4×6 | 518×518×150 | 600 | 170 | 6.20 | 0.71 | H13 |
| K58-003 | 21×21×6 | 534×534×150 | 650 | 170 | 6.61 | 0.72 | H13 |
| K58-004 | 23.7×23.7×6 | 604×604×150 | 840 | 170 | 8.60 | 0.72 | H13 |
| K58-005 | 25.3×25.3×6 | 644×644×150 | 950 | 170 | 9.84 | 0.71 | H13 |
| K58-006 | 26.1×26.1×6 | 664×664×150 | 1000 | 170 | 10.50 | 0.70 | H13 |
| K58-007 | 37.3×23.7×6 | 949×604×150 | 1350 | 170 | 13.80 | 0.72 | H13 |
| K58-008 | 37.3×25.3×6 | 949×644×150 | 1450 | 170 | 14.77 | 0.72 | H13 |
| K58-009 | 47.4×23.7×6 | 1204×604×150 | 1700 | 170 | 17.64 | 0.71 | H13 |
| K58-010 | 49.3×25.3×6 | 1254×644×150 | 1900 | 170 | 19.69 | 0.71 | H13 |
| K58-011 | 14×14×6 | 354×354×150 | 250 | 190 | 2.71 | 0.68 | H14 |
| K58-012 | 20.4×20.4×6 | 518×518×150 | 600 | 190 | 6.20 | 0.71 | H14 |
| K58-013 | 21×21×6 | 534×534×150 | 650 | 190 | 6.61 | 0.72 | H14 |
| K58-014 | 23.7×23.7×6 | 604×604×150 | 840 | 190 | 8.60 | 0.72 | H14 |
| K58-015 | 25.3×25.3×6 | 644×644×150 | 950 | 190 | 9.84 | 0.71 | H14 |
| K58-016 | 26.1×26.1×6 | 664×664×150 | 1000 | 190 | 10.50 | 0.70 | H14 |
| K58-017 | 37.3×23.7×6 | 949×604×150 | 1350 | 190 | 13.80 | 0.72 | H14 |
| K58-018 | 37.3×25.3×6 | 949×644×150 | 1450 | 190 | 14.77 | 0.72 | H14 |
| K58-019 | 47.4×23.7×6 | 1204×604×150 | 1700 | 190 | 17.64 | 0.71 | H14 |
| K58-020 | 49.3×25.3×6 | 1254×644×150 | 1900 | 190 | 19.69 | 0.71 | H14 |
