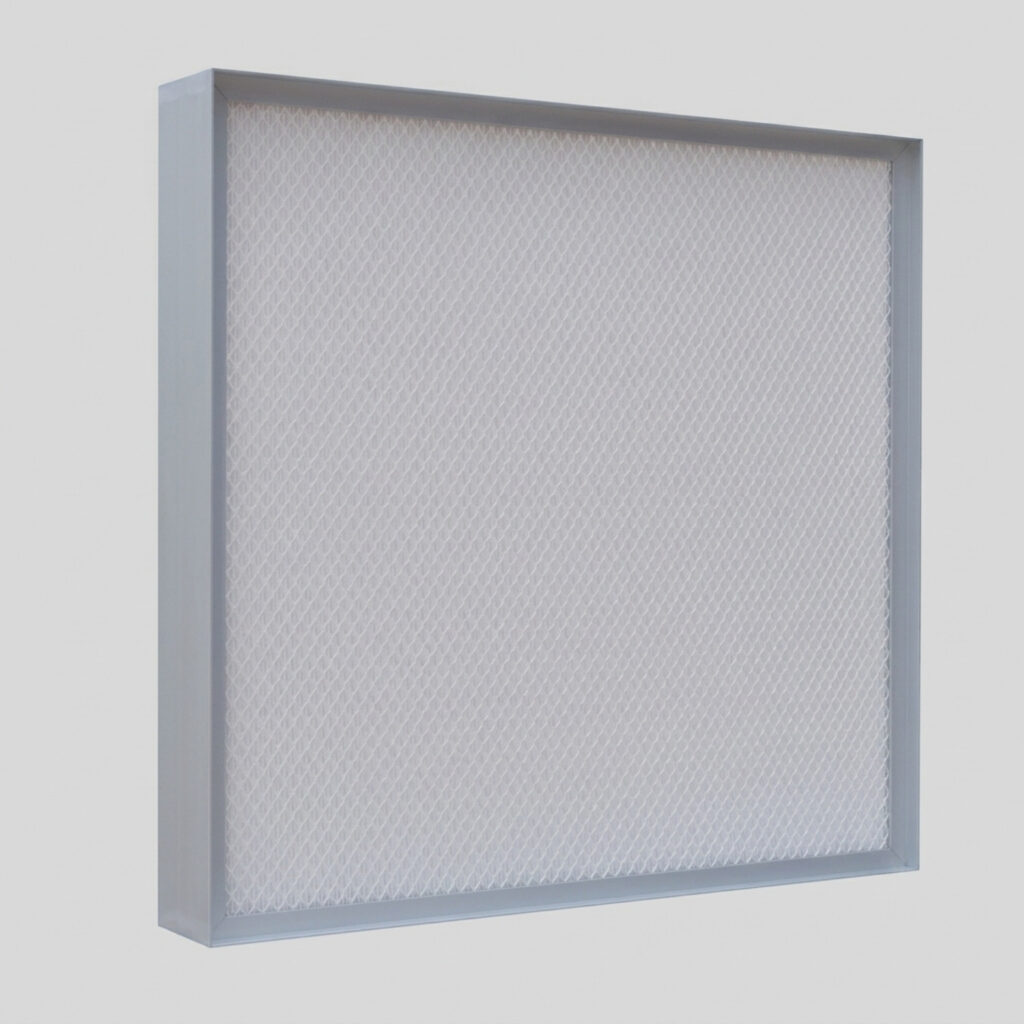

PTFE Mini-pleat Filter

Adaptive Efficiency: E10, E11, E12, H13, H14

Product Features

+44 7479 496191

Call

info@filtravo.com

Pharmaceutical factory, biological factory, food processing factory
or other places require strict air quality control.

Media	Micro glass fiber / PTFE
Frame	Extruded aluminum
Sealant	Two-component polyurethane glue
Gasket	PU foam gasket / EVA / EPDM
Separator	Hot melt bead
Optional aluminum frame thickness (mm)	83 110
Max. Temperature	70°C
Max. Humidity	100%

610*610*110

* Customized design is available

Model	Size(inch) (WxHxD)	Size(mm) (WxHxD)	Air flow (m³/h)	Initial pressure (≤Pa)	Media area (m²)	Velocity (m/s)	Filter grade (EN1822)
K67-001	12×12×4.33	305×305×110	350	170	3.54	1.05	H13
K67-002	19×19×4.33	484×484×110	850	170	8.91	1.01	H13
K67-003	22×22×4.33	570×570×110	1200	170	12.36	1.03	H13
K67-004	24×12×4.33	610×305×110	700	170	7.08	1.05	H13
K67-005	24×24×4.33	610×610×110	1400	170	14.15	1.05	H13
K67-006	36×24×4.33	915×610×110	2000	170	21.23	1.00	H13
K67-007	46×22×4.33	1170×570×110	2500	170	25.36	1.04	H13
K67-008	48×24×4.33	1220×610×110	2750	170	28.3	1.03	H13
K67-009	46×46×4.33	1170×1170×110	5000	170	52.06	1.01	H13
K67-010	48×48×4.33	1220×1220×110	5500	170	56.61	1.03	H13
K67-011	12×12×4.33	305×305×110	350	190	3.54	1.05	H14
K67-012	19×19×4.33	484×484×110	850	190	8.91	1.01	H14
K67-013	22×22×4.33	570×570×110	1200	190	12.36	1.03	H14
K67-014	24×12×4.33	610×305×110	700	190	7.08	1.05	H14
K67-015	24×24×4.33	610×610×110	1400	190	14.15	1.05	H14
K67-016	36×24×4.33	915×610×110	2000	190	21.23	1.00	H14
K67-017	46×22×4.33	1170×570×110	2500	190	25.36	1.04	H14
K67-018	48×24×4.33	1220×610×110	2750	190	28.3	1.03	H14
K67-019	46×46×4.33	1170×1170×110	5000	190	52.06	1.01	H14
K67-020	48×48×4.33	1220×1220×110	5500	190	56.61	1.03	H14
