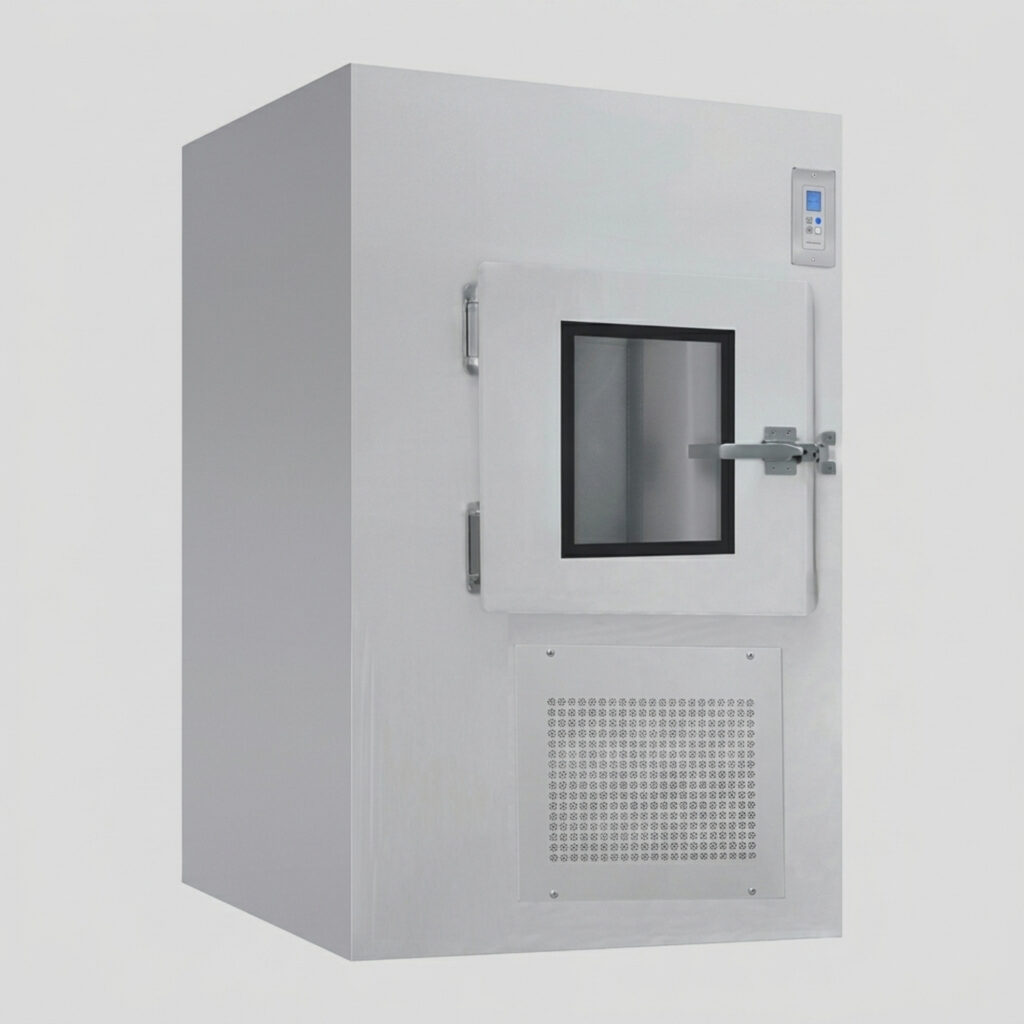

Pass Box with Air Shower
1
Quality selection
Work area with polish stainless steel plate which is more smooth and wear-resistant.The cabinet surface-adopts cold rolled steel or stainless steel.
2
Good sealing
Doors in two sides with mechanical or electronic interlock device makes them cannot be in open state at the same time.
3
Filtration efficiencyis guaranteed
Adopting KLC mini-pleat HEPA filter. filtration efficiency is 99.99%
4
Multi optional components
According to the production process-requirements and your needs,cande-sign various sizes,can choose toinstall efficient sterilization lamps.
5
Application
According to the production process-requirements and your needs,cande-sign various sizes,can choose toinstall efficient sterilization lamps.
```html
```
| Item | Standard Pass Box with Air Shower | |
|---|---|---|
| Model | AP-600 | AP-800 |
| External size (W*L*Hmm) | 950*600*1450 | 1150*800*1650 |
| Internal size (W*L*Hmm) | 600*600*600 | 800*800*800 |
| Chamber height from floor | 500mm | 500mm |
| Cabinet material | Powder coated steel / Stainless steel | |
| Wind blow time | Air shower time: 1minute(0~99 minutes adjustable) Mechanical interlock / Electromagnetic interlock | |
| Nozzle in stainless steel (pc) | 4 | 6 |
| Nozzle wind speed (m/s) | ⩾25 | ⩾25 |
| Efficiency (%0.3um) | 99.99 | 99.99 |
| Noise dB (1m from equipment) | <68 | <68 |
| Power supply | 220V150Hz | 220V150Hz |
| Fan power (W) | 550 | 550 |
⚙️Optional Configuration
- UV lamp
- LED lamp
- PLC+HMI
- Timer
- Door alarm
- Customized supply
- Customizatied size
- Installation bracket

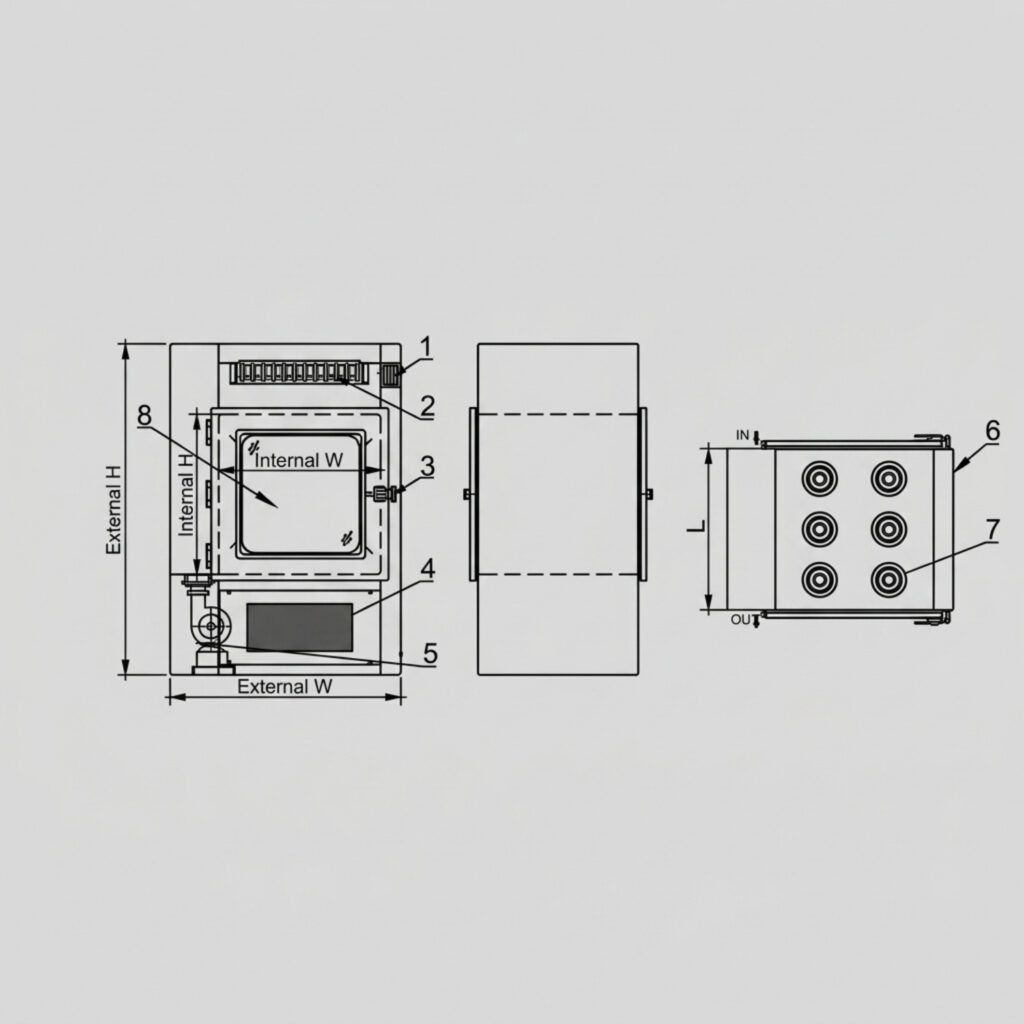

⚙️Parameter
- 1. Control panel
- 2. HEPA filter
- 3. Handle
- 4. Pre-filter
- 5. Fan
- 6. Power connector
- 7. Stainless steel nozzle
- 8. Tempered glass
