Mobile LAF Cabinet
Product overview

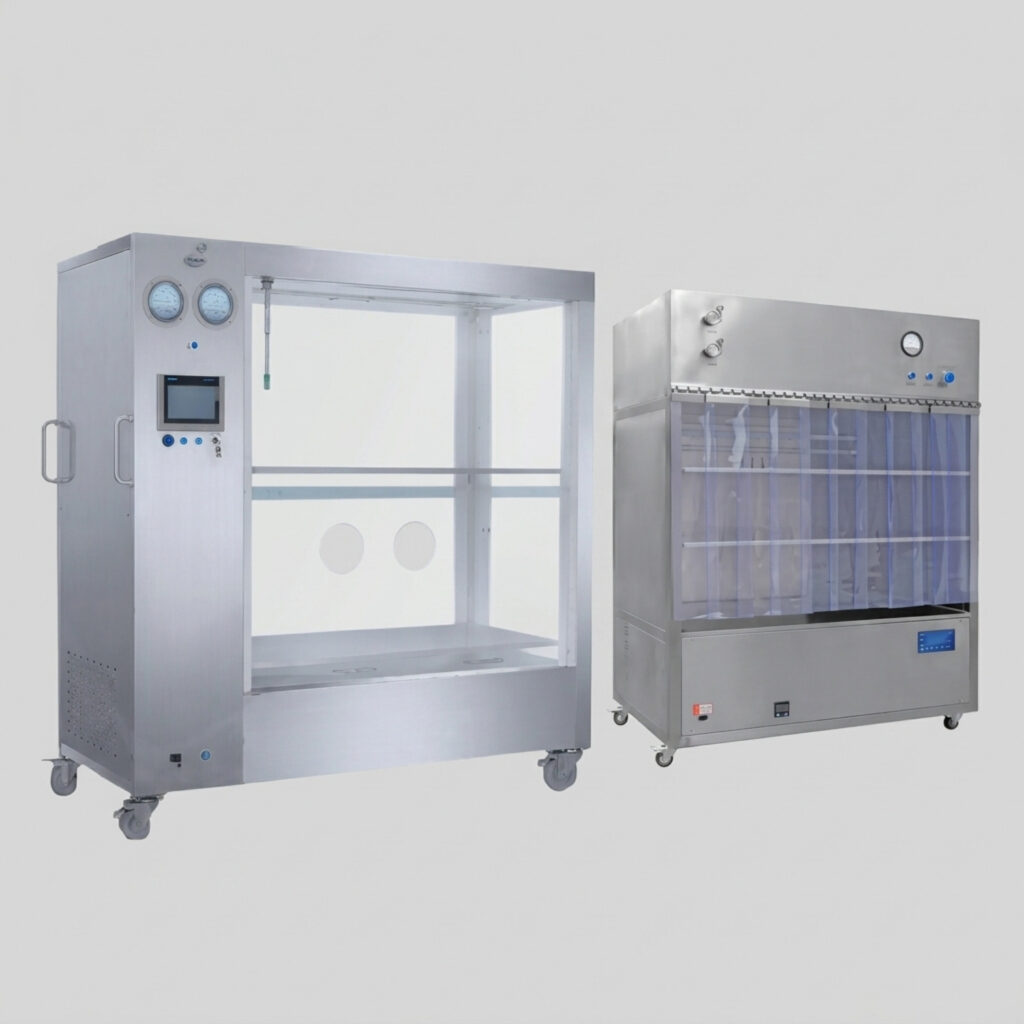

The mobile LAF cabinet, as special supporting equipment for the pharmaceutical industry, is a mobile purification unit that provides a local static 100 clean working environment. It can realize the functions of raw material sampling, semi-finished products and finished products transfer in a steriled environment, advantaged in easy moving, simple operating and efficient purification.
Low energy consumption,
long back up power supply
Ventilation provided by energy efficiency low power consumption motor blower; powered by UPS back up power supply for minimum 2-4hours' of unplugged operation, free to sampling and transit.
Intelligent control system
KLC newly developed touch screen control panel, user friendly operation including wind speed adjust, UV lamp timer, fan motor timer, filter DP alarm, fan failure alarm, auto and local control switchable etc.
GMP standard
Euipped with KLC gel-sealed HEPA filter, minimum efficiency 99.995%, promise for ISO 5 clean class in working area, integrity scan test with DOP test ports, fully ensure the quality standard for GMP pharmaceutical.
| Item | Mobile LAF Cabinet | |
|---|---|---|
| Model | LAF-VF | LAF-HF |
| Air flow direction | Veritical air flow | Horizontal air flow |
| External size (L*W*Hmm) | 850x800x2000 | 600x1270x1530 |
| Internal size (L*W*Hmm) | 750x700x750 | 500*720*1220 |
| Fan motor | EBM 310 | AFL DC310 |
| Fan power (W) | 115w | 120w |
| Control | Electronic control panel | |
| Velocity | 0.45 m/s±20% | |
| Noise | 65 dBA±5 | |
| Illumination | ≥300 Lux | |
| Filtration | G4+H14 (99.995%) | |
| Clean class | ISO5 (Class 100) | |
| UPS duration | 2-4 hours | |
| Front door | PVC anti-static curtain | Tempered glass |
| Power supply | 220V / 50Hz | |

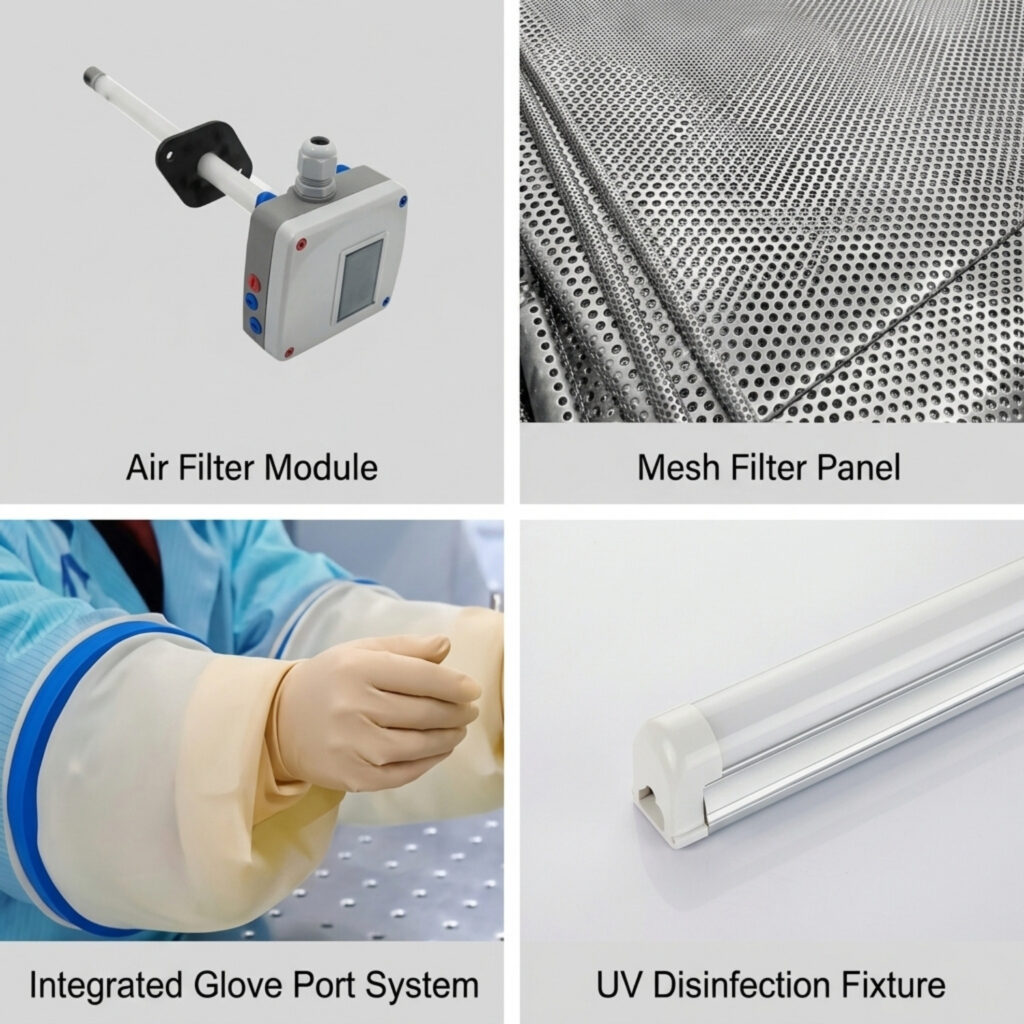

⚙️Optional Configuration
- PLC+HMI control system
- Velocity sensor and display
- Alarm system
(HEPA filter bolck, fan fault, etc.) - UV lamp with hour meter
- Oxidation resistant isolation gloves
- Removable layer panel
- Laminar flow membrane

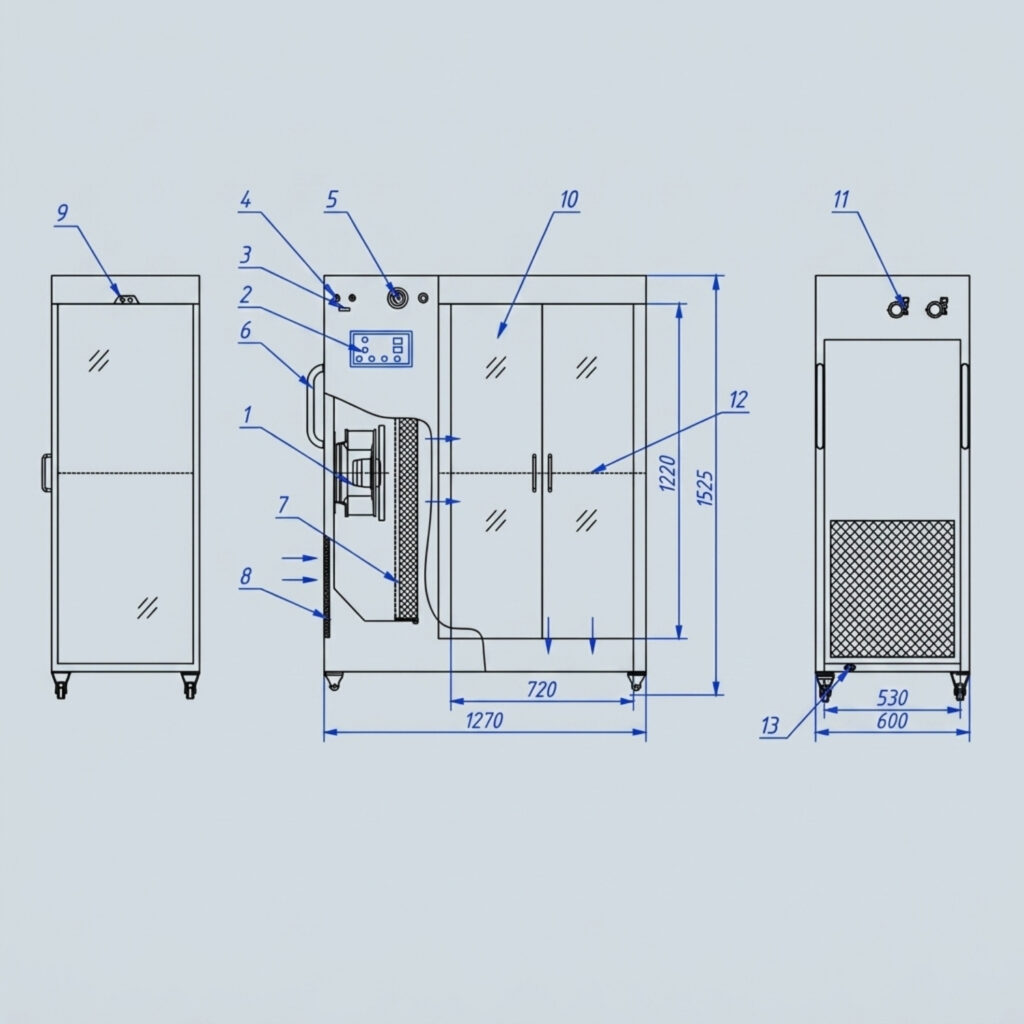

⚙️Parameter
- 1. AC centrifugal fan
- 2. Touch screen control panel
- 3. Battery status
- 4. Alarm buzzer
- 5. DP gauge
- 6. Handle
- 7. Gel seal HEPA filter
- 8. Pre-filter
- 9. UV lamp
- 10. Tempered glass
- 11. PAO test ports
- 12. Removeable clapboard
- 13. Power socket
