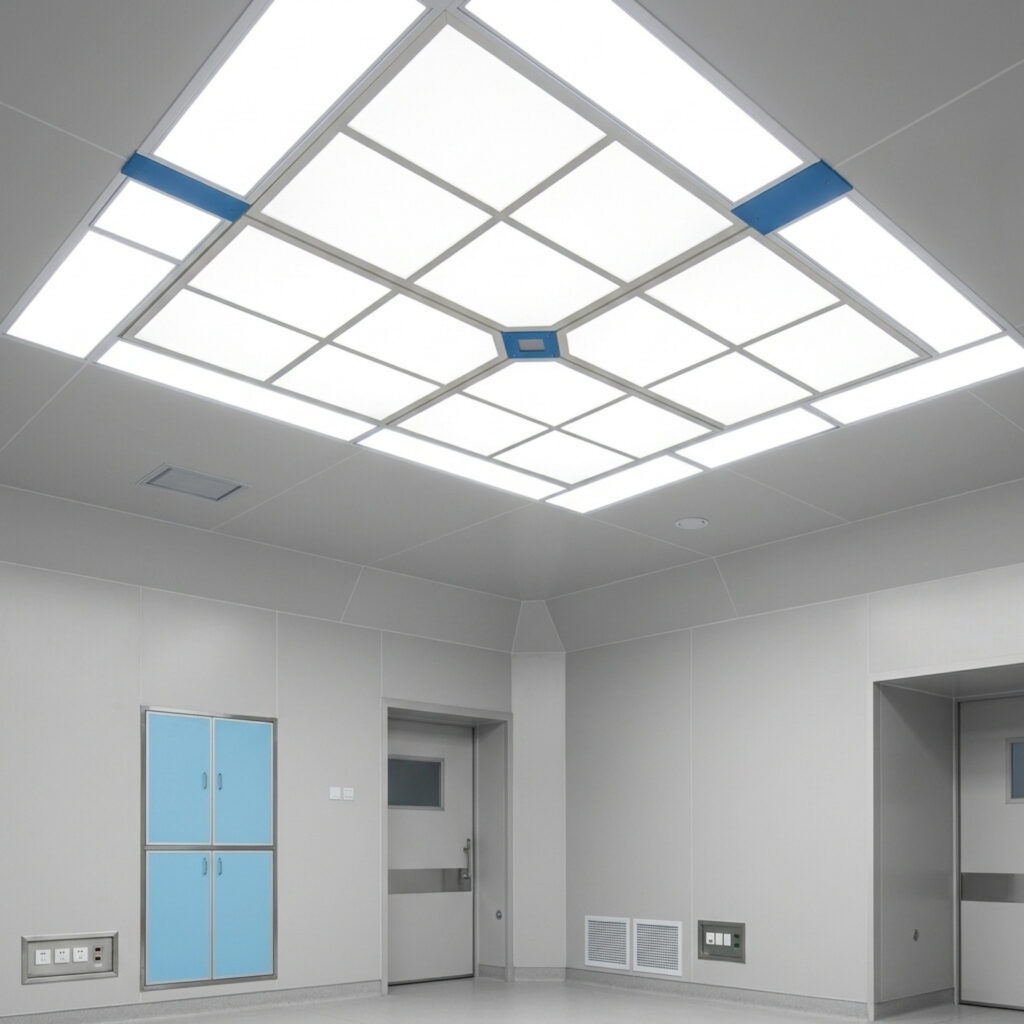

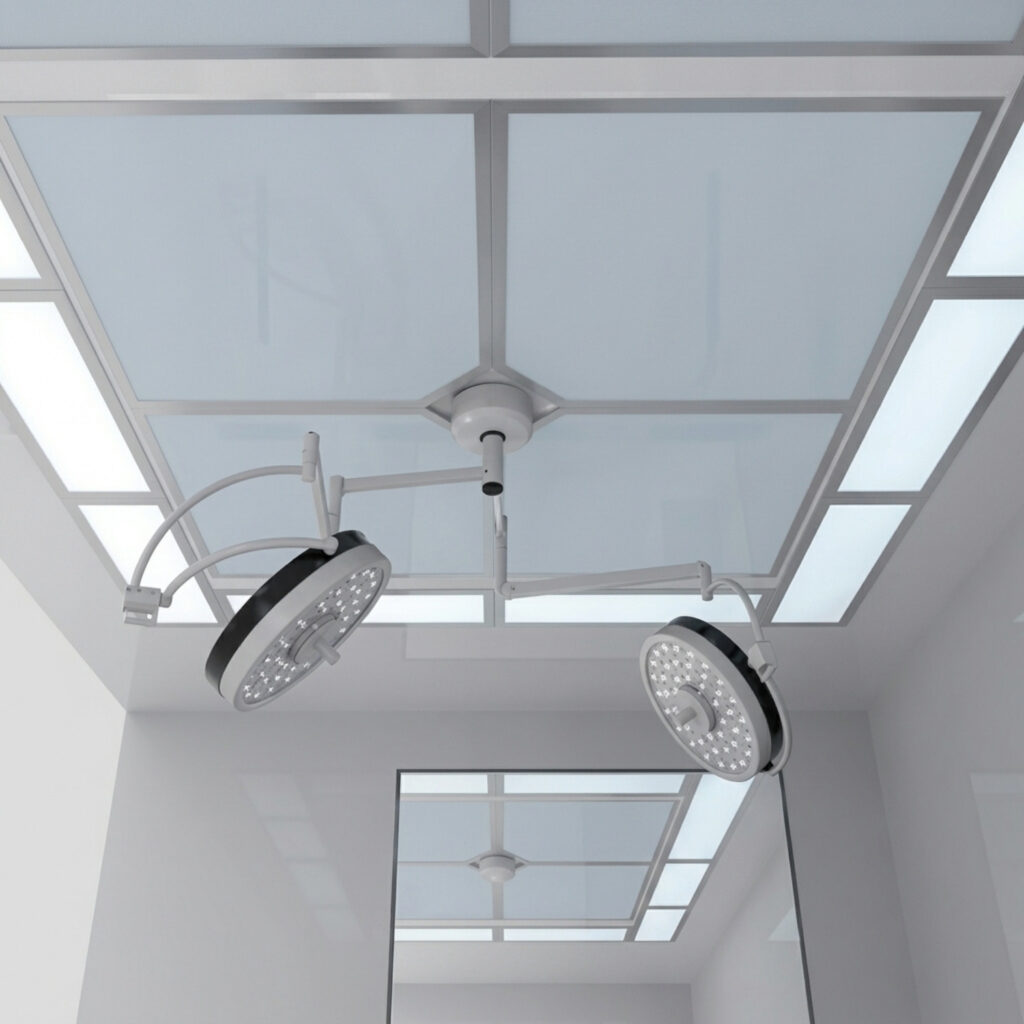

Laminar Flow Ceiling
Product overview
Laminar flow ceiling provides zoned, unidirectional downflow air-flow to the surgical zone, providing protection from airborne pathogens. This unidirectional airflow positively pressurizes and purges the surgical environment from contaminants which enhances the aseptic work zone. class 100, class 1000 and class 10,000 clean air-conditioning systems, mainly composed of static pressure box, diffuser, HEPA filter, flanger and damper.
The central flow compensation
Device can effectively eliminate the heat generated up draft of laminar flow of the energy equipment.
Well-quality air filter
Apply self-produced HEPA filter, filtration efficiency according to international standard EN1822, comprehensive test including leakage test, pressure test and air flow.
Domestic and overseas advanced technology
The KLC laminar flow ceiling is leading a domestic and foreign resistance drain layer technology. The use of this equipment can be reasonable distribution of clean room airflow, and to effectively guarantee the indoor cleanliness.
Wide field of application
Widely used in all type of clean room, cleanwards and other projects where needs a wide area of clean air.
| Item | Laminar flow Ceiling | ||
|---|---|---|---|
| Model | CL-1 | CL-2 | CL-3 |
| Cabinet | High quality galvanized steel with epoxy powder coated / Stainless steel | ||
| material size (LxWmm) | 2600*2400 | 2600*1800 | 2600*1400 |
| Velocity (m/s) | 0.45 | 0.3 | 0.25 |
| Efficiency(%@0.3um) | 99.99~99.9995 | 99.99~99.9995 | 99.99~99.9995 |
| Filter type | Mini-pleat filter / V-bank filter | ||
| Occasion | Class I super clean operating room | Class II super clean operating room | Class III super clean operating room |
⚙️Optional Configuration
- Air flow stabiliser
- Fluff separator
- Pressure relief damper
- Air volume control damper
⚙️Parameter
- 1. Hanging rings
- 2. Cabinet
- 3. HEPA filter
- 4. Filter housing
- 5. DP gauge
- 6. Diffuser
- 7. Flange
