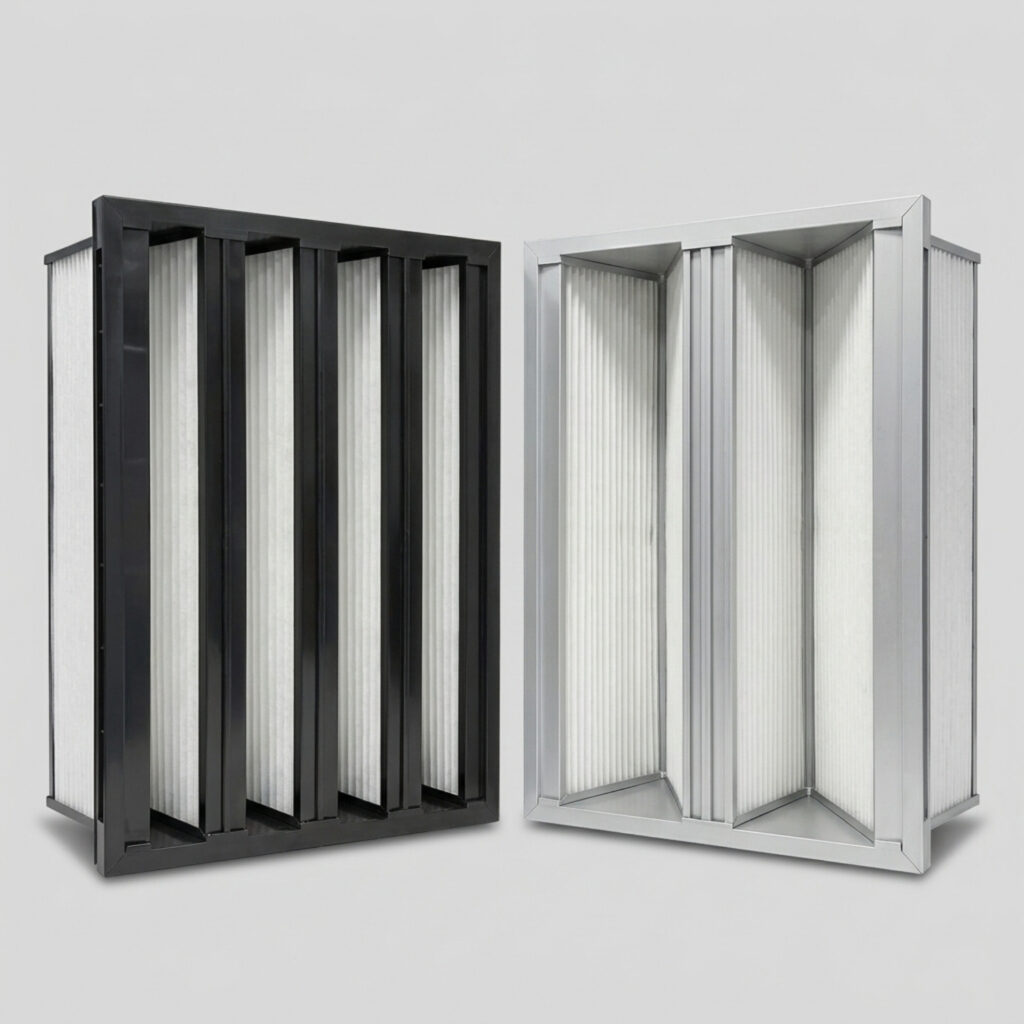

V- bank Filter
Adaptive Efficiency: M5, M6, F7, F8, F9
Product Features
- High efficiency
- Low resistance
- Large dust capacity
- Light weight and easy installation
+44 7479 496191
Call
info@filtravo.com
Application
1.Aviation, electronic, semiconductor, wafer, biological pharmaceutical, hospital, food processing and other high clean class occasions. 2.Used as the front filtration level for HEPA filter
Material and Operation Conditions
| Media | Micro glass fiber / Synthetic fiber |
| Frame | Sheet Aluminum / Galvanized / Plastic |
| Sealant | Two-component polyurethane glue |
| Gasket | EVA / EPDM |
| Separator | Hot melt bead |
| Optional frame thickness | 292 400 |
| Max. Temperature | 70°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
610*610*292
Technology Parameters
* Customized design is available| Model | Nominal size(inch) (WxHxD) |
Actual size(mm) (WxHxD) |
Air flow (m³/h) |
Initial Pressure (≤Pa) |
Media area (m²) |
Velocity (m/s) |
Filter grade (EN779) |
Filter grade (ISO16890) |
Pack no. |
|---|---|---|---|---|---|---|---|---|---|
| KV-B-001 | 12×12×12 | 287×287×292 | 550 | 80 | 3.24 | 1.85 | M6 | ePM10 70% | 2 |
| KV-B-002 | 12×24×12 | 287×592×292 | 1200 | 80 | 7.28 | 1.96 | M6 | ePM10 70% | 2 |
| KV-B-003 | 24×12×12 | 592×287×292 | 1000 | 80 | 6.49 | 1.63 | M6 | ePM10 70% | 4 |
| KV-B-004 | 24×20×12 | 592×490×292 | 1900 | 80 | 11.82 | 1.81 | M6 | ePM10 70% | 4 |
| KV-B-005 | 24×24×12 | 592×592×292 | 2400 | 80 | 14.55 | 1.89 | M6 | ePM10 70% | 4 |
| KV-B-006 | 24×12×12 | 592×287×292 | 1000 | 100 | 6.49 | 1.63 | F7 | ePM1 60% | 4 |
| KV-B-007 | 24×20×12 | 592×490×292 | 1900 | 100 | 11.82 | 1.81 | F7 | ePM1 60% | 4 |
| KV-B-008 | 24×24×12 | 592×592×292 | 2400 | 100 | 14.55 | 1.89 | F7 | ePM1 60% | 4 |
| KV-B-009 | 24×12×12 | 592×287×292 | 1000 | 120 | 6.49 | 1.63 | F8 | ePM1 70% | 4 |
| KV-B-010 | 24×20×12 | 592×490×292 | 1900 | 120 | 11.82 | 1.81 | F8 | ePM1 70% | 4 |
| KV-B-011 | 24×24×12 | 592×592×292 | 2400 | 120 | 14.55 | 1.89 | F8 | ePM1 70% | 4 |
| KV-B-012 | 24×12×12 | 592×287×292 | 1000 | 150 | 6.49 | 1.63 | F9 | ePM1 80% | 4 |
| KV-B-013 | 24×20×12 | 592×490×292 | 1900 | 150 | 11.82 | 1.81 | F9 | ePM1 80% | 4 |
| KV-B-014 | 24×24×12 | 592×592×292 | 2400 | 150 | 14.55 | 1.89 | F9 | ePM1 80% | 4 |
| KV-B-015 | 12×12×12 | 287×287×292 | 700 | 80 | 4.33 | 2.36 | M6 | ePM10 70% | 2 |
| KV-B-016 | 12×24×12 | 287×592×292 | 1500 | 80 | 9.7 | 2.44 | M6 | ePM10 70% | 2 |
| KV-B-017 | 24×12×12 | 592×287×292 | 1400 | 80 | 8.65 | 2.28 | M6 | ePM10 70% | 4 |
| KV-B-018 | 24×20×12 | 592×490×292 | 2600 | 80 | 15.76 | 2.48 | M6 | ePM10 70% | 4 |
| KV-B-019 | 24×24×12 | 592×592×292 | 3200 | 80 | 19.4 | 2.52 | M6 | ePM10 70% | 4 |
| KV-B-020 | 24×12×12 | 592×287×292 | 1400 | 100 | 8.65 | 2.28 | F7 | ePM1 60% | 4 |
| KV-B-021 | 24×20×12 | 592×490×292 | 2600 | 100 | 15.76 | 2.48 | F7 | ePM1 60% | 4 |
| KV-B-022 | 24×24×12 | 592×592×292 | 3200 | 100 | 19.4 | 2.52 | F7 | ePM1 60% | 4 |
| KV-B-023 | 24×12×12 | 592×287×292 | 1400 | 120 | 8.65 | 2.28 | F8 | ePM1 70% | 4 |
| KV-B-024 | 24×20×12 | 592×490×292 | 2600 | 120 | 15.76 | 2.48 | F8 | ePM1 70% | 4 |
| KV-B-025 | 24×24×12 | 592×592×292 | 3200 | 120 | 19.4 | 2.52 | F8 | ePM1 70% | 4 |
| KV-B-026 | 24×24×16 | 592×592×400 | 4250 | 120 | 26.94 | 3.35 | F8 | ePM1 70% | 4 |
| KV-B-027 | 24×12×12 | 592×287×292 | 1400 | 150 | 8.65 | 2.28 | F9 | ePM1 80% | 4 |
| KV-B-028 | 24×20×12 | 592×490×292 | 2600 | 150 | 15.76 | 2.48 | F9 | ePM1 80% | 4 |
| KV-B-029 | 24×24×12 | 592×592×292 | 3200 | 150 | 19.4 | 2.52 | F9 | ePM1 80% | 4 |
| KV-B-030 | 24×24×16 | 592×592×400 | 4250 | 150 | 26.94 | 3.35 | F9 | ePM1 80% | 4 |
