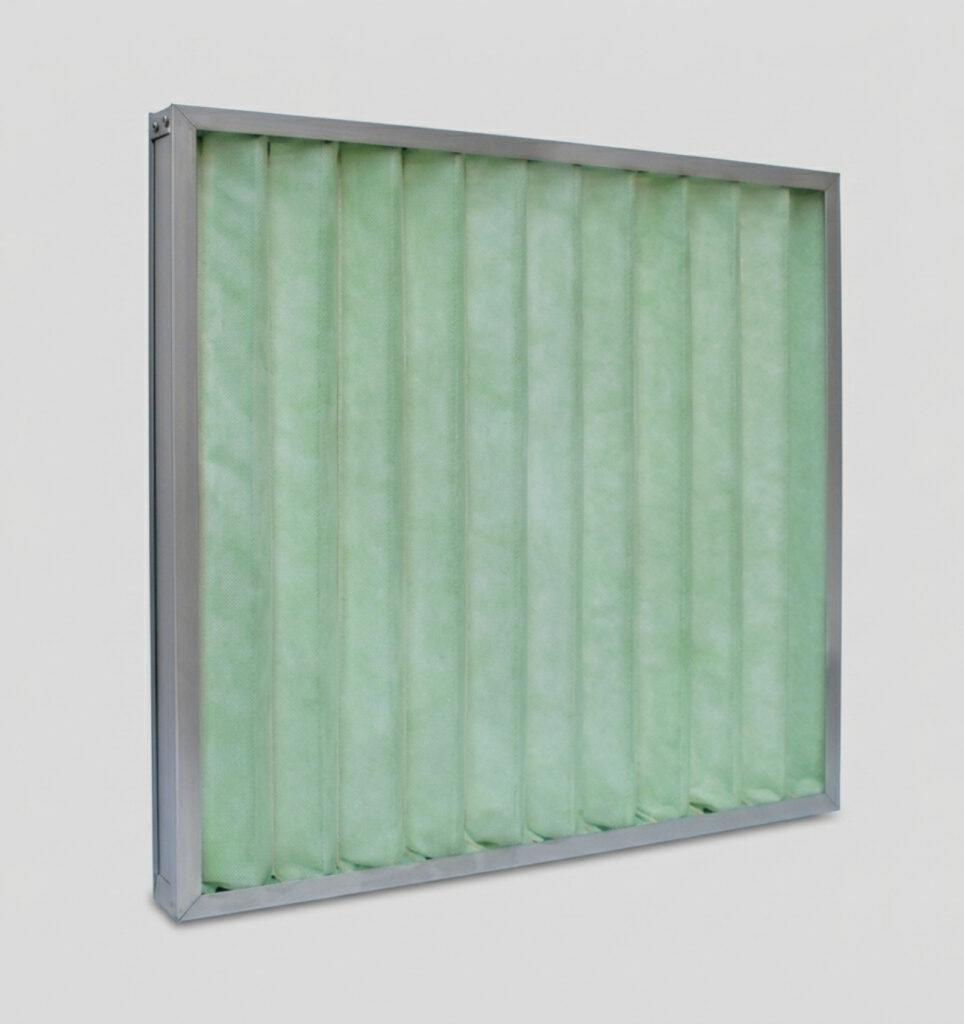

Knock-down Type Pleated Filter Ecopleat
Adaptive Efficiency: G1, G2, G3, G4
Product Features
- Large dust holding capacity
- Not easily deformed and damaged, suitable for poor working conditions
- Reused washable media cleaning by water
- Long life-span of media
- Reuseable frame
- 100% Factory inspection
+44 7479 496191
Call
info@filtravo.com
Application
Office, conference room, hospitals, airports and other large building ventilation and air conditioning system or common industrial plant and clean room air distribution system for pre-filtration.
Material and Operation Conditions
| Media | Polyester fiber cotton |
| Frame | Extruded aluminum / Galvanized / Sheet aluminum / Stainless steel |
| Optional aluminum frame thickness(mm) | 46 50 69 80 90 96 |
| Max. Temperature | 50°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
Technology Parameters
* Customized design is available
| Model | Nominal size(inch)(WxHxD) |
Actual size(mm)(WxHxD) |
Air flow(m³/h) | Initial pressure(⩽Pa) | Media area(m²) | Velocity(m/s) | Filter grade(EN779) | Filter grade(ISO16890) |
|---|---|---|---|---|---|---|---|---|
| K42-001 | 12×12×1 | 287×287×21 | 750 | 50 | 0.28 | 1.22 | G4 | Coarse 65% |
| K42-002 | 24×12×1 | 594×287×21 | 800 | 50 | 0.29 | 1.28 | G4 | Coarse 65% |
| K42-003 | 12×12×2 | 287×287×46 | 550 | 50 | 0.20 | 1.85 | G4 | Coarse 65% |
| K42-004 | 24×12×2 | 594×287×46 | 1000 | 50 | 0.39 | 1.63 | G4 | Coarse 65% |
| K42-005 | 24×20×2 | 594×490×46 | 1500 | 50 | 0.58 | 1.70 | G4 | Coarse 65% |
| K42-006 | 24×24×2 | 594×594×46 | 2150 | 50 | 0.80 | 1.69 | G4 | Coarse 65% |
| K42-007 | 12×12×4 | 287×287×96 | 800 | 50 | 0.29 | 2.70 | G4 | Coarse 65% |
| K42-008 | 24×12×4 | 594×287×96 | 1500 | 50 | 0.57 | 2.44 | G4 | Coarse 65% |
| K42-009 | 24×20×4 | 594×490×96 | 2500 | 50 | 0.97 | 2.39 | G4 | Coarse 65% |
| K42-010 | 24×24×4 | 594×594×96 | 3200 | 50 | 1.17 | 2.52 | G4 | Coarse 65% |
| K42-011 | 12×12×1 | 287×287×21 | 1450 | 50 | 0.54 | 2.36 | G4 | Coarse 65% |
| K42-012 | 24×12×1 | 594×287×21 | 1500 | 50 | 0.55 | 2.40 | G4 | Coarse 65% |
| K42-013 | 12×12×2 | 287×287×46 | 2000 | 50 | 0.75 | 3.26 | G4 | Coarse 65% |
| K42-014 | 24×12×2 | 594×287×46 | 3000 | 50 | 1.1 | 3.40 | G4 | Coarse 65% |
| K42-015 | 24×20×2 | 594×490×46 | 3500 | 50 | 1.3 | 3.31 | G4 | Coarse 65% |
| K42-016 | 24×24×2 | 594×594×46 | 4200 | 50 | 1.55 | 3.31 | G4 | Coarse 65% |
| K42-017 | 12×12×4 | 287×287×96 | 3000 | 50 | 1.09 | 4.89 | G4 | Coarse 65% |
| K42-018 | 24×12×4 | 594×287×96 | 4250 | 50 | 1.57 | 4.82 | G4 | Coarse 65% |
| K42-019 | 24×20×4 | 594×490×96 | 5000 | 50 | 1.86 | 4.72 | G4 | Coarse 65% |
| K42-020 | 24×24×4 | 594×594×96 | 6000 | 50 | 2.22 | 4.72 | G4 | Coarse 65% |
