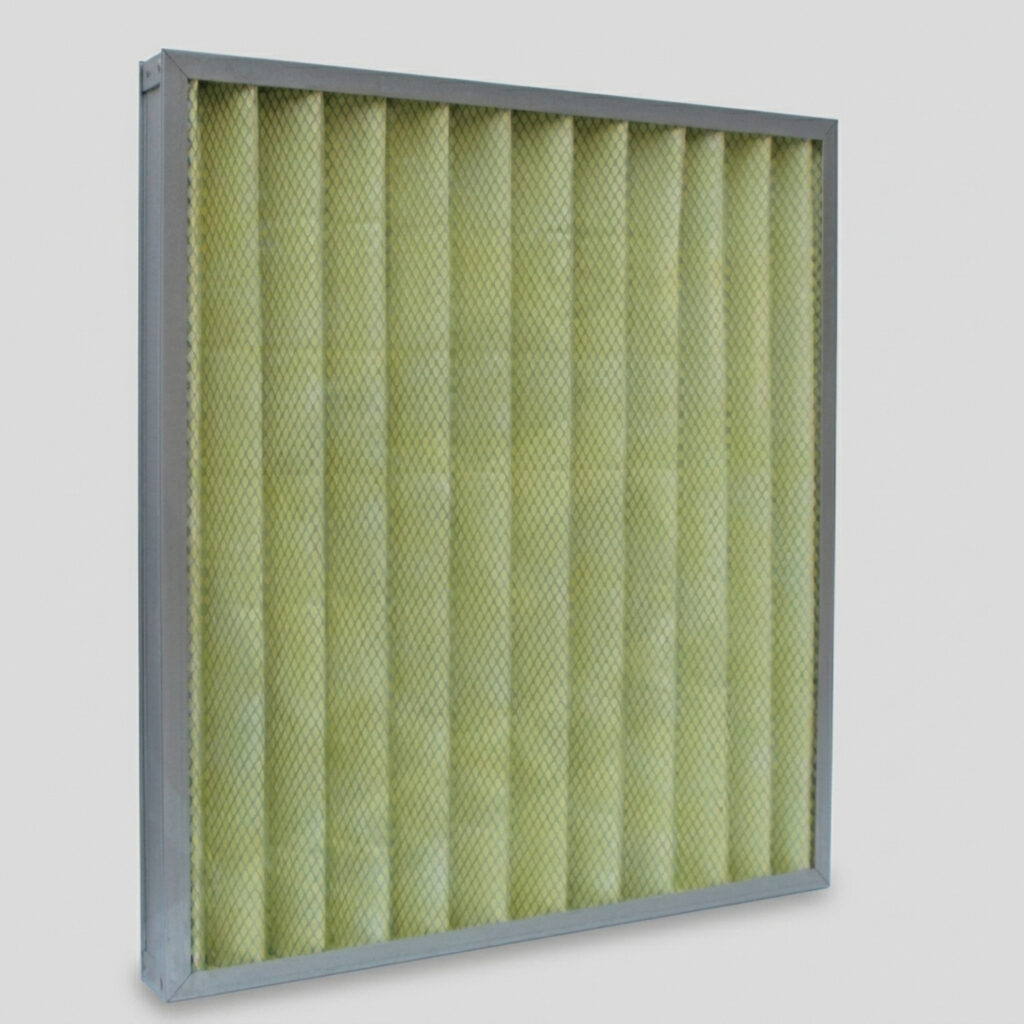

Pleated Medium Filter Ecopleat
Adaptive Efficiency: M5, M6, F7, F8, F9
Product Features
- Surface mesh used by rust treatment process, good appearance and durable
- Save space
- Washable (Limited) ratio
- Not easily deformation
- Large media area
- Washable (Limited) ratio
- Large dust holding capacity
- Long life-span
- 100% Factory inspection
+44 7479 496191
Call
info@filtravo.com
Application
Electronic, pharmaceutical, mechanical instruments, metallurgy,petroleum, chemical, light industry, food and other areas of thegeneral air purification.
Material and Operation Conditions
| Media | Synthetic fiber / non-woven fabrics |
| Sealant | White latex or universal glue |
| Frame | Extruded aluminum / Galvanized Aluminum sheet / Cardboard |
| Optional aluminum frame thickness(mm) | 21 25 46 50 69 80 90 96 |
| Max. Temperature | 50°C |
| Max. Humidity | Cardboard frame: 70% Other frame material: 100% |
Air Flow & Resistance Diagram
594*594*46
Technology Parameters
* Customized design is available| Model | Nominal size(inch)(WxHxD) | Actual size(mm)(WxHxD) | Air flow(m³/h) | Initial pressure(≤Pa) | Media area(m²) | Velocity(m/s) | Filter grade(EN779) | Filter grade(ISO16890) |
|---|---|---|---|---|---|---|---|---|
| K41-B-001 | 24×12×2 | 594×287×46 | 250 | 50 | 0.39 | 0.41 | M5 | ePM10 55% |
| K41-B-002 | 24×24×2 | 594×594×46 | 550 | 50 | 0.8 | 0.43 | M5 | ePM10 55% |
| K41-B-003 | 24×24×4 | 594×594×96 | 750 | 50 | 1.17 | 0.59 | M5 | ePM10 55% |
| K41-B-004 | 24×12×2 | 594×287×46 | 250 | 65 | 0.39 | 0.41 | M6 | ePM10 60% |
| K41-B-005 | 24×24×2 | 594×594×46 | 550 | 65 | 0.8 | 0.43 | M6 | ePM10 60% |
| K41-B-006 | 24×24×4 | 594×594×96 | 750 | 65 | 1.17 | 0.59 | M6 | ePM10 60% |
| K41-B-007 | 24×12×2 | 594×287×46 | 250 | 80 | 0.39 | 0.41 | F7 | ePM10 70% |
| K41-B-008 | 24×24×2 | 594×594×46 | 550 | 80 | 0.8 | 0.43 | F7 | ePM10 70% |
| K41-B-009 | 24×24×4 | 594×594×96 | 750 | 80 | 1.17 | 0.59 | F7 | ePM10 70% |
| K41-B-010 | 24×12×2 | 594×287×46 | 250 | 100 | 0.39 | 0.41 | F8 | ePM10 80% |
| K41-B-011 | 24×24×2 | 594×594×46 | 550 | 100 | 0.8 | 0.43 | F8 | ePM10 80% |
| K41-B-012 | 24×24×4 | 594×594×96 | 750 | 100 | 1.17 | 0.59 | F8 | ePM10 80% |
| K41-B-013 | 24×12×2 | 594×287×46 | 250 | 120 | 0.39 | 0.41 | F9 | ePM10 85% |
| K41-B-014 | 24×24×2 | 594×594×46 | 550 | 120 | 0.8 | 0.43 | F9 | ePM10 85% |
| K41-B-015 | 24×24×4 | 594×594×96 | 750 | 120 | 1.17 | 0.59 | F9 | ePM10 85% |
