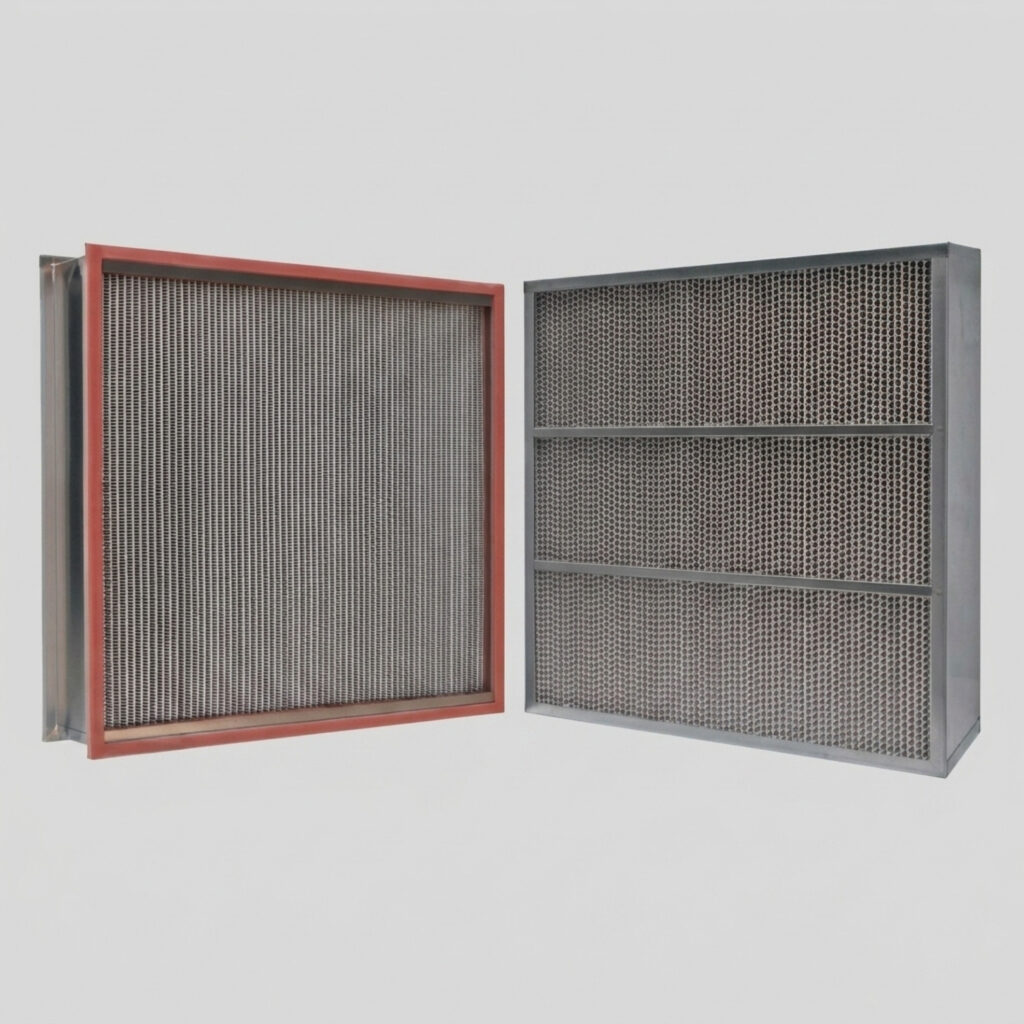

High Temperature Separator Filter
Adaptive Efficiency: E10, E11, E12, H13, H14
Product Features
- Able to be used at stated high temperature for long time
- Big media area and high efficiency
- Large air flow and low resistance
- Wedge shaped pleat design to prevent the filter media from damage
- 100% factory inspection
+44 7479 496191
Call
info@filtravo.com
Application
Places with high requirement of cleanliness, such as nuclear power plant, spray paint booth, etc. Air conditioning and ventilation system(terminal filtration and hot wind type high temperature oven).
Material and Operation Conditions
| Media | Micro glass fiber |
| Frame | Aluminum / SUS201 / SUS304 (260°C) Aluminized |
| Sealant | Red silicone(260°C ) Ceramic adhesive(350°C ) |
| Gasket | Silicon gel gasket (260°C ) PTFE / Glass fiber rope (350°C ) |
| Separator | Aluminum foil |
| Optional frame thickness(mm) | 80 96 120 150 220 292 305 |
| Max. Temperature | 260°C 350°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
610*610*292
Technology Parameters
* Customized design is available| Model | Size(inch) (WxHxD) |
Size(mm) (HxWxD) |
Air flow (m³/h) |
Initial pressure (≤Pa) |
Media area (m²) |
Velocity (m/s) |
Filter grade (EN1822) |
Max. Temperature (°C) |
|---|---|---|---|---|---|---|---|---|
| K84-001 | 24×12×6 | 610×305×150 | 500 | 100 | 4.41 | 0.75 | E10 | 260 |
| K84-002 | 24×24×6 | 610×610×150 | 1000 | 100 | 9.3 | 0.75 | E10 | 260 |
| K84-003 | 24×12×12 | 610×305×292 | 1000 | 100 | 9.67 | 1.49 | E10 | 260 |
| K84-004 | 24×24×12 | 610×610×292 | 2150 | 100 | 20.41 | 1.61 | E10 | 260 |
| K84-005 | 36×24×12 | 915×610×292 | 3200 | 100 | 30.61 | 1.59 | E10 | 260 |
| K84-006 | 48×24×12 | 1220×610×292 | 4250 | 100 | 40.81 | 1.59 | E10 | 260 |
| K84-007 | 24×12×6 | 610×305×150 | 500 | 200 | 4.41 | 0.75 | H13 | 260 |
| K84-008 | 24×24×6 | 610×610×150 | 1000 | 200 | 9.3 | 0.75 | H13 | 260 |
| K84-009 | 36×24×6 | 915×610×150 | 1500 | 200 | 13.95 | 0.75 | H13 | 260 |
| K84-010 | 24×12×12 | 610×305×292 | 1000 | 200 | 9.67 | 1.49 | H13 | 260 |
| K84-011 | 24×24×12 | 610×610×292 | 2150 | 200 | 20.41 | 1.61 | H13 | 260 |
| K84-012 | 36×24×12 | 915×610×292 | 3200 | 200 | 30.61 | 1.59 | H13 | 260 |
| K84-013 | 48×24×12 | 1220×610×292 | 4250 | 200 | 40.81 | 1.59 | H13 | 260 |
| K84-014 | 24×12×6 | 610×305×150 | 500 | 220 | 4.41 | 0.75 | H14 | 260 |
| K84-015 | 24×24×6 | 610×610×150 | 1000 | 220 | 9.3 | 0.75 | H14 | 260 |
| K84-016 | 36×24×6 | 915×610×150 | 1500 | 220 | 13.95 | 0.75 | H14 | 260 |
| K84-017 | 24×12×12 | 610×305×292 | 1000 | 220 | 9.67 | 1.49 | H14 | 260 |
| K84-018 | 24×24×12 | 610×610×292 | 2150 | 220 | 20.41 | 1.61 | H14 | 260 |
| K84-019 | 36×24×12 | 915×610×292 | 3200 | 220 | 30.61 | 1.59 | H14 | 260 |
| K84-020 | 48×24×12 | 1220×610×292 | 4250 | 220 | 40.81 | 1.59 | H14 | 260 |
