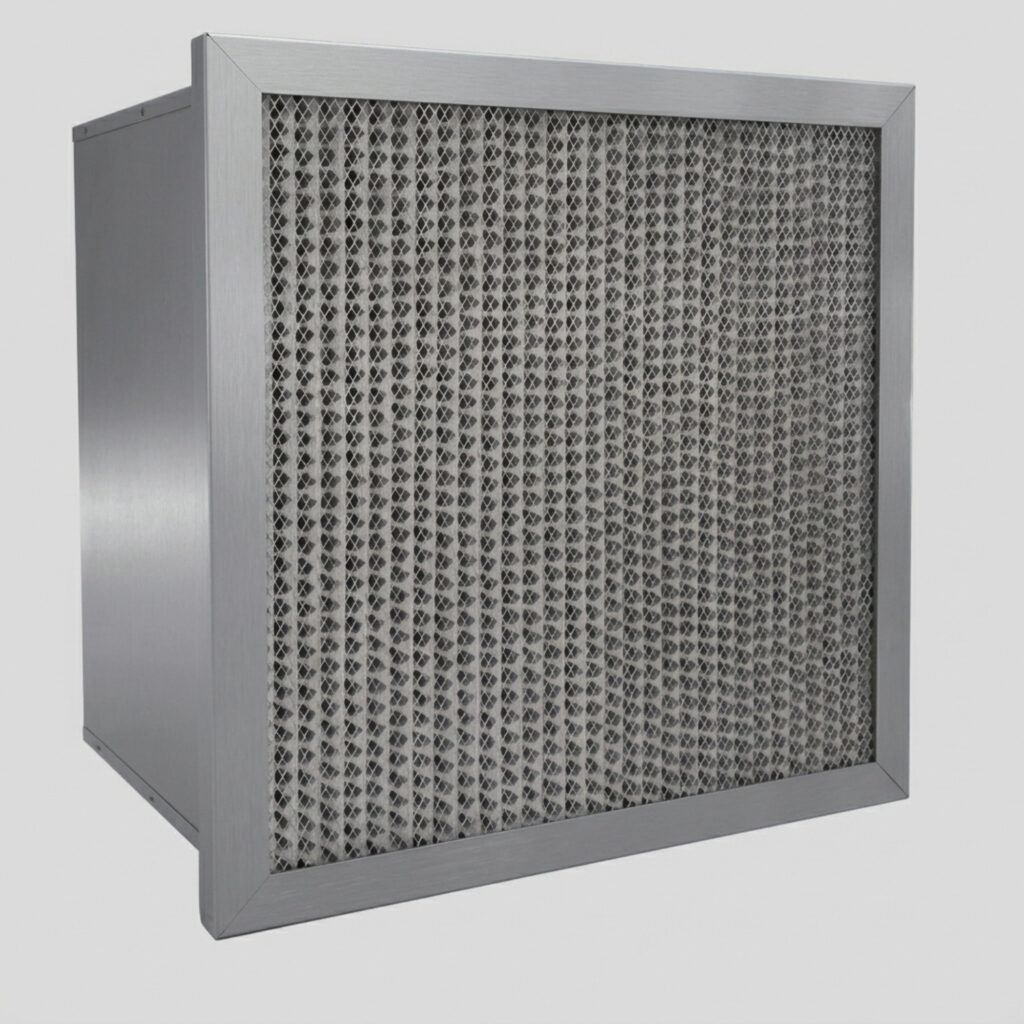

High Temperature Separator Filter
Adaptive Efficiency: M5, M6, F7, F8, F9
Product Features
- Able to be used at stated high temperature for long time
- Big media area and high efficiency
- Large air flow and low resistance
- Wedge shaped pleat design to prevent the filter media from damage
- 100% factory inspection
+44 7479 496191
Call
info@filtravo.com
Application
Places with high requirement of cleanliness, such as nuclear power plant, spray paint booth, etc. Air conditioning and ventilation system(terminal filtration and hot wind type high temperature oven).
Material and Operation Conditions
| Media | Micro glass fiber |
| Frame | Extruded aluminum / Galvanized / Stainless steel |
| Sealant | Red silicone glue |
| Gasket | Red silicone gasket |
| Separator | Corrugated aluminum foil |
| Optional aluminum frame thickness (mm) | 120 150 220 292 (Customized design is available) |
| Max. Temperature | 250°C - 300°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
594*594*292
Technology Parameters
* Customized design is available| Model | Size(inch) (WxHxD) |
Size(mm) (WxHxD) |
Air flow (m³/h) |
Initial pressure (≤Pa) |
Media area (m²) |
Velocity (m/s) |
Filter grade (EN779) |
Filter grade (ISO16890) |
|---|---|---|---|---|---|---|---|---|
| K57-CW-001 | 12×12×11.5 | 305×305×292 | 500 | 140 | 4.03 | 1.5 | F7 | ePM1 55% |
| K57-CW-002 | 24×12×11.5 | 610×305×292 | 1100 | 140 | 8.06 | 1.6 | F7 | ePM1 55% |
| K57-CW-003 | 20×20×11.5 | 508×508×292 | 1800 | 140 | 12.25 | 1.9 | F7 | ePM1 55% |
| K57-CW-004 | 24×20×11.5 | 610×508×292 | 2100 | 140 | 14.12 | 1.9 | F7 | ePM1 55% |
| K57-CW-005 | 24×24×11.5 | 610×610×292 | 2600 | 140 | 17.02 | 1.9 | F7 | ePM1 55% |
| K57-CW-006 | 12×12×11.5 | 305×305×292 | 500 | 160 | 4.03 | 1.5 | F8 | ePM1 70% |
| K57-CW-007 | 24×12×11.5 | 610×305×292 | 1100 | 160 | 8.06 | 1.6 | F8 | ePM1 70% |
| K57-CW-008 | 20×20×11.5 | 508×508×292 | 1800 | 160 | 12.25 | 1.9 | F8 | ePM1 70% |
| K57-CW-009 | 24×20×11.5 | 610×508×292 | 2100 | 160 | 14.12 | 1.9 | F8 | ePM1 70% |
| K57-CW-010 | 24×24×11.5 | 610×610×292 | 2600 | 160 | 17.02 | 1.9 | F8 | ePM1 70% |
| K57-CW-011 | 12×12×11.5 | 305×305×292 | 500 | 180 | 4.03 | 1.5 | F9 | ePM1 80% |
| K57-CW-012 | 24×12×11.5 | 610×305×292 | 1100 | 180 | 8.06 | 1.6 | F9 | ePM1 80% |
| K57-CW-013 | 20×20×11.5 | 508×508×292 | 1800 | 180 | 12.25 | 1.9 | F9 | ePM1 80% |
| K57-CW-014 | 24×20×11.5 | 610×508×292 | 2100 | 180 | 14.12 | 1.9 | F9 | ePM1 80% |
| K57-CW-015 | 24×24×11.5 | 610×610×292 | 2600 | 180 | 17.02 | 1.9 | F9 | ePM1 80% |
