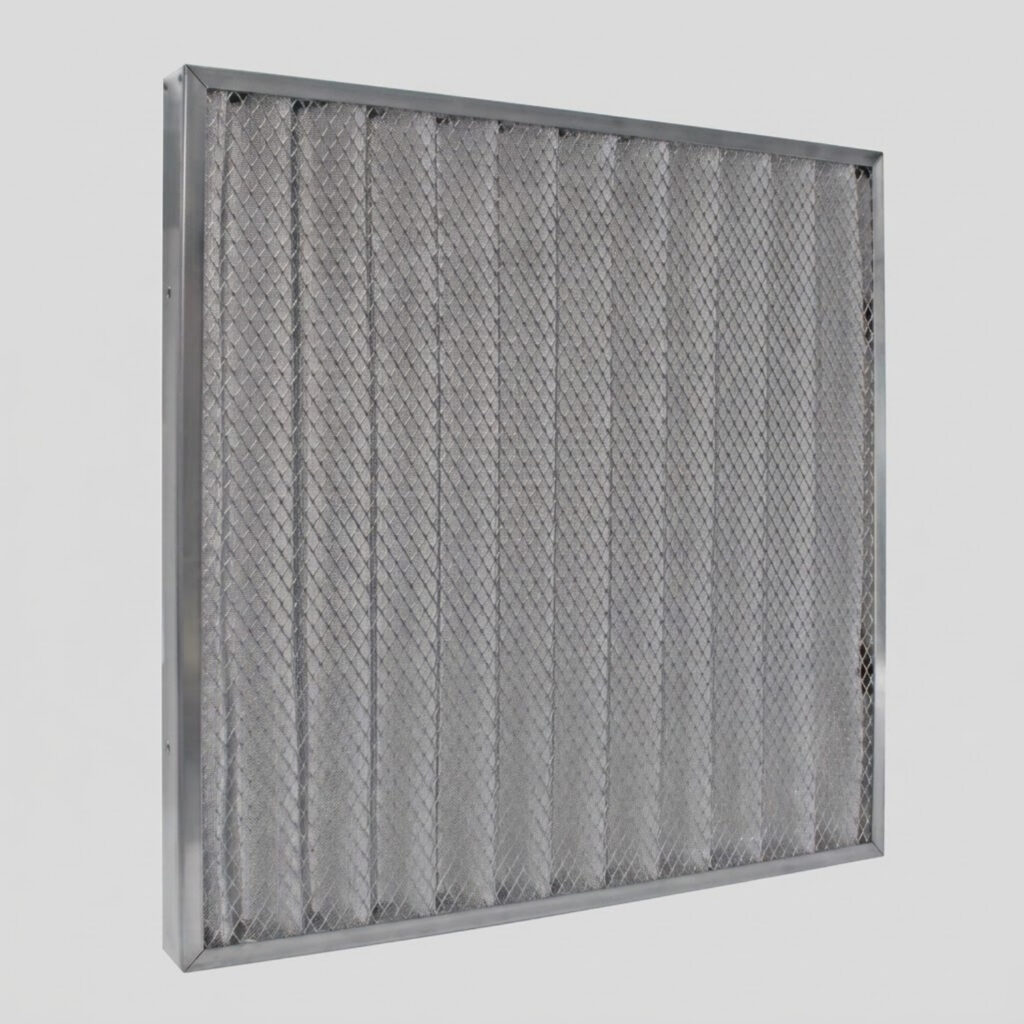

High Temperature Pre-Filter Ecopleat
Adaptive Efficiency: G
Product Features
- Plead fiber glass media with the sides , it is not easily to be damaged
- Can be normally used in a large air volume environment
- With the characteristic of non combustible
- Large media area
- Long life-span
- Large air flow & low initial resistance
- Max 300°C resistance
- 100% Factory inspection
+44 7479 496191
Call
info@filtravo.com
Application
Used in general primary filtration, hot air type high temperature oven air filtration and coating factory high temperature oven air filter.
Material and Operation Conditions
| Media | Glass fiber |
| Frame | Aluminum (< 200°C), Stainless steel (> 200°C) |
| Optional aluminum frame thickness(mm) | 21 25 46 50 69 80 90 96 |
| Max. Temperature | 300°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
Technology Parameters
* Customized design is available
| Model | Nominal size(inch)(WxHxD) |
Actual size(mm)(WxHxD) |
Air flow(m³/h) | Initial pressure(⩽Pa) | Media area(m²) | Velocity(m/s) | Filter grade(EN779) | Filter grade(ISO16890) |
|---|---|---|---|---|---|---|---|---|
| K43-001 | 24×12×1 | 594×287×21 | 750 | 45 | 0.28 | 1.22 | G3 | Coarse 45% |
| K43-002 | 24×20×1 | 594×490×21 | 1350 | 45 | 0.48 | 1.29 | G3 | Coarse 45% |
| K43-003 | 24×24×1 | 594×594×21 | 1550 | 45 | 0.58 | 1.22 | G3 | Coarse 45% |
| K43-004 | 24×12×2 | 594×287×46 | 1000 | 45 | 0.39 | 1.63 | G3 | Coarse 45% |
| K43-005 | 24×20×2 | 594×490×46 | 1800 | 45 | 0.57 | 1.72 | G3 | Coarse 45% |
| K43-006 | 24×24×2 | 594×594×46 | 2150 | 45 | 0.8 | 1.69 | G3 | Coarse 45% |
| K43-007 | 24×12×2 | 594×287×46 | 1150 | 45 | 0.43 | 1.87 | G3 | Coarse 45% |
| K43-008 | 24×20×2 | 594×490×46 | 2000 | 45 | 0.72 | 1.91 | G3 | Coarse 45% |
| K43-009 | 24×24×2 | 594×594×46 | 2350 | 45 | 0.87 | 1.85 | G3 | Coarse 45% |
| K43-010 | 35×24×2 | 890×594×46 | 3500 | 45 | 1.3 | 2.77 | G3 | Coarse 45% |
