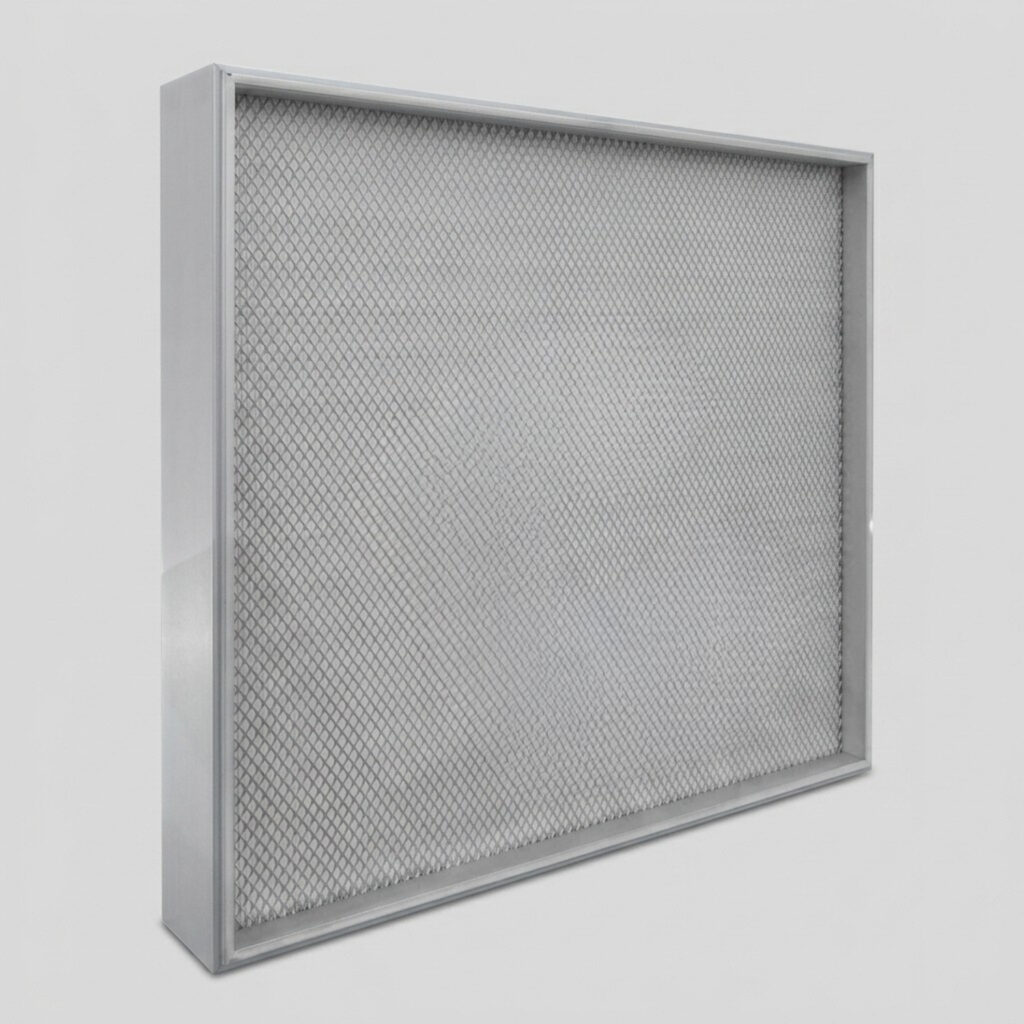

High Temperature Mini-pleat Filter
Adaptive Efficiency: M6, F7, F8, F9
Product Features
- High temperature resistance: can operate stably in high temperature environment, long-lasting performance
- High efficiency filtration: precision filter material, capture tiny particles
- High efficiency filtration: precision filter material, capture tiny particles
- Strong and durable: corrosion-resistant frame, anti-aging filter material, long life
- Low resistance: optimize airflow design, reduce energy consumption
+44 7479 496191
Call
info@filtravo.com
Application
It mainly used for harsh environments such as industrial ovens, coatings, and food high-temperature production lines.
Material and Operation Conditions
| Media | Micro glass fiber |
| Frame | Extruded aluminum / Galvanized / Stainless steel |
| Sealant | Fiber glass |
| Gasket | Fiber glass |
| Separator | Fiber glass rope |
| Optional aluminum frame thickness (mm) | 46 55 78 96 110 120 (Customized design is available) |
| Max. Temperature | 400°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
610*610*78
Technology Parameters
* Customized design is available| Model | Nominal size(inch) (WxHxD) |
Actual size(mm) (WxHxD) |
Air flow (m³/h) |
Initial pressure (≤Pa) |
Media area (m²) |
Velocity (m/s) |
Filter grade (EN779) |
Filter grade (ISO16890) |
|---|---|---|---|---|---|---|---|---|
| K57-BH-001 | 24×24×2 | 610×610×50 | 1600 | 165 | 7.49 | 1.2 | M6 | ePM10 70% |
| K57-BH-002 | 36×18×2 | 915×457×50 | 1800 | 165 | 8.37 | 1.2 | M6 | ePM10 70% |
| K57-BH-003 | 24×24×3 | 610×610×78 | 2400 | 165 | 10.86 | 1.8 | M6 | ePM10 70% |
| K57-BH-004 | 36×18×3 | 915×457×78 | 2700 | 165 | 12.14 | 1.8 | M6 | ePM10 70% |
| K57-BH-005 | 24×24×4.72 | 610×610×120 | 3400 | 165 | 12.97 | 2.5 | M6 | ePM10 70% |
| K57-BH-006 | 36×18×4.72 | 915×457×120 | 3750 | 165 | 14.49 | 2.5 | M6 | ePM10 70% |
| K57-BH-007 | 24×24×2 | 610×610×50 | 1600 | 190 | 7.49 | 1.2 | F7 | ePM1 55% |
| K57-BH-008 | 36×18×2 | 915×457×50 | 1800 | 190 | 8.37 | 1.2 | F7 | ePM1 55% |
| K57-BH-009 | 24×24×3 | 610×610×78 | 2400 | 190 | 10.86 | 1.8 | F7 | ePM1 55% |
| K57-BH-010 | 36×18×3 | 915×457×78 | 2700 | 190 | 12.14 | 1.8 | F7 | ePM1 55% |
| K57-BH-011 | 24×24×4.72 | 610×610×120 | 3400 | 190 | 12.97 | 2.5 | F7 | ePM1 55% |
| K57-BH-012 | 36×18×4.72 | 915×457×120 | 3750 | 190 | 14.49 | 2.5 | F7 | ePM1 55% |
| K57-BH-013 | 24×24×2 | 610×610×50 | 1600 | 220 | 7.49 | 1.2 | F8 | ePM1 70% |
| K57-BH-014 | 36×18×2 | 915×457×50 | 1800 | 220 | 8.37 | 1.2 | F8 | ePM1 70% |
| K57-BH-015 | 24×24×3 | 610×610×78 | 2400 | 220 | 10.86 | 1.8 | F8 | ePM1 70% |
| K57-BH-016 | 36×18×3 | 915×457×78 | 2700 | 220 | 12.14 | 1.8 | F8 | ePM1 70% |
| K57-BH-017 | 24×24×4.72 | 610×610×120 | 3400 | 220 | 12.97 | 2.5 | F8 | ePM1 70% |
| K57-BH-018 | 36×18×4.72 | 915×457×120 | 3750 | 220 | 14.49 | 2.5 | F8 | ePM1 70% |
| K57-BH-019 | 24×24×2 | 610×610×50 | 1600 | 250 | 7.49 | 1.2 | F9 | ePM1 80% |
| K57-BH-020 | 36×18×2 | 915×457×50 | 1800 | 250 | 8.37 | 1.2 | F9 | ePM1 80% |
| K57-BH-021 | 24×24×3 | 610×610×78 | 2400 | 250 | 10.86 | 1.8 | F9 | ePM1 80% |
| K57-BH-022 | 36×18×3 | 915×457×78 | 2700 | 250 | 12.14 | 1.8 | F9 | ePM1 80% |
| K57-BH-023 | 24×24×4.72 | 610×610×120 | 3400 | 250 | 12.97 | 2.5 | F9 | ePM1 80% |
| K57-BH-024 | 36×18×4.72 | 915×457×120 | 3750 | 250 | 14.49 | 2.5 | F9 | ePM1 80% |
