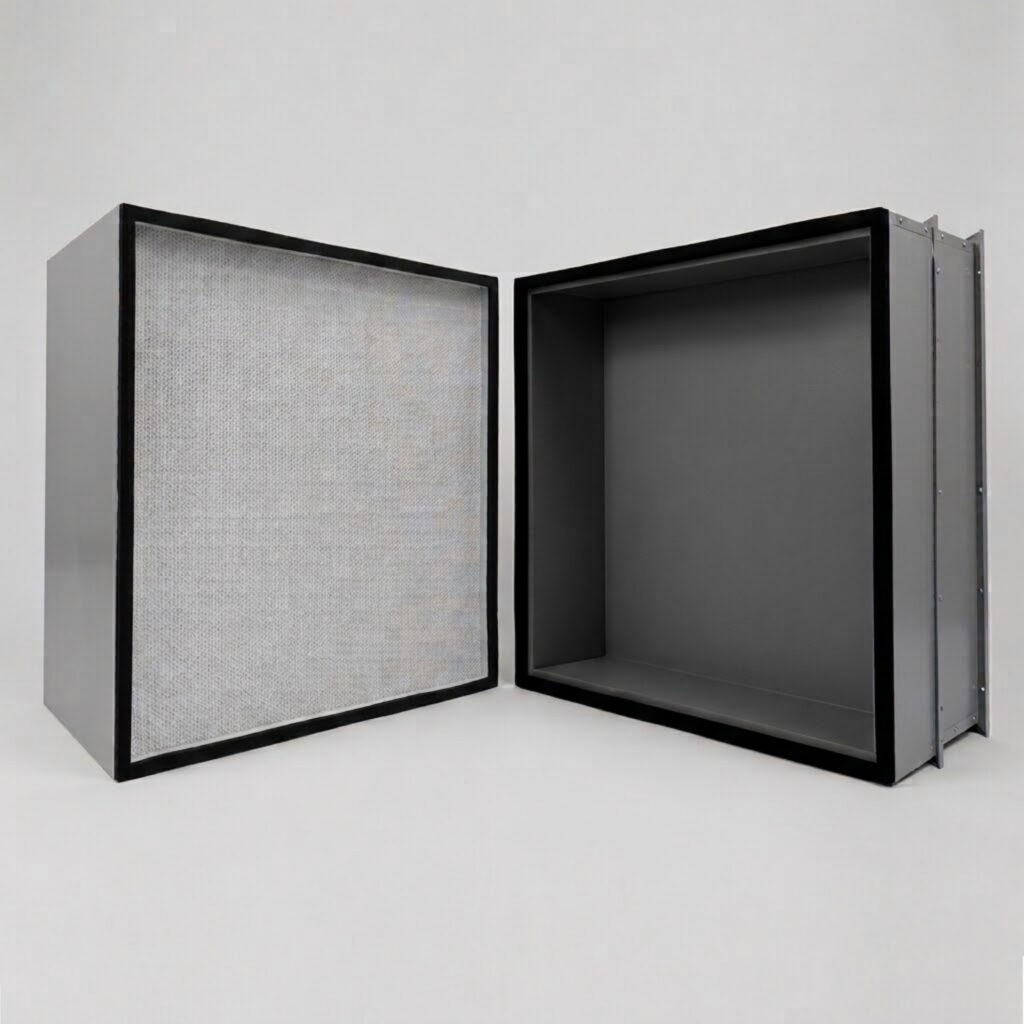

HC Mini-Pleat Filter
Adaptive Efficiency: E10, E11, E12, H13, H14 ,U15, U16, U17
Product Features
- Light weight, convenient installation and replacement
- High cost performance and extensive application
- Stable efficiency and uniform air flow
- Small volume to save space
- Lower resistance
- 100% factory inspection
+44 7479 496191
Call
info@filtravo.com
Application
HEPA Filter: Used for final clean room filtration.
ULPA Filter: Suitable for high-cleanliness areas like surgery rooms,
labs, pharmacies, electronics, optical fiber, and food factories.
Material and Operation Conditions
| Media | Micro glass fiber |
| Frame | Extruded aluminum / Sheet aluminum / Galvanized / Stainless steel / MDF |
| Sealant | Two-component polyurethane glue |
| Gasket | PU endless gasket / EVA / EPDM |
| Aluminum profile optional thickness (mm) | 120 150 220 292 |
| Max. Temperature | 70°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
610*610*292
Technology Parameters
* Customized design is available| Model | Size(inch) (WxHxD) |
Size(mm) (WxHxD) |
Air flow (m³/h) |
Initial pressure (≤Pa) |
Media area (m²) |
Velocity (m/s) |
Filter grade (EN1822) |
|---|---|---|---|---|---|---|---|
| K57-AX-001 | 12 × 24 × 6 | 305×610×150 | 300 | 75 | 7.50 | 0.45 | H13 |
| K57-AX-002 | 24 × 24 × 6 | 610×610×150 | 600 | 75 | 15.81 | 0.45 | H13 |
| K57-AX-003 | 12 × 24 × 6 | 305×610×150 | 300 | 80 | 7.50 | 0.45 | H14 |
| K57-AX-004 | 24 × 24 × 6 | 610×610×150 | 600 | 80 | 15.81 | 0.45 | H14 |
| K57-AX-005 | 12 × 24 × 8.66 | 305×610×220 | 300 | 65 | 9.95 | 0.45 | H13 |
| K57-AX-006 | 24 × 24 × 8.66 | 610×610×220 | 600 | 65 | 20.98 | 0.45 | H13 |
| K57-AX-007 | 12 × 24 × 8.66 | 305×610×220 | 300 | 70 | 9.95 | 0.45 | H14 |
| K57-AX-008 | 24 × 24 × 8.66 | 610×610×220 | 600 | 70 | 20.98 | 0.45 | H14 |
| K57-AX-009 | 12 × 24 × 12 | 305×610×292 | 300 | 45 | 15.02 | 0.45 | H13 |
| K57-AX-010 | 24 × 24 × 12 | 610×610×292 | 600 | 45 | 31.68 | 0.45 | H13 |
| K57-AX-011 | 12 × 24 × 12 | 305×610×292 | 300 | 50 | 15.02 | 0.45 | H14 |
| K57-AX-012 | 24 × 24 × 12 | 610×610×292 | 600 | 50 | 31.68 | 0.45 | H14 |
