Hand Cleaner
1
Effective Function
Small size, good looking, with a mirror on the top for personal apperance setup;Automatic control, complete the operation of hand washing and drying automatically. Can reduce the drying time if rub hands when drying.
2
Install location

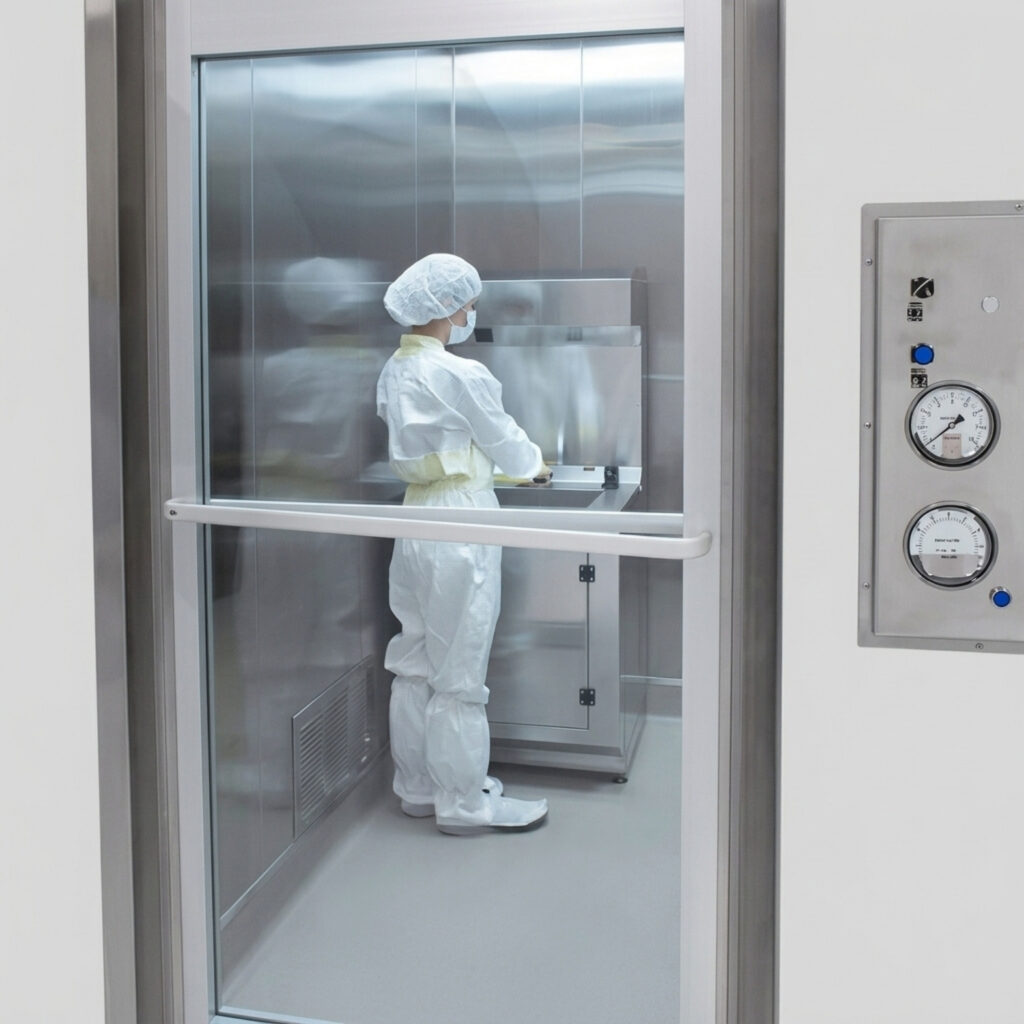

The entrance to the clean room or inside the biological laboratory.
3
Customized support
Customized design is available.
4
Application
Electronics, national defense , precision instruments, pharmacy, chemical, agricultural, biological lab and various types of scientific laboratory, etc.
| Item | Hand Cleaner |
|---|---|
| Model | HC-001 |
| External size (W*L*H)mm | 640*460*1170 |
| Operation way | Automatic wash and dry |
| Cabinet material | High quality epoxy powder coated / Stainless steel |
| Work zone material | Stainless steel 304 |
| Noise | ≤75dB(A) |
| The person per circle | Single person |
| Air velocity | ≥50m/s |
| Power supply | 220V 50Hz |
| Power | 1KW |

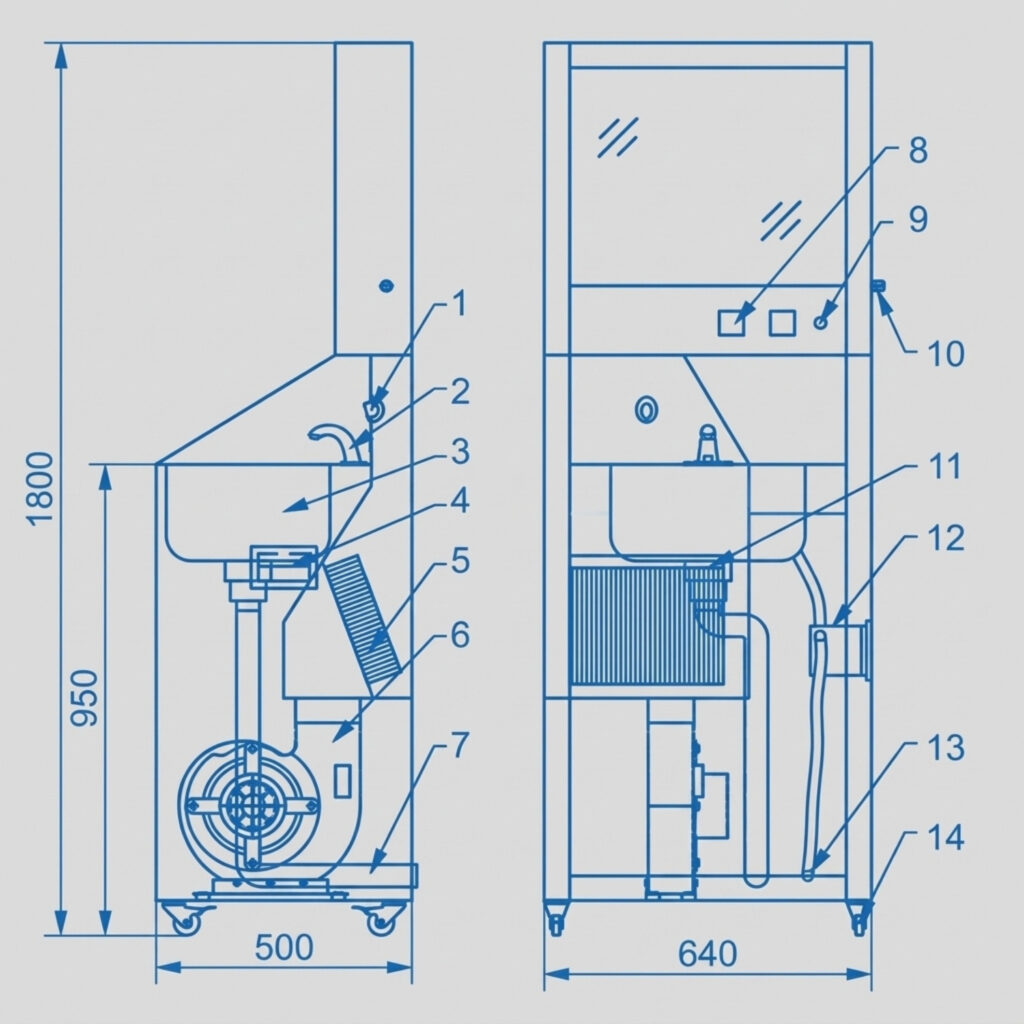

⚙️Parameter
- 1. Air outlet
- 2. Water faucet with sensor
- 3. Stainless steel flume
- 4. Handle
- 5. Pre filter
- 6. Fan
- 7. Drain pipe
- 8. Time relay
- 10. Power connector
- 11. Infrared sensor
- 12. Control box for water faucet with sensor
- 13. Water inlet port
- 14. Universal wheel
