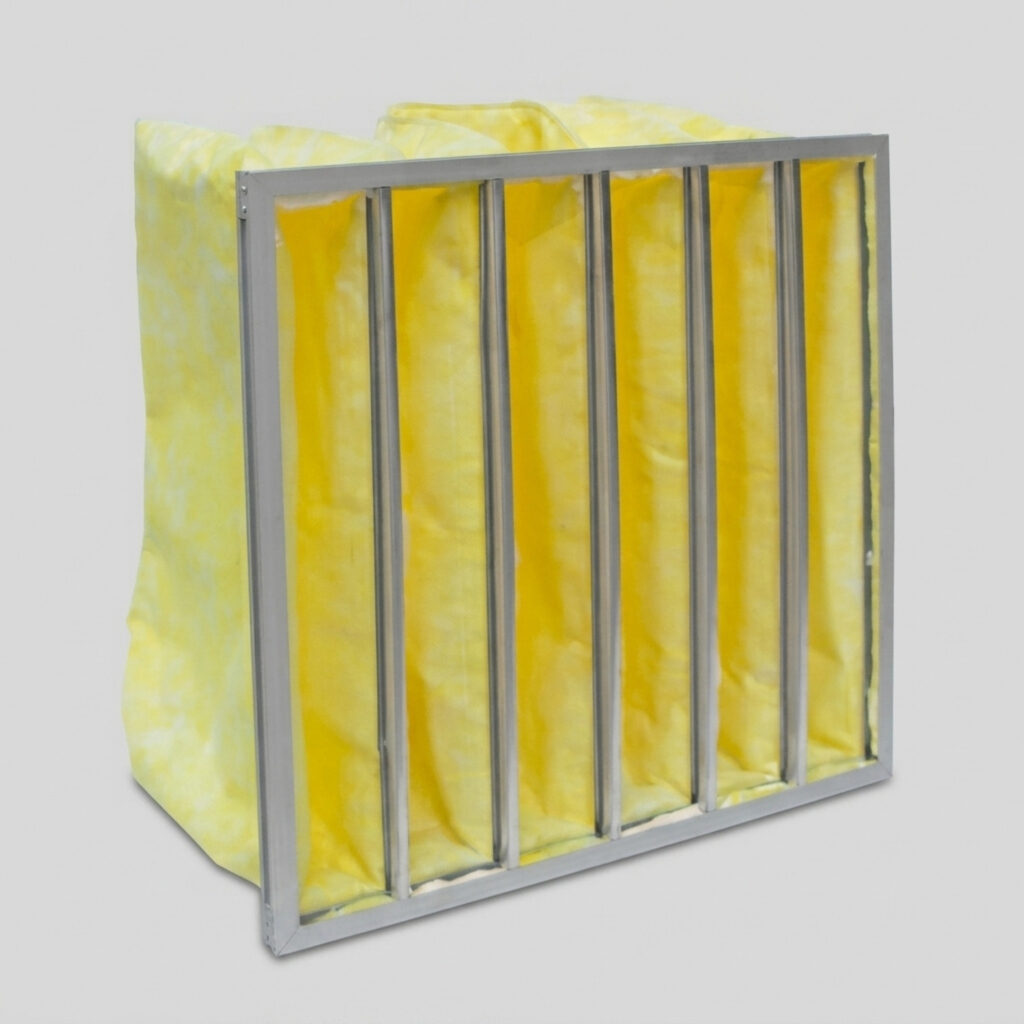

Glass Fiber Pocket Filter Bag-GM

Adaptive Efficiency: M5, M6, F7, F8

Product Features

+44 7479 496191

Call

info@filtravo.com

hhe best ideal for fire certification company to use, and ideal configuration for ventilation air conditioning system.

Media	Micro glass fiber
Pocket type	Ultrasonic bag
Frame	Extruded aluminum / Galvanized / Plastic
Optional aluminum thickness(mm)	21 25
Max. Temperature	70°C
Max. Humidity	100%

594*594*381-6P

* Customized design is available

Model	Nominal size(inch) (WxHxD)	Actual size(mm) (WxHxD)	Air flow (m³/h)	Initial Pressure (≤Pa)	Media area (m²)	Velocity (m/s)	Filter grade (EN779)	Filter grade (ISO16890)	Pocket no.
KP9-001	24×24×22	594×594×560	3000	40	4.55	2.36	M5	ePM10 55%	6
KP9-002	24×24×22	594×594×560	3800	40	5.85	2.99	M5	ePM10 55%	8
KP9-003	24×24×26	594×594×660	4450	40	6.89	3.50	M5	ePM10 55%	8
KP9-004	24×24×26	594×594×660	4900	40	8.42	3.86	M5	ePM2.5 50%	10
KP9-005	24×24×22	594×594×560	3000	60	4.55	2.36	M6	ePM2.5 50%	6
KP9-006	24×24×22	594×594×560	3800	60	5.85	2.99	M6	ePM2.5 50%	8
KP9-007	24×24×26	594×594×660	4450	60	6.89	3.50	M6	ePM2.5 50%	8
KP9-008	24×24×26	594×594×660	4900	60	8.42	3.86	M6	ePM2.5 50%	10
KP9-009	12×24×15	287×594×381	1000	90	1.54	1.63	F7	ePM1 60%	3
KP9-010	24×24×15	594×594×381	2000	90	3.09	1.57	F7	ePM1 60%	6
KP9-011	24×24×22	594×594×560	3000	90	4.55	2.36	F7	ePM1 60%	6
KP9-012	24×24×22	594×594×560	3800	90	5.85	2.99	F7	ePM1 60%	8
KP9-013	24×24×26	594×594×660	4450	90	6.89	3.50	F7	ePM1 60%	8
KP9-014	24×24×26	594×594×660	4900	90	8.42	3.86	F7	ePM1 60%	10
KP9-015	12×24×15	287×594×381	1000	130	1.54	1.63	F8	ePM1 70%	3
KP9-016	24×24×15	594×594×381	2000	130	3.09	1.57	F8	ePM1 70%	6
KP9-017	24×24×22	594×594×560	3000	130	4.55	2.36	F8	ePM1 70%	6
KP9-018	24×24×22	594×594×560	3800	130	5.85	2.99	F8	ePM1 70%	8
KP9-019	24×24×26	594×594×660	4450	130	6.89	3.50	F8	ePM1 70%	8
KP9-020	24×24×26	594×594×660	4900	130	8.42	3.86	F8	ePM1 70%	10
