Fresh Air Cainet
Product overview
The Fresh Air Cainet is for outdoor air supply to clean room, also can be air exhaust from clean room to outdoor. It can perfectly take the place of HVAC system for clean air supply.
Advantage
The design is for long distance air supply or discharge, which has advantages of maintenance free, little vibration, low noise and big power air supply. Hanging or floor mounting freely.
Flexible air flow supply
The airflow can be customized through cabinet dimension and filters quantity to suits different room sizes and different application.
Flexible air supply
The flange has the square and round style, compact structure, reliable sealing, and damper for options.
Well-designed filtration system
Multi-filtration systems, optional combination of Pre-filter, carbon filter, UV lamp, medium filter till HEPA filter in the cabinet, to offer comprehensive filtration efficiency and sterilization effect. Pre filter is know-down type of reused frame, meida replace only, cost save, wahsable, good appearance and durable. The HEPA Filter apply special seamless sealing technology,more durability and better air tightness. Good appearance, convenient installation, easy maintenance, light weight.
| Item | Fresh Air Cabinet | ||||
|---|---|---|---|---|---|
| Model | FAC-450 | FAC-700 | AFC-2000 | AFC-3000 | AFC-7500 |
| Material | Cold rolled steel with epoxy powder coated / stainless steel 304 | ||||
| Cabinet size (W*L*Hmm) | 328*880*338 | 328*880*338 | 800*1200*800 | 800*1350*800 | 1450*1500*800 |
| Fan type | EC centrifugal fan | AC turbo fan | |||
| HEPA Filter size (W*H*Dmm) | 270*300*95 | 270*300*95 | 592*592*292 | 592*592*292 | 592*592*292*2sets |
| Filter model | Mini-pleat Panel Filter | Mini-pleat Panel Filter | |||
| Filter efficiency | H13 | H13 | H13 | H13 | H13 |
| Pre Filter size (W*H*Dmm) | 270*300*21 | 270*300*21 | 592*592*46 | 592*592*46 | 592*592*46*2sets |
| Filter efficiency | G4+Carbon | G4+Carbon | G4 | G4 | G4 |
| Flange size (AxBmm) | D250 | D250 | 300*300 | 400*400 | 400*900 |
| Air flow (m³/h) | 450 | 700 | 2000 | 3000 | 7500 |
⚙️Optional Configuration
- UV lamp
- Air control damper
- Medium F8 filter
- Activated carbon granule filter
- PLC control
- Universal wheel
- Differential pressure gauge
- Air duct
- Customized air flow

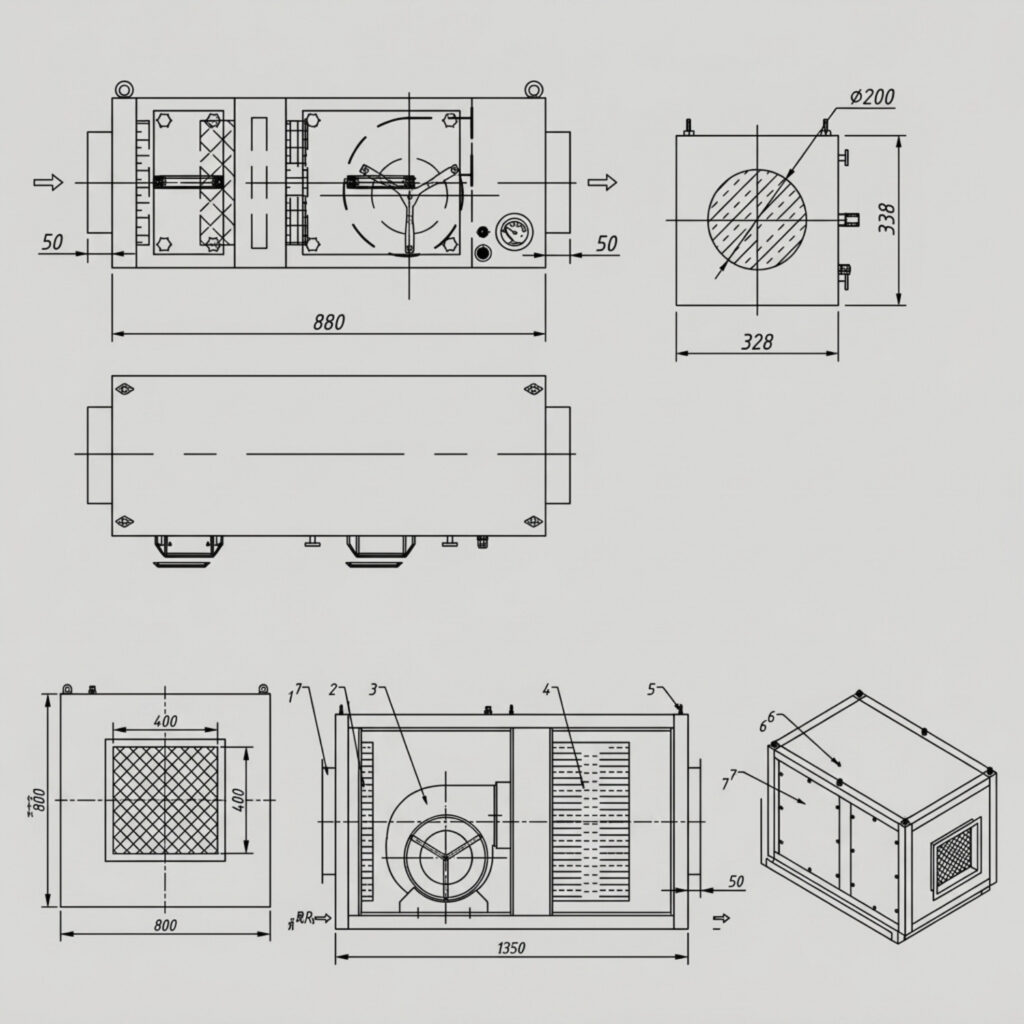

⚙️Parameter
EC fan model
- 1. Flange
- 2. G1 pre filter
- 3. Access panel
- 4. HEPA filter
- 5. UV lamp
- 6. Activated carbon filter
- 7. EC fan motor (220V/50Hz)
- 8. Power cord
- 9. DP gauge
AC fan model
- 1. Flange
- 2. G2 pre filter
- 3. AC turbo fan(380V/50Hz)
- 4. HEPA filter
- 5. Hanging lugs
- 6. Power cord
- 7. Access panel
