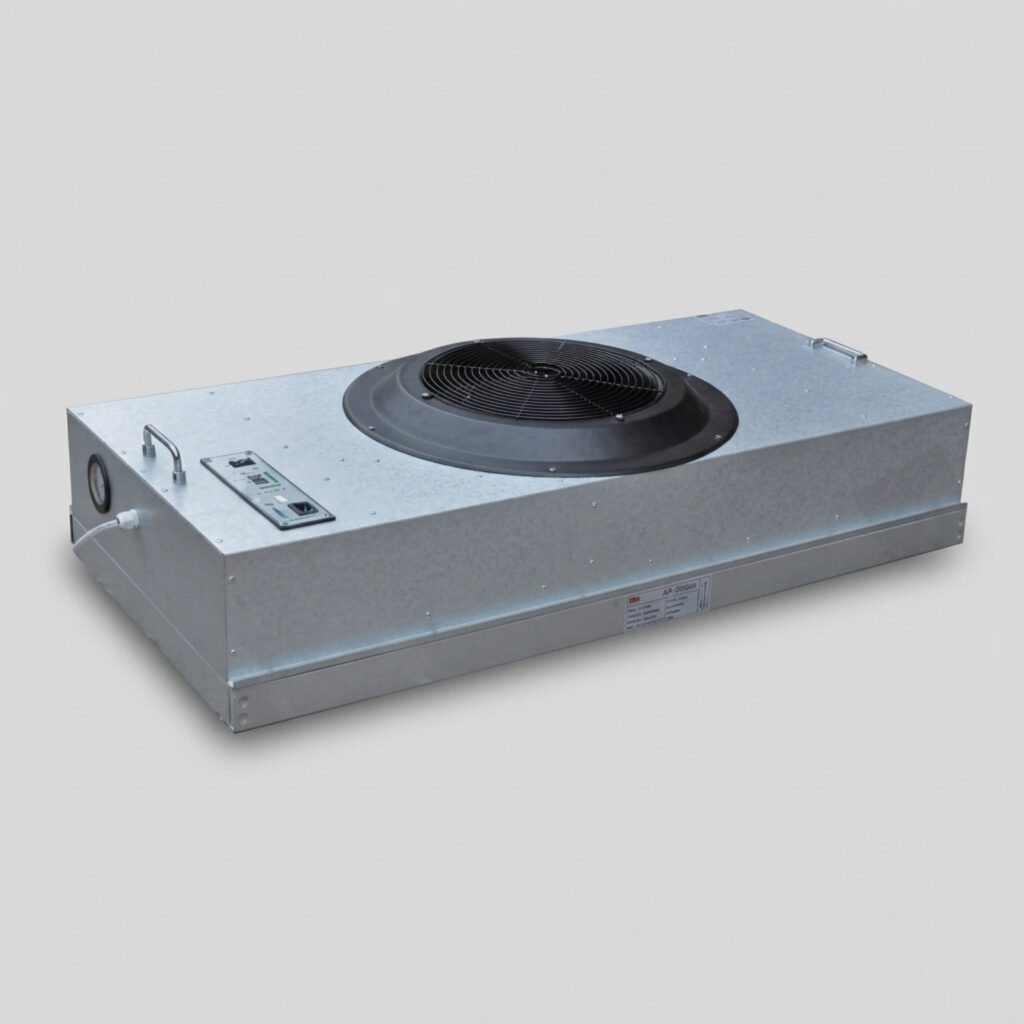

Equipment Filter Unit
1
Ultra-low energy
consumption,
low noise
The unique design inside the cabinet is matched with a high-quality, low-energy, silent and thin fan to achieve the effect of low energy consumption and low noise.
2
High-quality board
The cabinet can be made of galvanized zinc plate, stainless steel plate or aluminum plate, and the thickness can be as low as 135mm.
3
Easy to install
The structure is light and handy, the installation is flexible and convenient, and it can be installed horizontally or vertically to meet the installation requirements under different conditions.
4
Multiple control
methods
It can realize single manual control or multiple group monitoring. From small-scale specific needs to large-scale integrated system requirements, it can provide suitable EFU control methods and monitoring systems.
| Item | Equipment Filter Unit | ||
|---|---|---|---|
| Model | EFU-1 | EFU-2 | |
| Module size (W*L*Hmm) | 570*1170*240 | 1170*1170*240 | |
| Air chamber material | Galvalume / aluminum / stainless steel | ||
| Air flow (m³/h) | 1000~1100 | 2200~2300 | |
| Air velocity (m/s) | 0.45m/s±20% | ||
| Total pressure (Pa) | 230 | 230 | |
| Fan power (W) | 161 | 161 | |
| Weight (kg) | 25 | 45 | |
| Noise dB (1m below the HEPA filter) | ≤54 | ≤56 | |
| Vibration (mm/s) | 0.2-0.7 | ||
| Power supply | AC 220V 50/60Hz | ||
| Control mode | Single control / computer small group control / touch screen small group control / computer group control | ||
| Options | Differential pressure drop test port / differential pressure drop alarm device | ||
| HEPA filter | Size (WxHxDmm) | 570*1170*50 | 1170*1170*50 |
| Efficiency | 99.99%@0.3μm | ||
| Frame | High quality anodized aluminum | ||
| Initial pressure drop | 110Pa@0.45m/s±15% | ||
| Gasket | EVA / PU foam | ||

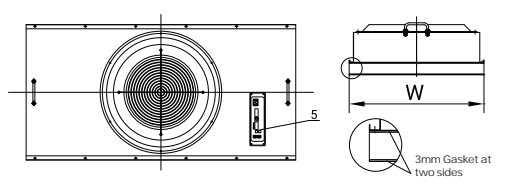

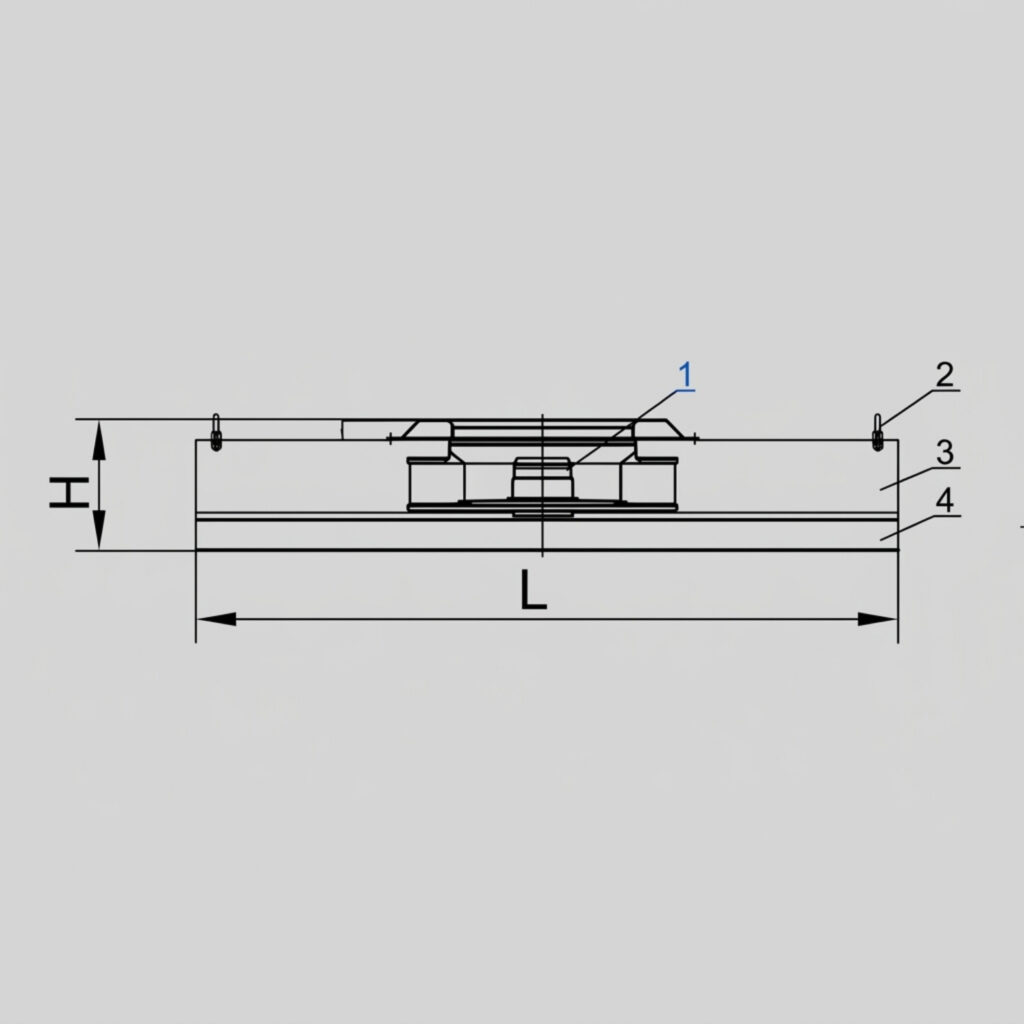

⚙️Parameter
- 1. Motor
- 2. Handle
- 3. Cabinet
- 4. HEPA filter
- 5. Control panel
