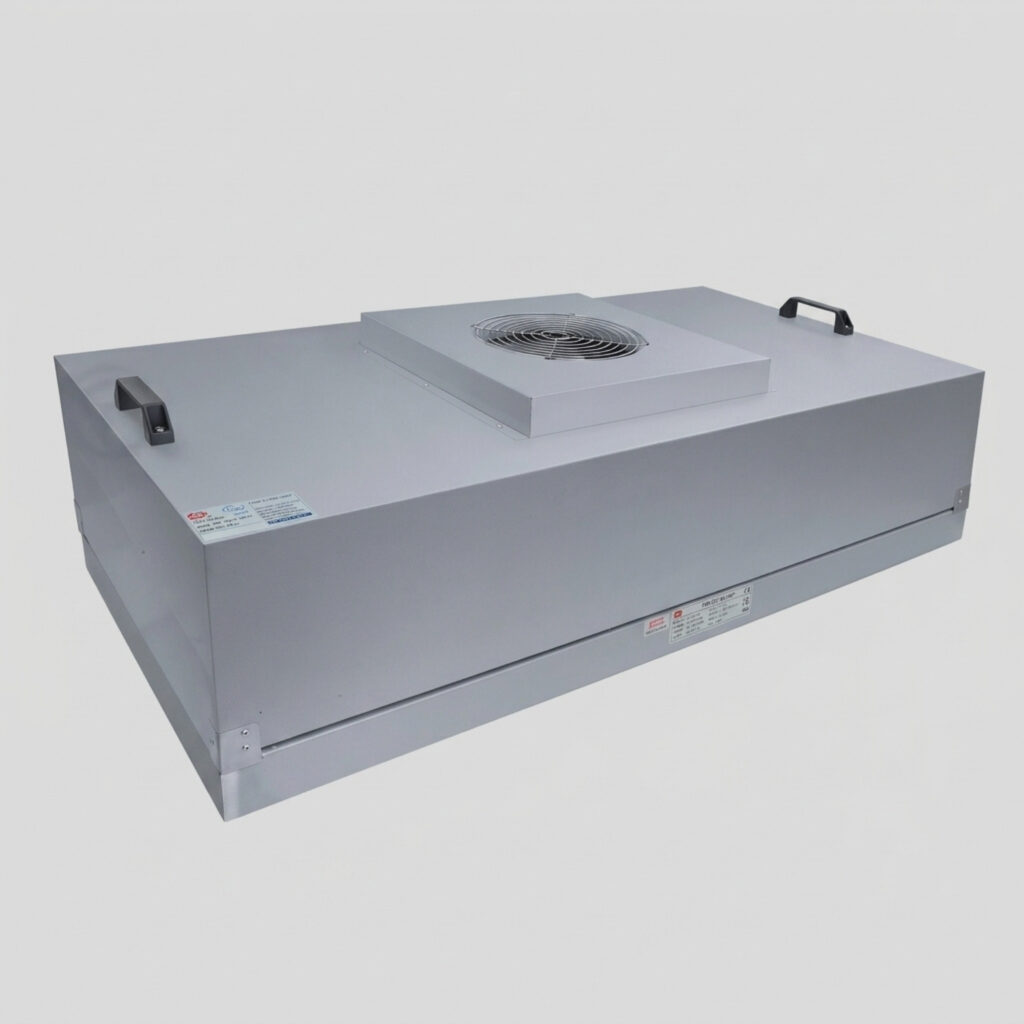

EC FFU
1
Intelligent control
Use remote automatic control system and intelligent control to achieve a perfect match of mechanical components and electronic control systems.
2
Energy saving
EC direct current smooth voltage wave line to save energy.
3
Easy start and stop
Start-up current is only 1/5 AC fan, and can start up many fans at the same time; Good breaking performance.
4
Small calorific value
EC fan with high performance of small calorific value, which can reduce the calorific value of work area further.
5
Large airflow and use in series
EC FFU is a ceiling unit with motor inside, used for turbulent and laminar flow clean room. It has feature of modularizing, the average air.
| Item | EC FFU | |||||
|---|---|---|---|---|---|---|
| Model | EC FFU-1 | EC FFU-2 | EC FFU-3 | EC FFU-4 | EC FFU-5 | |
| Module size (W*L*Hmm) | 575*875*375 | 575*1175*375 | 615*1225*375 | 875*1175*375 | 1175*1175*415 | |
| Air chamber material | Galvalume / Aluminum / Stainless steel | |||||
| Air flow (m³/h) | 800~900 | 1000~1100 | 1100~1200 | 1600~1700 | 2200~2300 | |
| Air velocity (m/s) | 0.45±20% | |||||
| Total pressure(Pa) | 210 | 210 | 210 | 210 | 210 | |
| Fan power (W) | 320 | 320 | 320 | 223 | 223 | |
| Weight (kg) | 26 | 36 | 39 | 41 | 44 | |
| Noise dB (1 m below the HEPA filter) | 53-66 | |||||
| Vibration (mm/s) | 0.2~0.7 | |||||
| Power supply | 220V 1PH 50/60Hz(380V 3PH 50/60Hz/110V 1PH 50/60Hz) | |||||
| Control mode | Single control/touch screen small group control/computer | |||||
| Options | DOP inject port / DOP sample port / differential pressure drop test port / differential pressure drop alarm device | |||||
| HEPA filter | Size (WxHxDmm) | 570*870*69 | 570*1170*69 | 610*1220*69 | 870*1170*69 | 1170*1170*69 |
| Efficiency | 99.99%0.3μm | |||||
| Frame | High quality anodized aluminum | |||||
| Initial pressure drop | 110Pa@0.45m/s±15% | |||||
| Gasket | EVA / PU foam | |||||

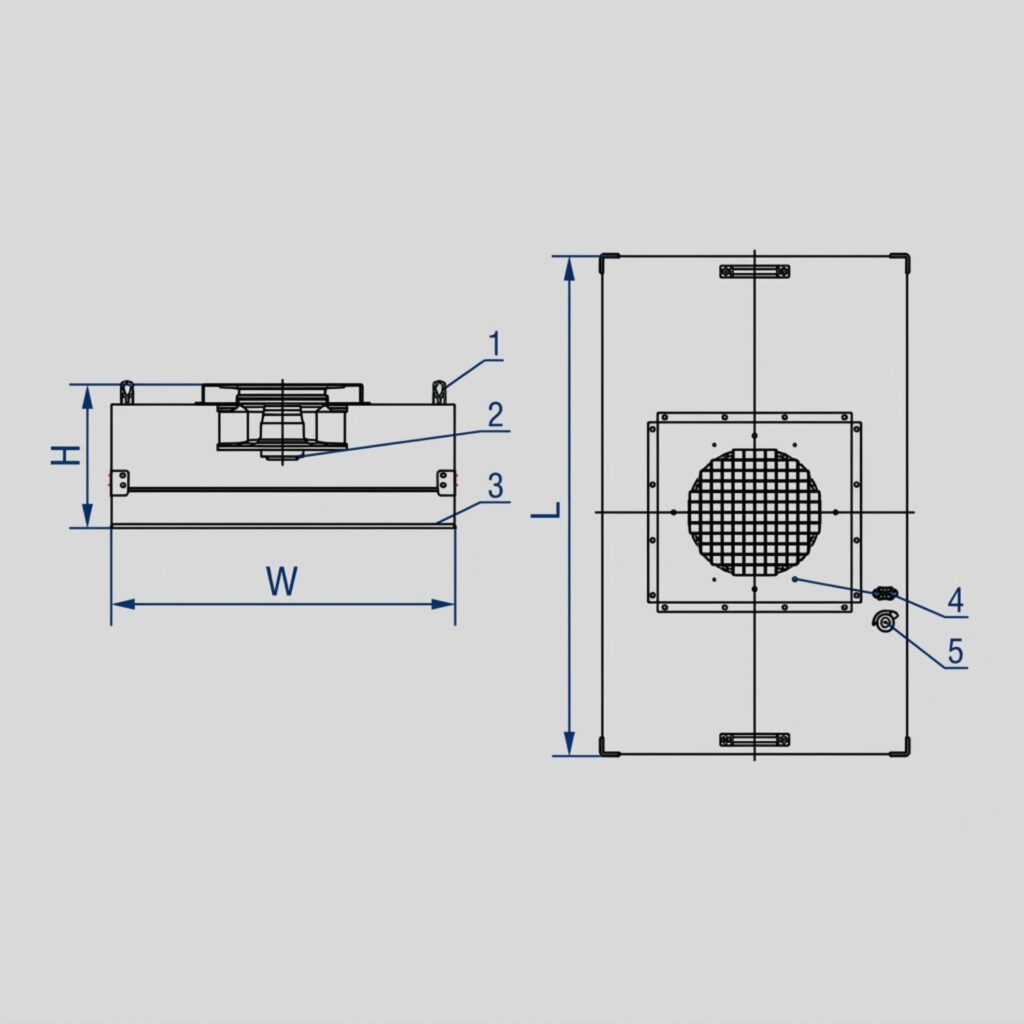

⚙️Parameter
- 1 Handle
- 2 Motor
- 3 HEPA filter
- 4 Control panel
