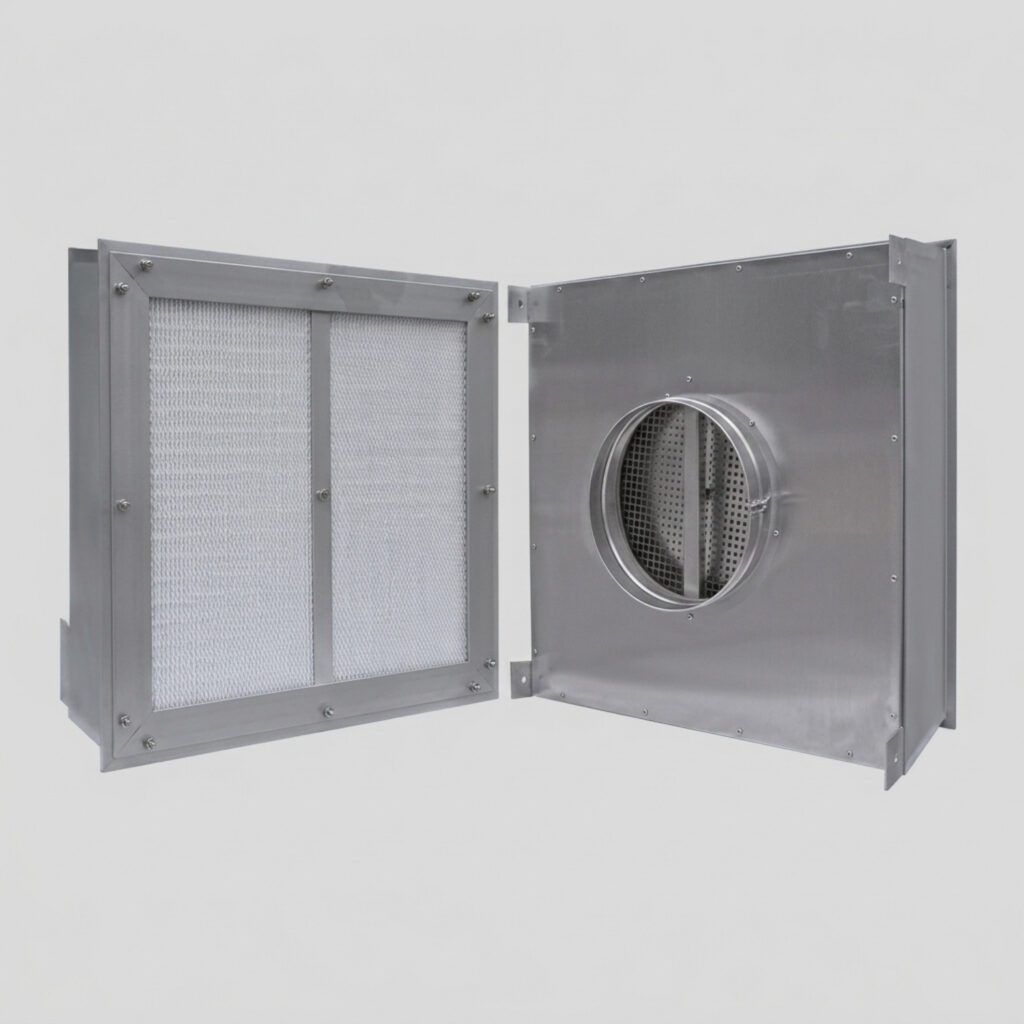

DOP Replaceable Hooded Terminal Filter
Adaptive Efficiency: E10, E11, E12, H13, H14, U15, U16
Product Features
- Gel-glue sealing, high efficiency and dependability
- Light weight and thin
- 100% factory inspection
- Double turn frame,threaded fastening connection, easy to install and replace
- Independent research and development, patented products
+44 7479 496191
Call
info@filtravo.com
Application
It is widely used in hospital operating room, laboratory, pharmaceutical room and other biological medical industry and microelectronics, film and fiber equipment and food processing plants, etc. which need a higher level of working environment.
Material and Operation Conditions
| Media | Micro glass fiber |
| Housing | 150mm extruded aluminum |
| Rear cover | Aluminum / Galvanized / Stainless steel |
| Filter Frame | 69mm extruded aluminum |
| Sealant | Two-component polyurethane glue |
| Gasket | Blue gel seal |
| Separator | Hot meld bead |
| Max. Temperature | 70°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
636*636*150
Technology Parameters
* Customized design is available| Model | Size(inch) (WxHxD) |
Size(mm) (WxHxD) |
Air flow (m³/h) |
Initial pressure (≤Pa) |
Media area (m²) |
Velocity (m/s) |
Filter grade (EN1822) |
|---|---|---|---|---|---|---|---|
| K60-B-001 | 12×12×6 | 305×305×150 | 150 | 190 | 1.45 | 0.41 | H14 |
| K60-B-002 | 19×19×6 | 484×484×150 | 450 | 190 | 4.31 | 0.53 | H14 |
| K60-B-003 | 20×20×6 | 510×510×150 | 450 | 190 | 4.91 | 0.48 | H14 |
| K60-B-004 | 22×22×6 | 570×570×150 | 650 | 190 | 6.42 | 0.56 | H14 |
| K60-B-005 | 24×24×6 | 610×610×150 | 750 | 190 | 7.55 | 0.56 | H14 |
| K60-B-006 | 36×24×6 | 915×610×150 | 1150 | 190 | 12.01 | 0.57 | H14 |
| K60-B-007 | 46×22×6 | 1170×570×150 | 1400 | 190 | 14.52 | 0.58 | H14 |
| K60-B-008 | 48×24×6 | 1220×610×150 | 1600 | 190 | 16.47 | 0.60 | H14 |
| K60-B-009 | 12×12×6 | 305×305×150 | 150 | 220 | 1.45 | 0.41 | U15 |
| K60-B-010 | 19×19×6 | 484×484×150 | 450 | 220 | 4.31 | 0.53 | U15 |
| K60-B-011 | 20×20×6 | 510×510×150 | 450 | 220 | 4.91 | 0.48 | U15 |
| K60-B-012 | 22×22×6 | 570×570×150 | 650 | 220 | 6.42 | 0.56 | U15 |
| K60-B-013 | 24×24×6 | 610×610×150 | 750 | 220 | 7.55 | 0.56 | U15 |
| K60-B-014 | 36×24×6 | 915×610×150 | 1150 | 220 | 12.01 | 0.57 | U15 |
| K60-B-015 | 46×22×6 | 1170×570×150 | 1400 | 220 | 14.52 | 0.58 | U15 |
| K60-B-016 | 48×24×6 | 1220×610×150 | 1600 | 220 | 16.47 | 0.60 | U15 |
