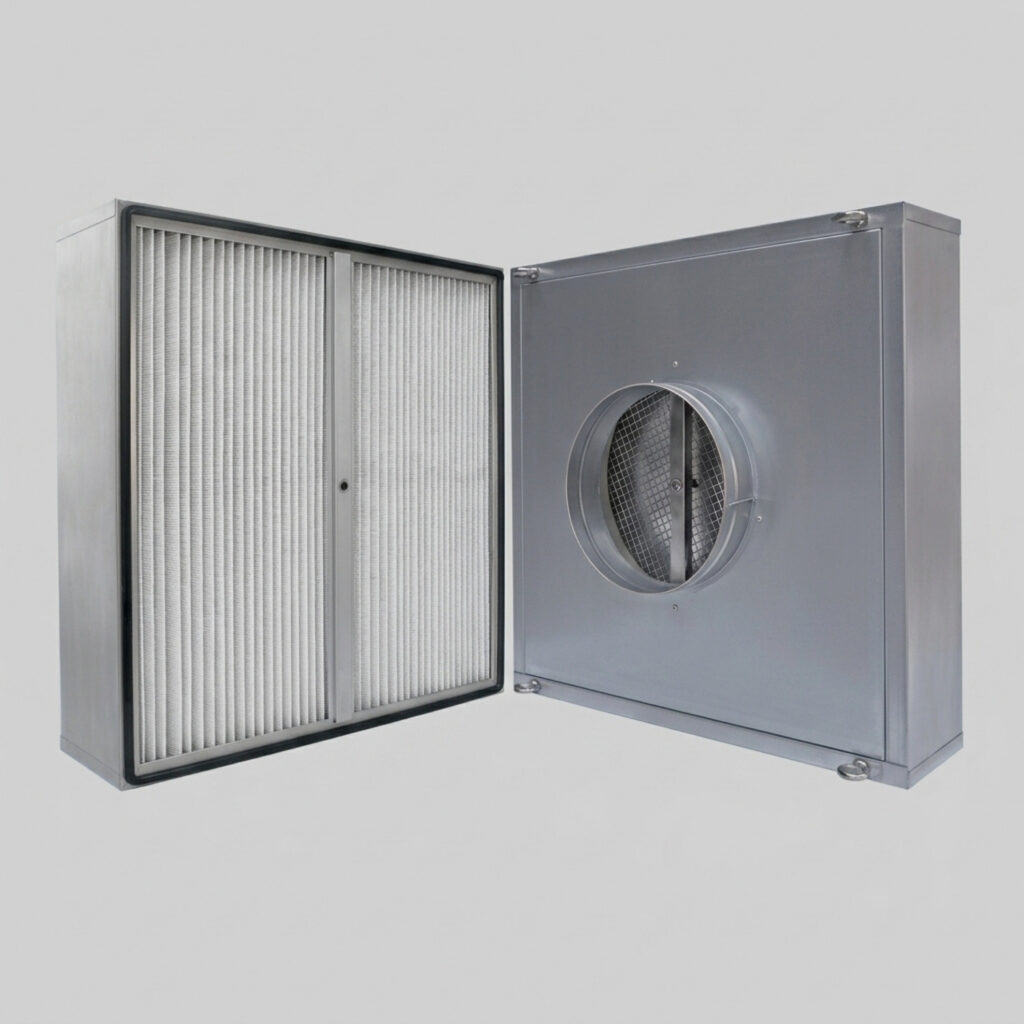

DOP Hooded Terminal Filter
Adaptive Efficiency: E10, E11, E12, H13, H14, U15, U16
Product Features
- Light weight, easy installation and replacement
- 100% factory inspection
- Good ventilation performance
- Special sealing adhesive for DOP test
- Low run cost
- Good sealing
- High efficiency
+44 7479 496191
Call
info@filtravo.com
Application
Places with high requirement of cleanliness, such as surgery, lab, pharmacy, photographic film plants, micro electronic, fiber optic equipment and food processing factories, etc.
Material and Operation Conditions
| Media | Micro glass fiber |
| Frame | Sheet aluminum / Galvanized / Anodized aluminum |
| Sealant | Two-component polyurethane glue |
| Gasket | PU foam gasket / EVA / EPDM |
| Separator | Hot melt bead |
| Optional aluminum frame thickness (mm) | 120 150 220 |
| Max. Temperature | 70°C |
| Max. Humidity | 100% |
Air Flow & Resistance Diagram
610*610*150
Technology Parameters
* Customized design is available| Model | Size(inch) (WxHxD) |
Size(mm) (WxHxD) |
Air flow (m³/h) |
Initial pressure (≤Pa) |
Media area (m²) |
Velocity (m/s) |
Filter grade (EN1822) |
|---|---|---|---|---|---|---|---|
| K60-A-001 | 24×12×4.72 | 610×305×120 | 450 | 170 | 4.61 | 0.67 | H13 |
| K60-A-002 | 24×24×4.72 | 610×610×120 | 900 | 170 | 9.23 | 0.67 | H13 |
| K60-A-003 | 36×24×4.72 | 915×610×120 | 1350 | 170 | 13.84 | 0.67 | H13 |
| K60-A-004 | 48×24×4.72 | 1220×610×120 | 1800 | 170 | 18.46 | 0.67 | H13 |
| K60-A-005 | 24×24×6 | 610×610×150 | 1000 | 170 | 9.84 | 0.75 | H13 |
| K60-A-006 | 48×24×6 | 1220×610×150 | 2000 | 170 | 19.69 | 0.75 | H13 |
| K60-A-007 | 24×24×8.66 | 610×610×220 | 1050 | 170 | 10.66 | 0.78 | H13 |
| K60-A-008 | 48×24×8.66 | 1220×610×220 | 2100 | 170 | 21.33 | 0.78 | H13 |
| K60-A-009 | 24×12×4.72 | 610×305×120 | 450 | 190 | 4.61 | 0.67 | H14 |
| K60-A-010 | 24×24×4.72 | 610×610×120 | 900 | 190 | 9.23 | 0.67 | H14 |
| K60-A-011 | 36×24×4.72 | 915×610×120 | 1350 | 190 | 13.84 | 0.67 | H14 |
| K60-A-012 | 48×24×4.72 | 1220×610×120 | 1800 | 190 | 18.46 | 0.67 | H14 |
| K60-A-013 | 24×24×6 | 610×610×150 | 1000 | 190 | 9.84 | 0.75 | H14 |
| K60-A-014 | 48×24×6 | 1220×610×150 | 2000 | 190 | 19.69 | 0.75 | H14 |
| K60-A-015 | 24×24×8.66 | 610×610×220 | 1050 | 190 | 10.66 | 0.78 | H14 |
| K60-A-016 | 48×24×8.66 | 1220×610×220 | 2100 | 190 | 21.33 | 0.78 | H14 |
| K60-A-017 | 24×24×4.72 | 610×610×120 | 550 | 130 | 9.23 | 0.41 | U15 |
| K60-A-018 | 48×24×4.72 | 1220×610×120 | 1150 | 130 | 18.46 | 0.43 | U15 |
| K60-A-019 | 24×24×8.66 | 610×610×220 | 650 | 130 | 10.66 | 0.49 | U15 |
| K60-A-020 | 48×24×8.66 | 1220×610×220 | 1300 | 130 | 21.33 | 0.49 | U15 |
