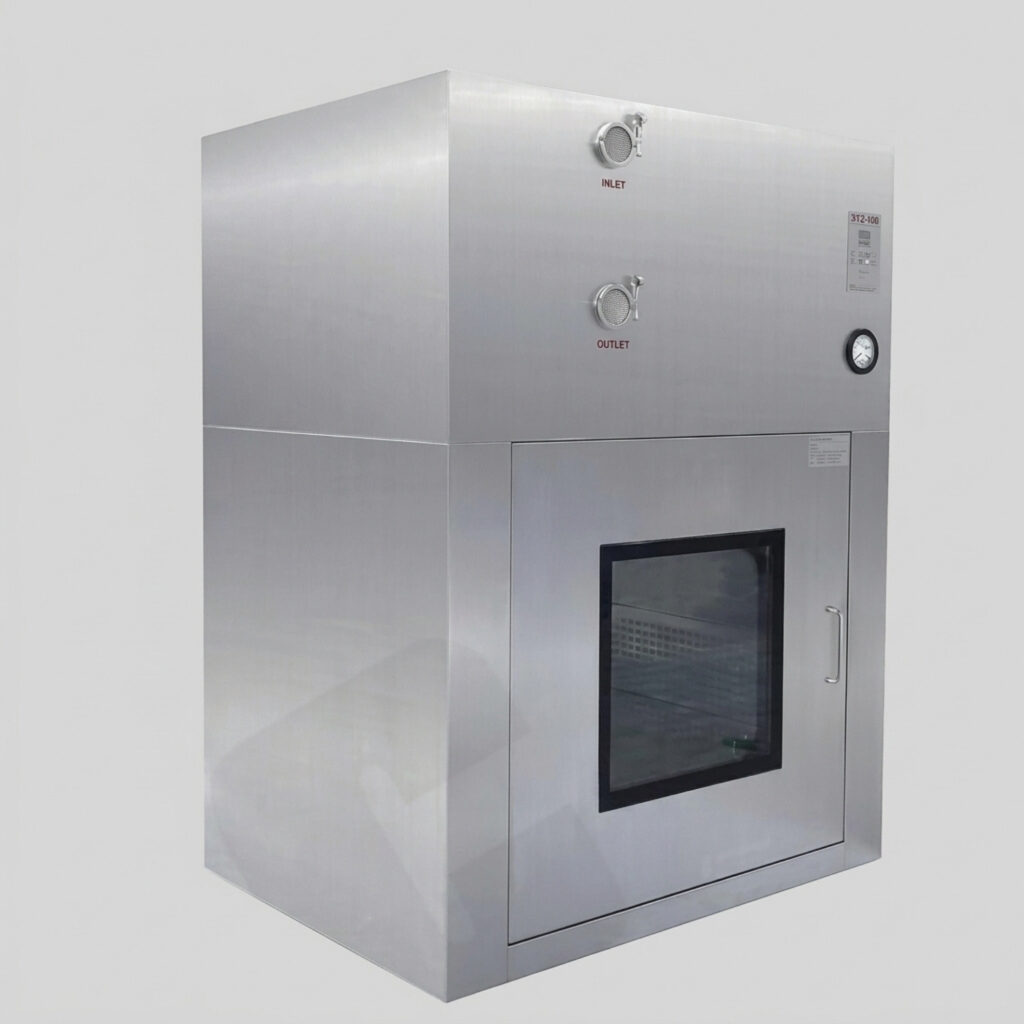

DOP Dynamic Pass Box
Wide range of func-
tions
DOP dynamic pass box is a kind of assistant equipment for clean room, mainly used to pass small articles between clean rooms and unclean rooms or between two clean rooms, in order to reduce the number of door opening, and minimized cross pollution.
Core value
DOP dynamic pass box can act as an air lock to prevent high-pressure leakage into clean room; also can achieve self-cleaning effect during the transfer process to ensure that the articles entering the clean area are cleaned and dust-free, to reduce cross-contamination.
Quality selection
Work area with polish stainless steel plate which is more smooth and wear-resistant. The cabinet surface adopts cold rolled steel or stainless steel.
Application
Mainly used in biopharmaceutical, microbiology research and scientific experiments etc.
| Item | Standard DOP Dynamic Pass Box | |||
|---|---|---|---|---|
| Model | LPB-500 | LPB-600 | LPB-750 | LPB-800 |
| External size (W*L*Hmm) | 790*570*1100 | 890*670*1200 | 1040*820*1350 | 1090*870*1400 |
| Internal size (W*L*Hmm) | 500*500*500 | 600*600*600 | 750*750*750 | 800*800*800 |
| Work area rated air volume (m³/h) | 400 | 600 | 900 | 1050 |
| Wind speed (m/s) | 0.45 ± 20% | |||
| Wind blow time | Air shower time: 1minute (0~99 minutes adjustable) | |||
| Purification rank (std. ISO14644-1) | 100 | 100 | 100 | 100 |
| Efficiency (%0.3μm) | 99.995 | 99.995 | 99.995 | 99.995 |
| Noise dB (1m from equipment) | ≤58 | ≤58 | ≤58 | ≤58 |
| Power supply (V/Hz) | 220V/50 | 220V/50 | 220V/50 | 220V/50 |
| Fan power (W) | 115 | 115 | 115 | 115 |
⚙️Parameter
-

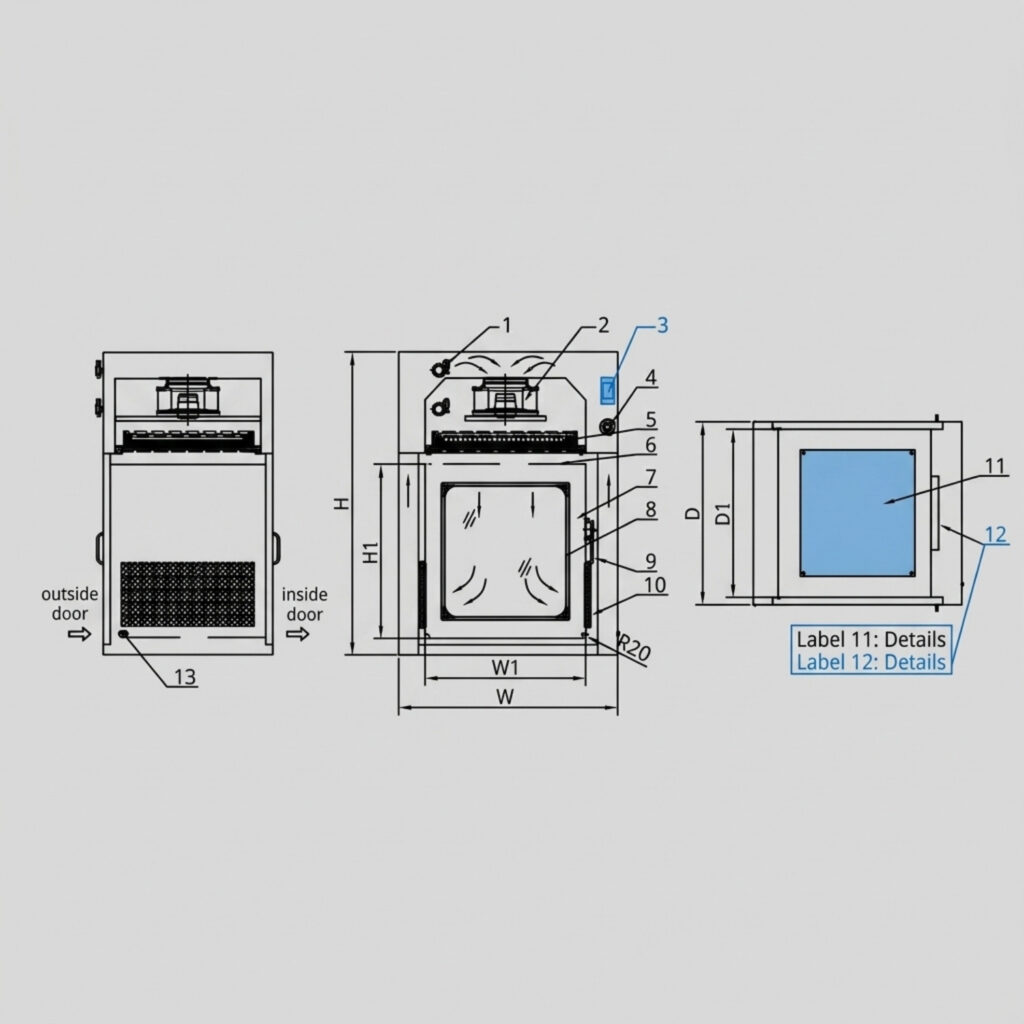

1
PAO test ports
(aerosol inject and sampling port) - 2 Fan
- 3 Electronic control panel
- 4 Differential pressure gauge
- 5 Gel-type HEPA filter
- 6 Diffuser
- 7 Embedded door
-
8
Transparent glass - double layer
black edged tempered glass - 9 Stainless steel handle
- 10 G2 Pre filter
- 11 Maintenance board
- 12 UV lamp
- 13 Power connector
1. From unclean area to clean zone: open outside door and put in articles > close outside door > automatic shower > open inside door and take out articles when shower finished.
2. From clean zone to unclean area: open inside door and put in articles > open inside door > no shower > open outside and take out articles.
