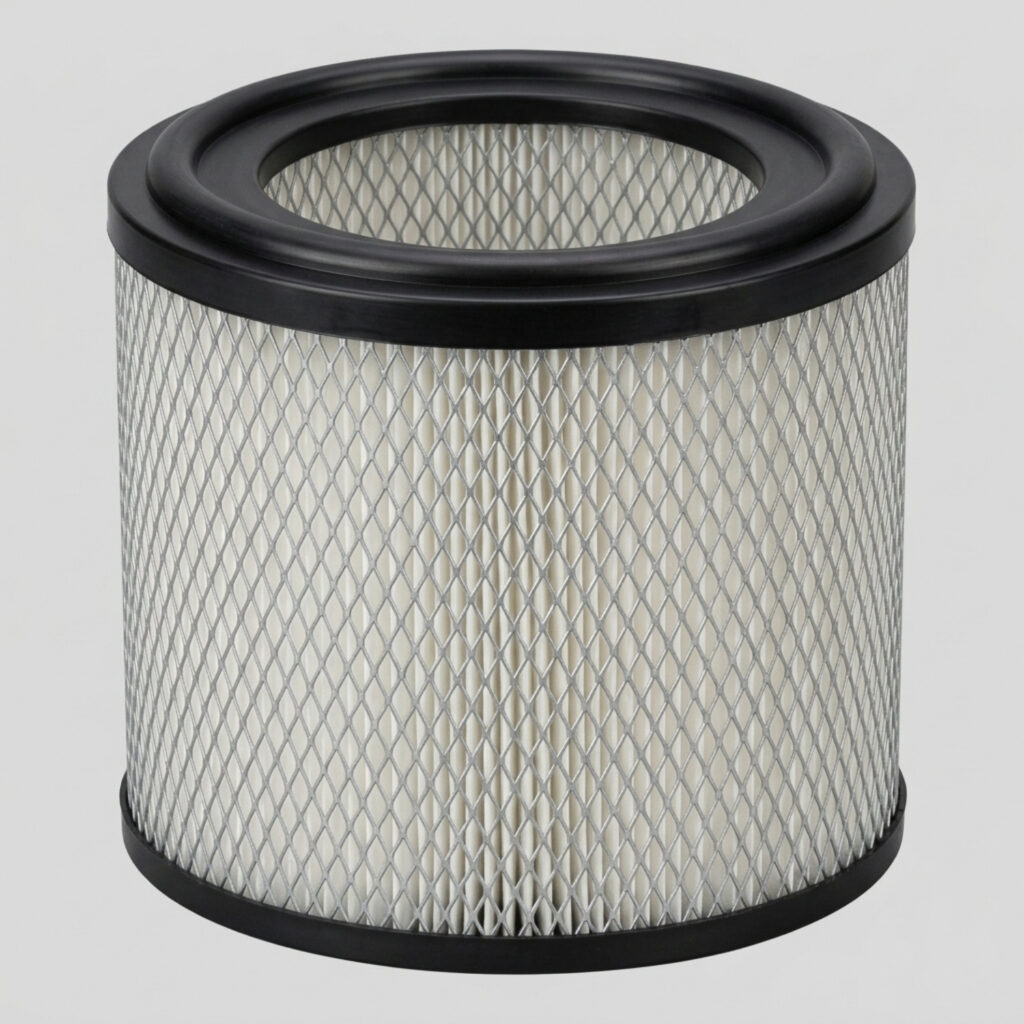

Cylinder Filter Cirpack-M
Adaptive Efficiency: F8ʪF9
Product Features
- Large filtration area and dust capacity, small occupation area
- All air inlet and outlet at 360 degrees, forming a better uniform filtration and more stable filtration efficiency
- Installed with faceguard at two sides for solid structure, effectively prevent media pack from damage
- Uniform pleat distance to prevent bunch up and thus extend the filter's lifespan
+44 7479 496191
Call
info@filtravo.com
Application
Mainly used in gas turbine, air compressor, blower and other aerodynamic equipment.
Material and Operation Conditions
| Media | Synthetic / teflon Micro glass fiber |
| Frame | Powder coated galvanized steel / Galvanized |
| Sealant | PU polyurethane |
| Gasket | EVA / EPDM |
| Separator | Hot melt bead |
| Max. Temperature | 70°C |
| Max. Humidity | 100% (glass fiber) |
Air Flow & Resistance Diagram
240*145*200
Technology Parameters
* Customized design is available| Model | Nominal size(inch) (WxHxD) |
Actual size(mm) (WxHxD) |
Air flow (m³/h) |
Initial pressure (≤Pa) |
Media area (m²) |
Velocity (m/s) |
Filter grade (EN779) |
Filter grade (ISO16890) |
|---|---|---|---|---|---|---|---|---|
| K70-001 | 4.9×2.8×8 | 125×70×200 | 120 | 100 | 0.87 | 0.42 | F8 | ePM1 70% |
| K70-002 | 6×3.2×8 | 153×85×200 | 200 | 100 | 1.37 | 0.58 | F8 | ePM1 70% |
| K70-003 | 8.2×5×8 | 210×130×200 | 350 | 100 | 2.35 | 0.74 | F8 | ePM1 70% |
| K70-004 | 9.5×5.7×8 | 240×145×200 | 500 | 100 | 3.24 | 0.92 | F8 | ePM1 70% |
| K70-005 | 13.8×9.5×16 | 350×240×400 | 1700 | 100 | 11.67 | 1.07 | F8 | ePM1 70% |
| K70-006 | 4.9×2.8×8 | 125×70×200 | 120 | 120 | 0.87 | 0.42 | F9 | ePM1 80% |
| K70-007 | 6×3.2×8 | 153×85×200 | 200 | 120 | 1.37 | 0.58 | F9 | ePM1 80% |
| K70-008 | 8.2×5×8 | 210×130×200 | 350 | 120 | 2.35 | 0.74 | F9 | ePM1 80% |
| K70-009 | 9.5×5.7×8 | 240×145×200 | 500 | 120 | 3.24 | 0.92 | F9 | ePM1 80% |
| K70-010 | 13.8×9.5×16 | 350×240×400 | 1700 | 120 | 11.67 | 1.07 | F9 | ePM1 80% |
