Clean Booth
Product overview
A modular clean room is a prefabricated, controlled environment that is constructed to limit the presence of sub-micron particulates.Modular Cleanrooms are not just an acceptable, but often a preferred alternative to conventional, brick-and-mortar cleanrooms due to unique, flexible capabilities.
Reconfiguration
Modular rooms are comparatively inexpensive to retrofit and upgrade as cleanliness or other requirements change.
Intrinsic Versatility
Modular rooms can be assembled, disassembled and relocated.
Airflow Control
Adjustable wind speed to control air flow rate by control box, control suitable pressure; cleanrooms isolate released air to minimize particle swirling, aggregation and deposition on clean surfaces.
Reconfiguration
Simple on-site panel modification or replacement accommodates pass-throughs or customized air release vents, which draw clean air toward a work station or sensitive process.
Cost
Less expensive than traditional clean rooms because of the basic design and the low cost of the various components.

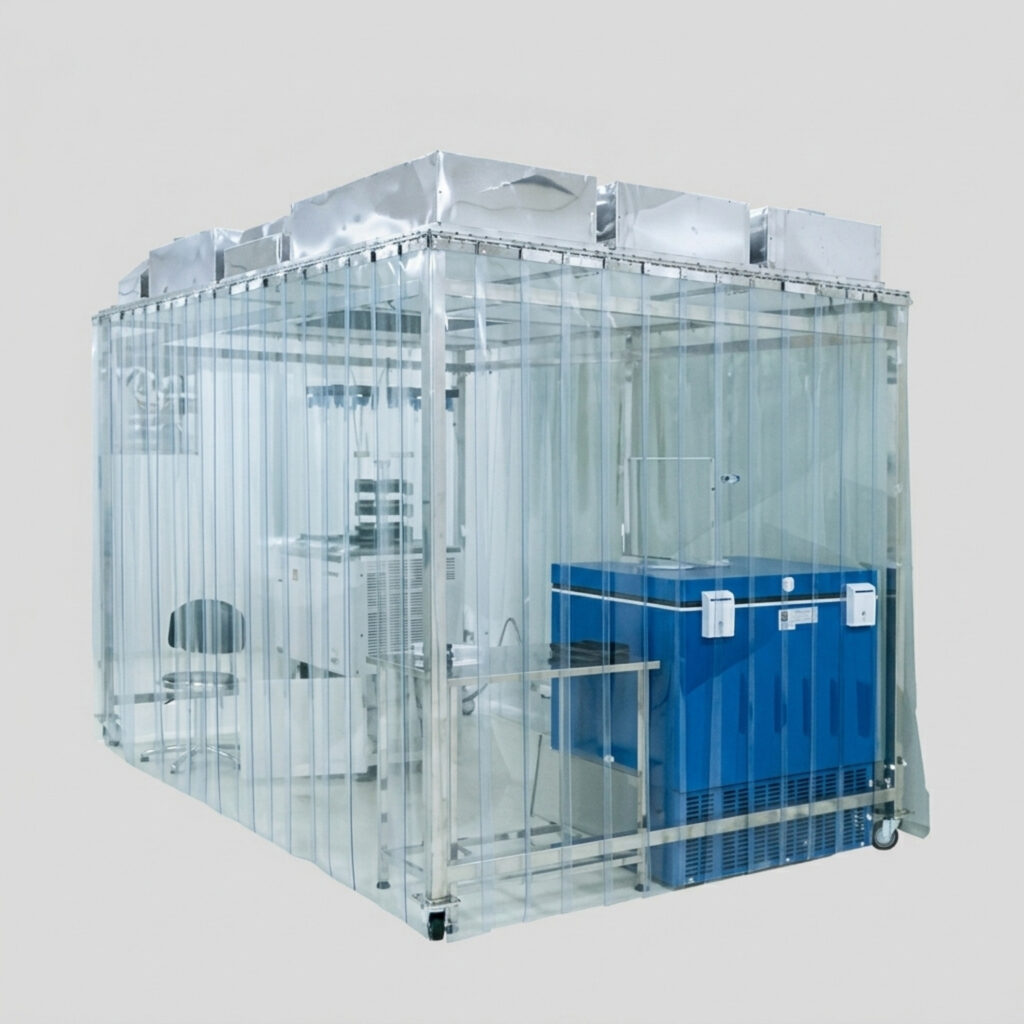

K-CB1
PVC Softwall Cleanbooth
- Easy installed
- High mobility
- Low cost
- High flexibilty
- Less tool required

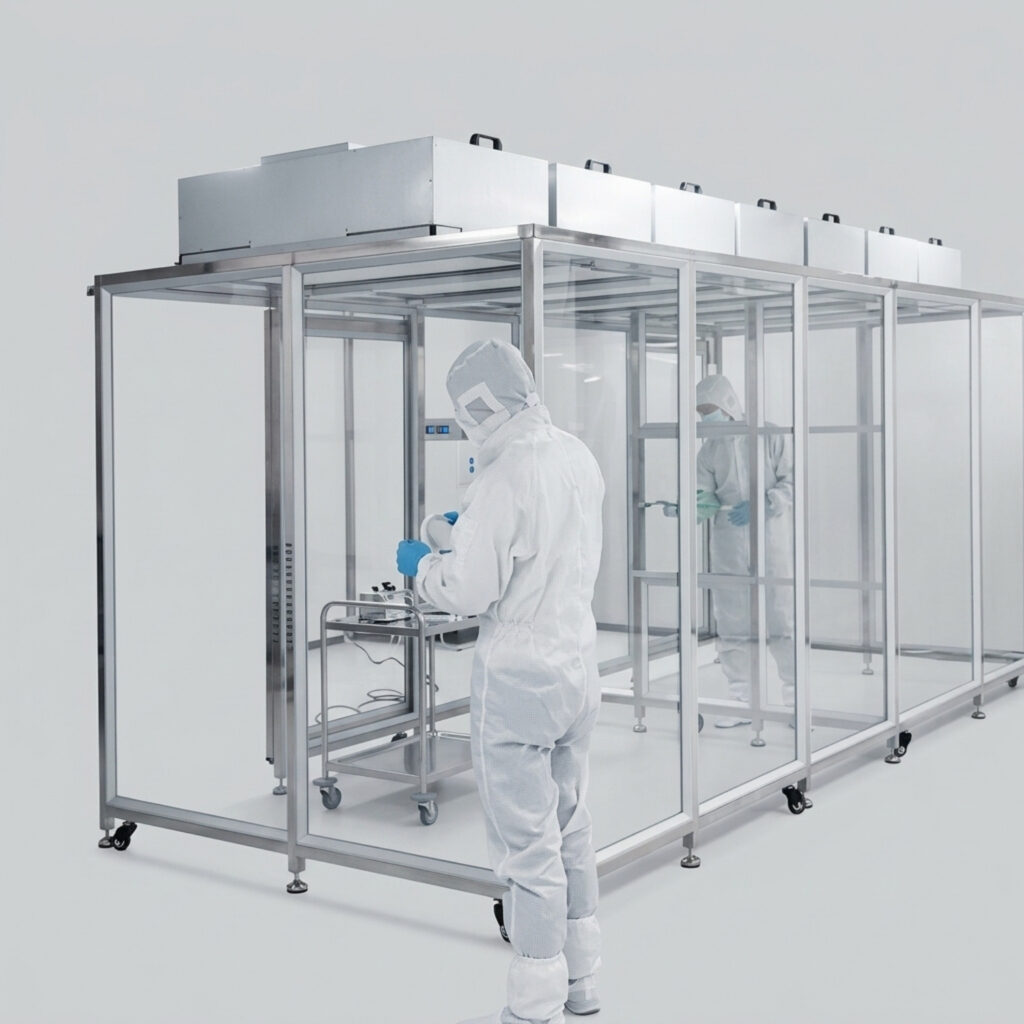

K-CB2
Safety Tempered Glass Cleanbooth
- Easy installed
- Easy control
- Low cost
- High transparency
- Easy maintenance

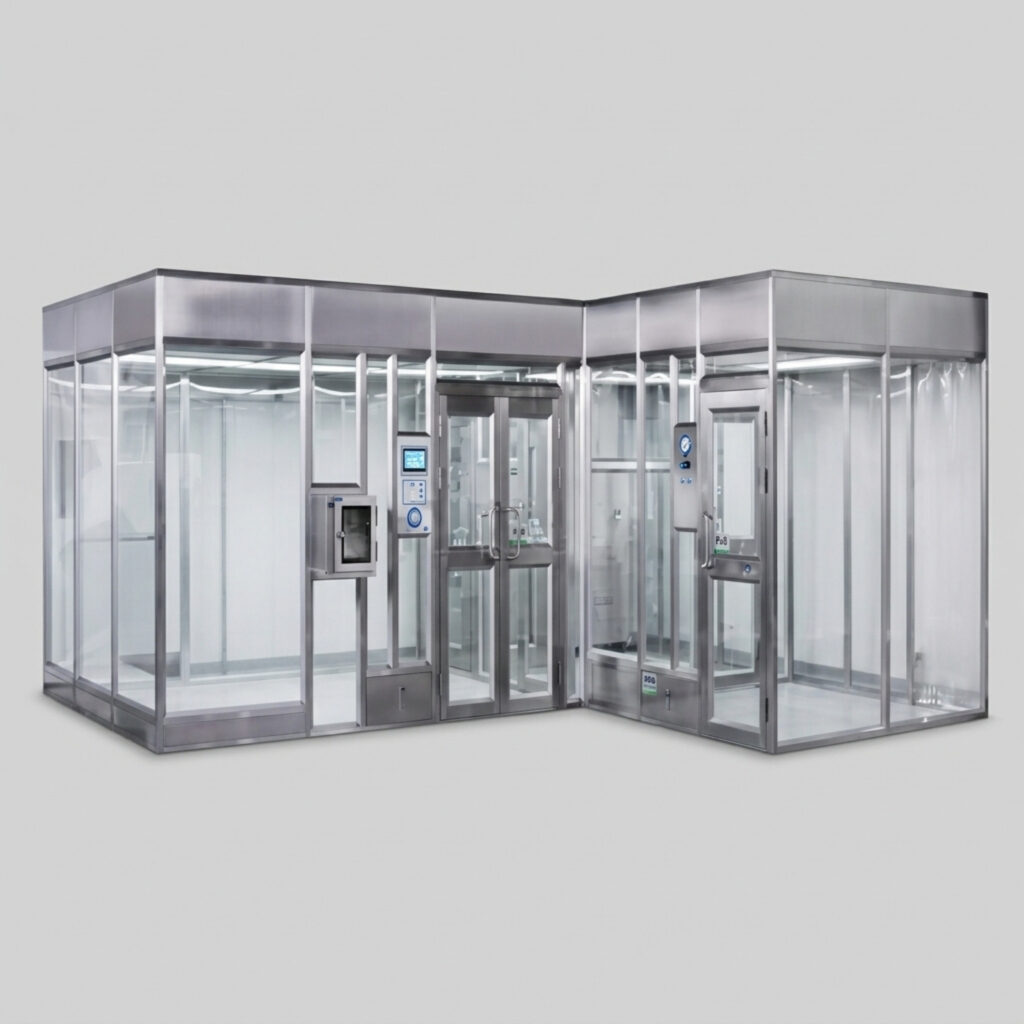

K-CB3
Floor Based Cleanbooth
- High integrity
- Intelligent control
- Low cost
- High transparency

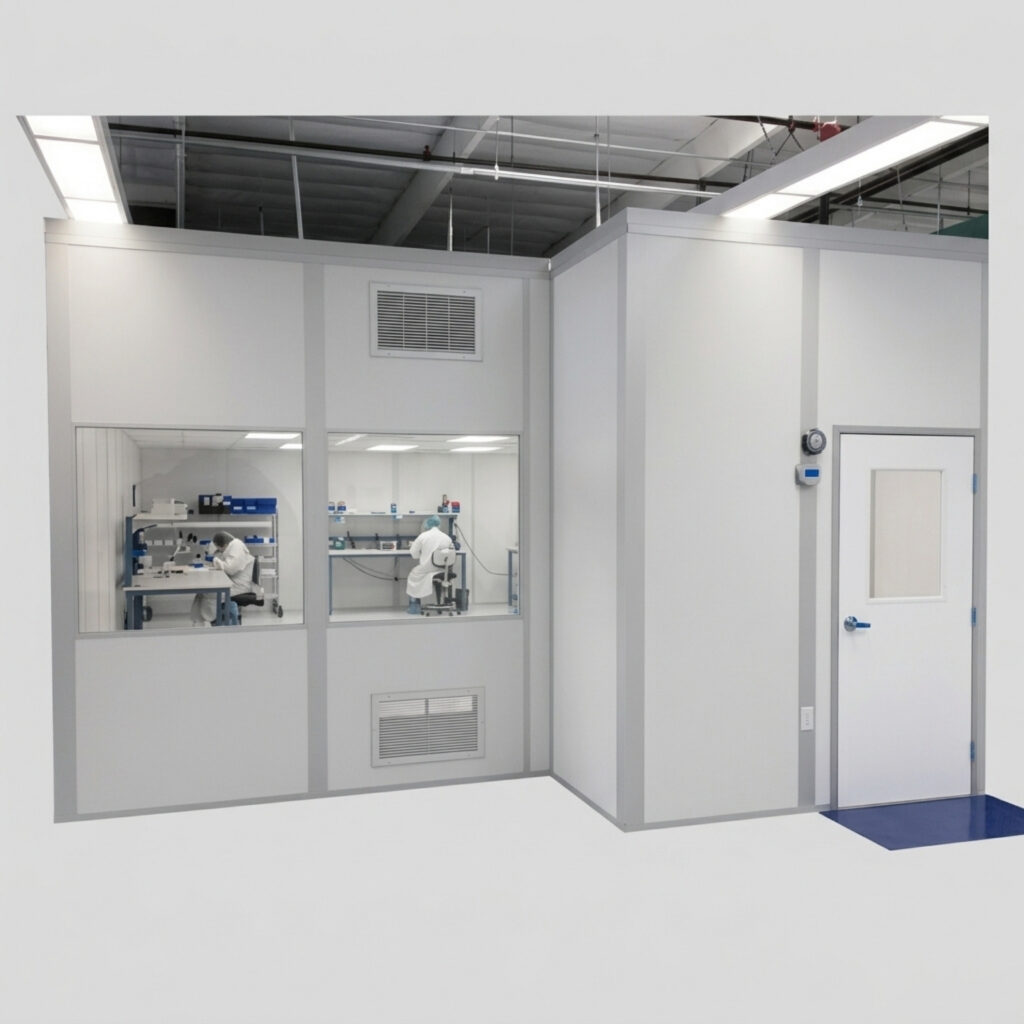

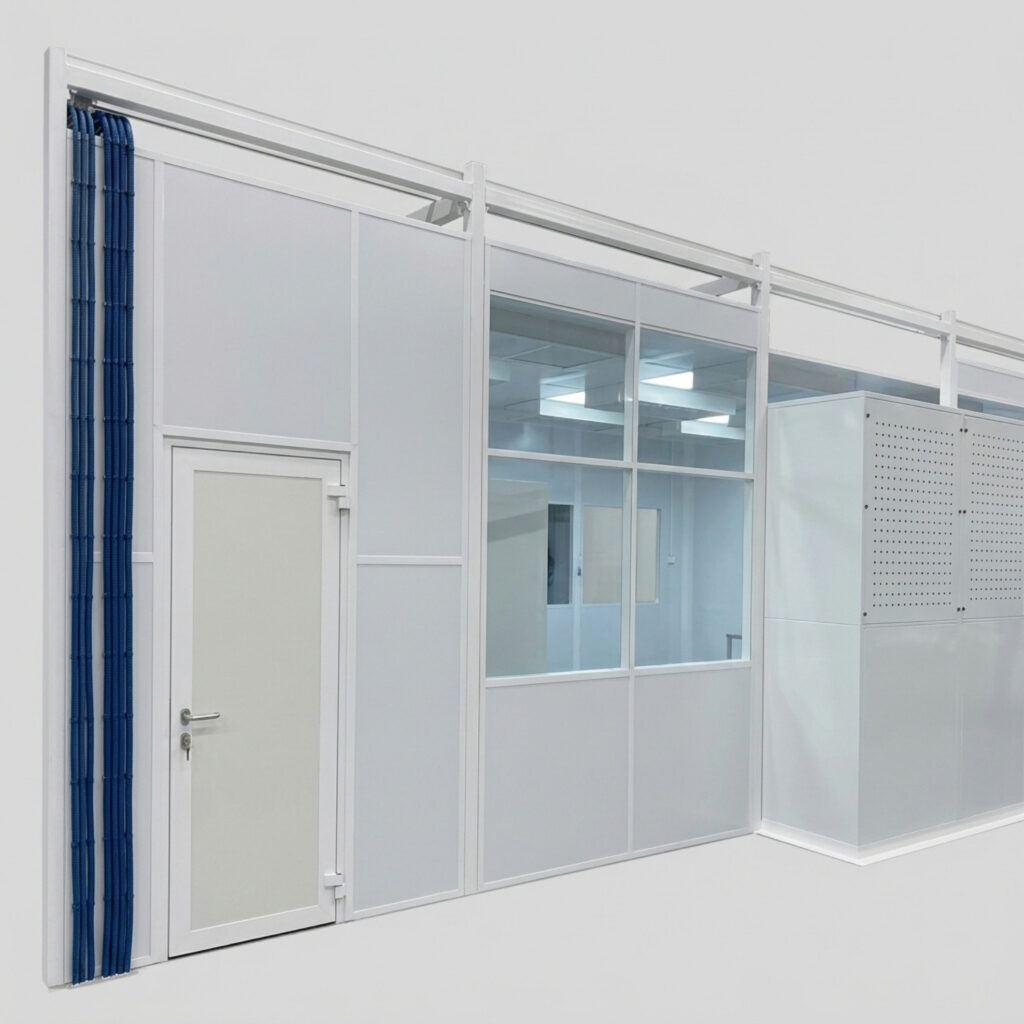

K-CB4
Sandwich Board / Hardwall Clean Room
- High integrity
- Fire proof
- Measured and pre-cut sandwich
- Board for easier installation suitable for larger size design

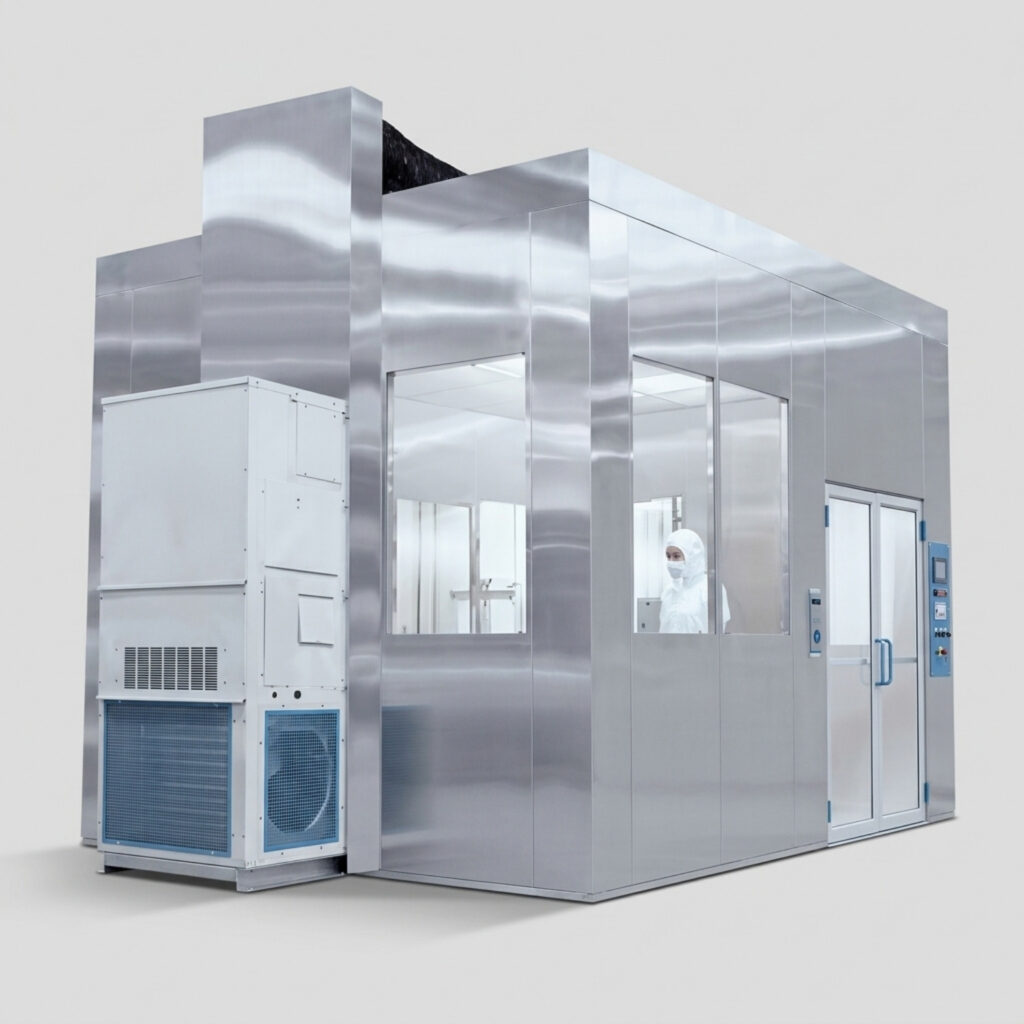

K-CB5
Cleanroom With Air Conditioning
- Low cost with air conditioning system
- Internal air flow circulation
- Obtional with humidty controlling system
K-CB6
Cleanroom With Dust Collector
- Easy maintenance
- Strong structure
- Good appearance
- Protection of external environment
Customized your own cleanroom
| Frameworks |
Powder coated steel
Aluminum
Stainless steel
|
Purification unit |
Fan filter unit (FFU)
HEPA box
Air handling unit
|
| Walls |
PVC blade
Tempered glass
Sandwich board
Acrylic glass
|
Door |
PVC blade
Glass door
Metal door
|
| Control |
Control box
Touch screen
|
Air return |
Air louver
Foot margin
|
| Movable |
Wheels
Suspended ceiling
|
Others |
Pass Box
Temp. & Hum. control
Panel lights
|
