Air Showers vs Pass Boxes: Essential Personnel and Material Decontamination Strategies

1. The Critical Role of Entry Decontamination

In high-grade cleanroom facilities—ranging from pharmaceutical compounding hubs to semiconductor manufacturing plants—maintaining strict environmental compliance under ISO 14644 standards requires controlled entry barriers. Studies show that over 80% of particulate contamination is introduced by personnel garments and material transport carts.

To prevent ambient particulate influx, facility engineers utilize two fundamental entry protocols: Air Showers for operators and Pass Boxes for materials.

2. Air Showers: Personnel Decontamination Protocol

An Air Shower serves as a high-velocity, localized decontamination chamber positioned at the transition zone between unclassified areas and cleanroom environments.

Key Engineering Principles:

• High-Velocity Jet Scrubbing: Utilizes adjustable stainless steel nozzles firing HEPA-filtered air at velocities exceeding 20–25 m/s to shear off particulate matter from cleanroom garments.
• Interlocking Door System: Electro-magnetic interlocks prevent both doors from opening simultaneously, maintaining air pressure integrity across boundaries.
• Recirculating Filtration Loop: Contaminated air is drawn through floor-level pre-filters before passing through high-efficiency HEPA filters (99.99% at 0.3µm) for continuous recirculation.

3. Pass Boxes: Material Transfer Efficiency

Pass Boxes (or Transfer Hatches) eliminate unnecessary personnel movement by providing a direct, sealed window for transferring raw materials, tools, and finished goods between areas of varying cleanliness levels.

Static vs. Dynamic Pass Boxes

• Static Pass Boxes: Ideal for material transfer between two cleanrooms of equal cleanliness classes. They feature mechanical/electronic door interlocks without active air filtration.
• Dynamic (DOP) Pass Boxes: Outfitted with an integrated Fan Filter Unit (FFU) and HEPA/ULPA filtration system. They act as a localized laminar flow area to actively clean materials during transfer between different ISO classes.

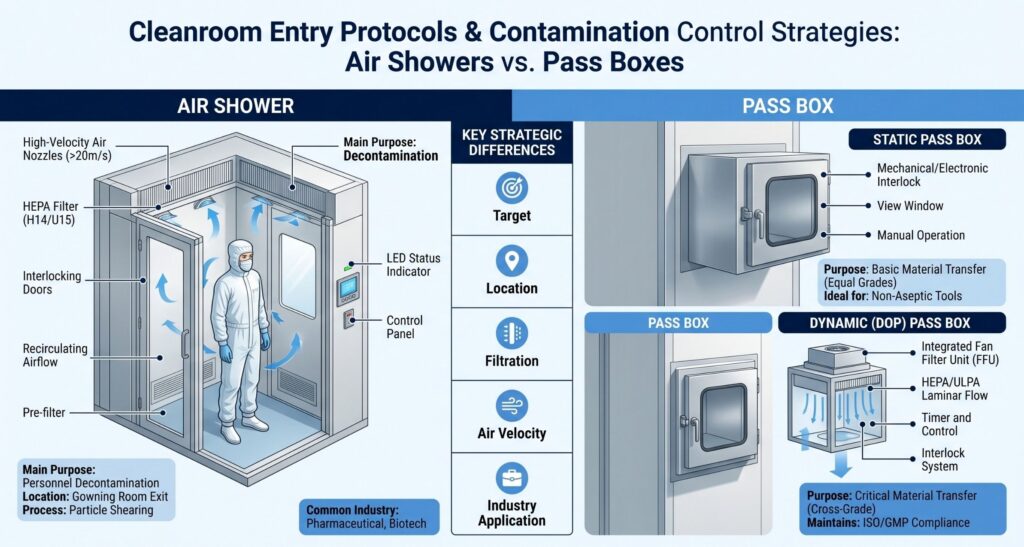

4. Technical Comparison: Air Shower vs. Pass Box

5. Optimization & Compliance Considerations for UK Facilities

When specifying cleanroom entry equipment in the UK, facility planners must adhere to EU GMP Annex 1 guidelines and ISO 14644-3 testing standards. Integrating automatic sliding doors, LED indicator lights, and differential pressure gauges ensures long-term operational efficiency and straightforward validation during regulatory audits.
